- Fabricant : RCF
- Modèle : CD350
- Catégorie : Compressions / Tweeters
- Fiche créée le : 24/02/2016

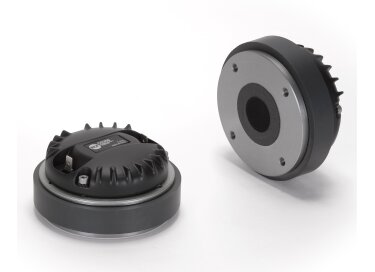

Moteur à compression 1 pouces
- 1.75-inch Diaphragm, 1-inch Exit Throat / Polyester Compression Driver
- 100W continuous program power handling
- Frequency range: 1200Hz - 20kHz
- 2-slot optimized geometry phase plug
- Polyester diaphragm
- Vented suspension system
- Compact ceramic magnet assembly
General Specifications
- Exit Throat Diameter: 25.4 / 1.0 mm/inch
- Rated Impedance: 8 Ω
- Power handling capacity continuous program1: 100 W AES
- Power handling capacity AES2: 50 W AES
- Sensitivity: 108 dB
- Frequency Range: 1200 Hz ÷ 20000 Hz
- Diaphragm Material: Polyester
- Suspension Material: Polyester
- Suspension Design: Flat
- Minimum Impedance: (at 4.5kHz) 6.5 Ω
- Voice Coil Diameter: 44.4 / 1.75 mm/inch
- Voice Coil Material: Edgewound aluminium
- Voice Coil Former Design: Straight kapton
- Number of layers: 1 - outside
- BL Factor: 6.7 T · m
- Flux Density: 1.6 T
- Phase Plug Design: 2 slots
- Phase Plug Material: Composite
- Magnetics: Ceramic
Mounting information
- Overall diameter: 102 / 4 mm/inch
- Overall height: 50 / 2.0 mm/inch
- Mounting 4 × 5 mm holes at 90°: 76.2 / 3.0 mm/inch
- Net weight: 1.2 / 2.8 kg/lbs
Shipping information
- Shipping weight: 1.4 / 3.1 kg/lbs
Source : http://www.rcf.it/fr_FR/products/precision-transducers/compression-drivers/cd350
Distribué par RCF France
»
