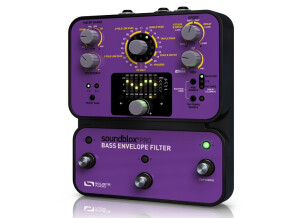

Source Audio Soundblox Bass Envelope Filter

General

• Model Number: SA126
• Bypass: Active Analog
• Controls:
  • Frequency: adjusts the center frequency of the filter
  • Sweep Range: adjusts the direction (up/down) and breadth of the filter sweep or the depth of the Hot Hand modulation
  • Speed: controls the attack and decay speed of the envelope follower or the motion-sensitivity of the Hot Hand.
  • Effects: 2 Pole Low Pass, 4 Pole Low Pass, Single Peak, Triple Peak, Peak & Notch and Phasers
• Connectors:
  • Guitar In
  • Guitar Out
  • Sensor In
  • Power: 9V DC

Technical Data

• 115dB DNR audio ADC
• 24-bit audio conversion
• 56-bit digital data path
• Power: 9V DC (negative center) or 4x AA batteries
• Current Draw: 125 mA (145 mA max with Hot Hand Wireless Adapter)
• Dimensions (LxWxH): 7 x 4 x 2 inch
• Weight: 1.25 lbs
