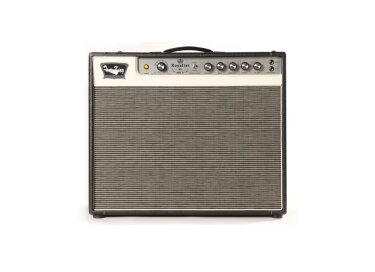

Annonces Royalist MK II Combo
Alerte nouvelle annonceForums Tone King Royalist MK II Combo
News
Images
Fiche technique
- Fabricant : Tone King
- Modèle : Royalist MK II Combo
- Catégorie : Amplis combos tout lampe pour guitare
- Fiche créée le : 21/04/2016
– 45W, 1×12 Combo
– 45W Single Channel Head
– 2×12 Speaker Cabinet
Speaker:
– 12″ Custom-Design Speaker, Made by Eminence
Preamp:
– Single Channel
– Controls: Vol, Treb, Mid, Bass, Presence
– Inputs: Bright (Plexi voiced: brighter, more gain), Deep (JTM45 Voiced: fatter, smoother)
FX Loop:
– Tube Driven Series Loop
– All Tube Signal Path (Driver and Receiver)
– Fully Buffered Series Loop
– Front Panel Effects Bypass Switch
Built-In Ironman II Compensated Power Attenuator:
– Controls: Attenuation Level
– Attenuation Steps: 0db, -3db, -9db, -15db, -24db, -36db
Line Out:
– Line out jack (on back panel)
– 1/4″ Unbalanced Line-Out for driving another amplifier, recording device, or any level input
– Adjustable level control on back panel
Calibration:
– Bias Current: Test points and adjustment control on back panel (multimeter required)
– Screen voltage – Test points and adjustment control on back panel (multimeter required)
Output Power:
– 45W RMS
Tubes:
– 3x 12AX7, 1x6v6GT, 2xEL34
Attenuator:
– Ironman II Precision Compensated Power Attenuator
– Tuned Reactive Load
– Six Attenuation Steps: 0db, -3db, -9db, -15db, -24db, -36db
– Fletcher-Munson Volume Level EQ Compensation
– Selectable 4, 8, and 16 ohm speaker impedance
Color:
– Black
FX Loop:
– Tube Driven Series Loop
– All Tube Signal Path (Driver and Receiver)
– Fully Buffered Series Loop
– Front Panel Effects Bypass Switch
Line-Out:
– Line out jack (on back panel)
– 1/4″ Unbalanced Line-Out for driving another amplifier, recording device, or any level input
– Adjustable level control on back panel
Calibration:
– Output Stage calibration available on back panel
– Bias Current: Test points and adjustment control on back panel (multimeter required)
– Screen voltage: Test points and adjustment control on back panel (multimeter required)
Dimensions:
– Combo: 24-3/16″ W x 19-3/4″ T x 11-3/4″ D
– Head: 24-1/16″ W x 9″ T x 9-5/8″ D
Weight:
– Combo: 45lbs
– Head: 28lbs
Output Stage:
– Fixed Bias (bias adjustment & test points on back panel)
Screen regulator:
– Screen voltage adjustment and test points on back panel
– Reduces sag without hardening the feel of the amp
– Provides ability to fine tune the attack, overdrive characteristics, and feel of the amp
– Extends tube life
Speaker:
– Eminence speaker, custom designed
– Modeled after vintage Celestion G12M
Speaker Cabs:
– Custom Tuning inspired by vintage 4×12 Open Back
– Tuned to retain “full stack” feel at low volume
– Baltic Birch Baffle
– Canadian Birch Body
