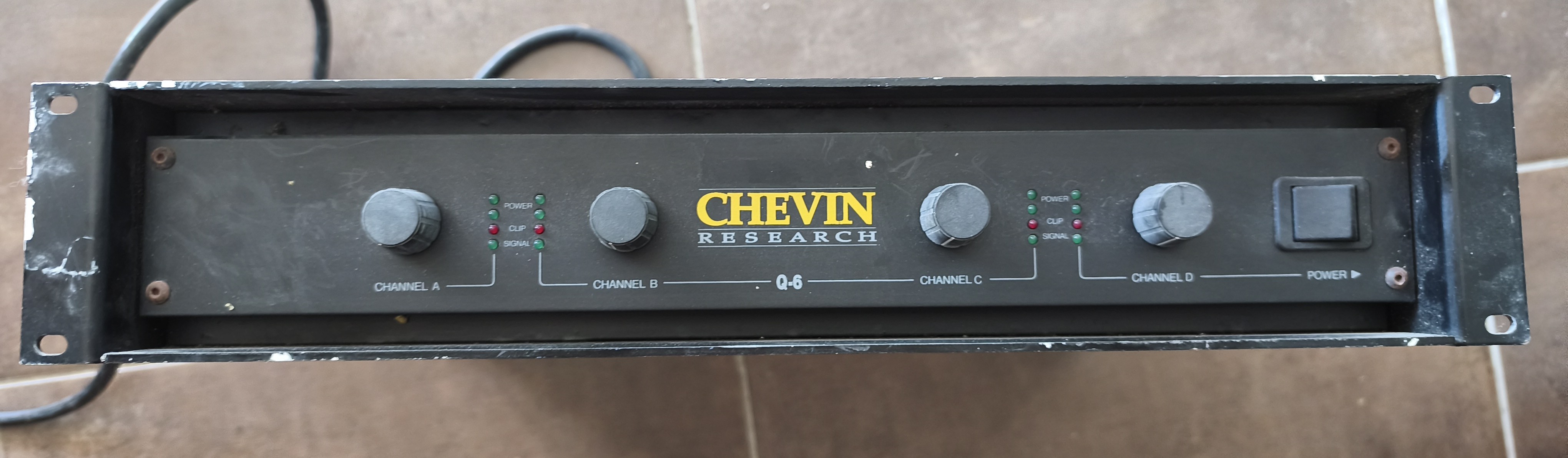

Chevin Q6

RMS Power Output
into 8W (per channel) 350 W
into 4W (per channel) 600 W
Number of Channels 4
Power Bandwidth +0db, -3db 2 Hz – 80 kHz
Slew Rate in Excess of 75 V / mS
Gain x 50
Total Harmonic Distortion
typical @ 1db below clip 0.04 %
20 kHz @ 1db below clip 0.07 %
Signal to Noise Ratio
Typical Reference Full Output, Unweighted -125 dB
Worst Case 10 Hz – 30 kHz -95 dB
Crosstalk Typical -115 dB
Damping Factor 400
Input Impedance Electronically Balanced 10 kW
CMRR (typical) -70 dB
Input Sensitivity
Reference Full Output into 4 W 1V RMS
Protection
Clipping, Load Below 2.4 ohms soft, dynamic linear
Shorted Output, DC or RF at Output immediate
Power Consumption
1/3 Power Typical Program 1.3 kVA
50/60 Hz AC in Volts (internally selectable) 220 – 240 V or 100 – 120 V
Dimensions / Weight
H X W x D / Rack Units 88 x 483 x 381 / 2U
Net Weight 12.3kg
