Neumann KH 805

News

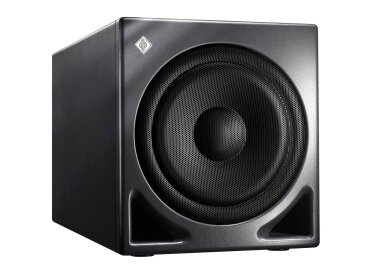

Subwoofer Neumann KH 805

Neumann complète son offre d’enceintes de monitoring actives avec le subwoofer KH 805, destiné à compléter les KH 120 ou KH 310.

27/10/15 19

Images

Fiche technique

• Fabricant : Neumann
• Modèle : KH 805
• Série : KH
• Catégorie : Caissons de basses pour le monitoring
• Poids du colis : 31.4 kg
• Fiche créée le : 27/10/2015

Powered subwoofer for studio monitoring

Acoustics
−3 dB free field frequency response	18 - 300 Hz, ± 3 dB
Pass band free field frequency response	19 - 300 Hz, ± 2 dB
Self-generated noise  level at 10 cm	< 20 dB(A)
Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m	> 40 Hz
Max. SPL In half space at 3% THD	110.7 dB SPL
Max. SPL with pink noise In half space at 1 m	112 dB SPL
Averaged between	40 and 90 Hz
Electronics
Amplifier, cont. (peak) output power (THD < 0,1 %)	160 W (200 W)
Controller design	Analog, active
Main channel crossover frequency	80 Hz
Crossover slope	24 dB/oct
Equalization: Low cut	30 Hz, 0 … −12 dB
Parametric Equalizer	Bypassable
Parametric Equalizer - Gain	+4 … −12 dB
Parametric Equalizer - Frequency	20 … 120 Hz
Parametric Equalizer - Q	1 … 8
Time of Flight adjustment delay	0 … 4.69 ms @ 80 Hz (4-step 0, 45, 90, 135), - 180° Switch
Bass Management Remote Control	Bass management on/off optional via a standard foot switch on a 6.3 mm jack
Protection circuitry	Peak and Thermo Limiters
Infrasonic filter frequency; slope	6.5 Hz; 12 dB/oct.
Analog Inputs and Outputs
Input/Output channels	2.0 or 0.1 / 2 + Daisy Chain
Impedance electrically balanced	XLR, 13 kΩ
Input sensitivity	94, 100, 108, 114 dB SPL at 1m for a 0 dBu input level
Max. input level	+24
Signal routing modes	Right, LFE 120 Hz, Wide, Daisychain
CMRR	> 56 dB @ 15 kHz
Interchannel isolation (1 kHz), level matching	−95 dB, ±0.1  dB
Dynamic range, THD+N	119 dB(A), <0. 001% (-100 dB)
Gain Control	+2 … −12 dB
Displays and indicators: power on	Green LED
- limit/clip	Red LED “Flashing”
- bass  management active	Green LED
Mains power	220 - 240 / 100 - 120 V AC (switchable)
Power consumption - Idle	14 W
Power consumption - Full output	280 W
Mechanics
Cabinet surface finish	Painted
Color: standard	Metallic Anthracite (RAL 7021)
Baffle cover	Included metal grille
Drivers	Magnetically shielded
Woofer	265 mm (10")
Product dimensions  (height x width x depth), mm (inches)	360 x 330 x 645 mm  (14 1/8" x 13" x 25 3/8")
Net volume, internal / external	41.5 l /76.6 liters
Product weight	26 kg (57 lbs 5 oz)
Packed dimensions  (height x width x depth), mm (inches)	515 x 490 x 750 mm,  (20 1/4" x 19 1/4" x 29 1/2")
Packed weight and cube	32.0 kg (70 lbs 9 oz), 0.1893 m³
Delivery includes	1x KH 805 3x Power cables (Euro, UK, USA)  1x Operating manual  1x Supplement “Getting Started Quickly”
