Fiche technique
- Fabricant : Roland
- Modèle : M-5000
- Catégorie : Consoles numériques
- Poids du colis : 54.2 kg
- Fiche créée le : 05/11/2014

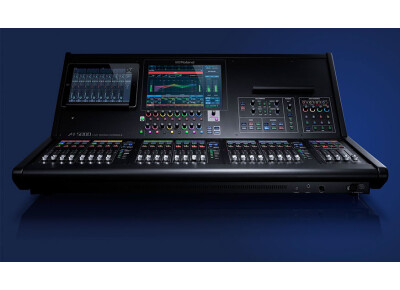

New live mixing console compatible with the Audinate Dante audio network via an expansion card.
Processing
Mixing Channels : Up to 128 audio paths selectable by : • INPUT channel • MAINS • AUX • SUBGROUP • MATRIX • MIX-MINUS • MONITOR • COMM • OSC • PHONES Inputs : Max 300 ports (96kHz) and 460 ports (48kHz, 44.1kHz) • Analog: 16 • AES/EBU: 4 (2 stereo) • REAC: 80 (40 x 2 ports) • Expansion Slots: 2 (160 @ 96kHz, 320 @ 48kHz, 44.1kHz) • FX Return: 16 (1L – 8R) • USB Audio Interface: 16 • iPad Dock Playback: 2 (1 stereo) • USB Flash Playback: 2 (1 stereo) • Oscillator (OSC): 2 • Talkback: 2
Outputs : Max 296 ports (96kHz) and 456 ports (48kHz, 44.1kHz) • Analog: 16 • AES/EBU: 4 (2 stereo) • REAC: 80 (40 x 2 ports) + Backup/Split Port • Expansion Slots: 2 (160 @ 96kHz, 320 @ 48kHz, 44.1kHz) • FX Send: 16 (1L – 8R) • USB Audio Interface: 16 • iPad Dock Record: 2 (1 stereo) • USB Flash Record: 2 (1 stereo) Internal Processing • 72 bits (fixed point, bus summing) Signal Processing • AD/DA Conversion: 24-bits • Sampling Rates: 96kHz, 48kHz, 41.1kHz
Connectors
• INPUT jacks (1 - 16): XLR-3-31 type (balanced, phantom power) • TALKBACK Mic 2 jack: XLR-3-31 type (balanced, phantom power) • AES/EBU IN jacks (1/2, 3/4): XLR-3-31 type (balanced) • OUTPUT jacks (1 - 16): XLR-3-32 type (balanced) • PHONES 1 jack: Stereo 1/4 inch phone type • PHONES 2 jack: Stereo miniature phone type • AES/EBU OUT jacks (1/2, 3/4): XLR-3-32 type • REAC ports (A, B, SPLIT/BACKUP): RJ-45 EtherCon type, SPLIT/BACKUP port supports REAC EMBEDDED POWER (PoE). • WORD CLOCK connector (IN, OUT): BNC type • RS-232C connector: DB-9 type • MIDI connector: OUT/THRU, IN
• USB port (MEMORY): USB type A • USB WLAN ADAPTOR port: USB type A • USB COMPUTER port: USB type B • LAN port: RJ45 type • DOCK CABLE port: 10-pin mini DIN type • GP I/O port: DB-25 type • FOOT SWITCH jacks (1, 2): 1/4-inch TRS phone type • LAMP jacks: XLR-4-31 type x 2, LAMP power: DC +12V/500 mA • EXTERNAL POWER DC IN jack: XLR-4-32 type (All XLR type inputs) * XLR type: 1 GND, 2 HOT, 3 COLD * Phantom power: DC +48 V (unloaded maximum), 14 mA (maximum load)
Input/Output Characteristics
Input Impedance • INPUT jacks (1 - 16): 7k ohms • TALKBACK Mic 2 jack: 4k ohms (Phantom: ON) Nominal Input Level (Variable, typical) • INPUT jacks (1 - 16): -65 to -10 dBu (Pad: OFF), -45 to +10 dBu (Pad: ON) • TALKBACK Mic 2 jack: -50 to -10 dBu Non Clip Maximum Input Level (1kHz, typical) • INPUT jacks (1 - 16): +8 dBu (Pad: OFF), +28 dBu (Pad: ON) • TALKBACK Mic 2 jack: +8 dBu Output Impedance (typical) • OUTPUT jacks (1 - 16): 600 ohms • PHONES jacks (1, 2): 45 ohms
Recommended Load Impedance • OUTPUT jacks (1 - 16): 10k ohms or greater • PHONES jacks (1, 2): 32 ohms or greater Minimum Load Impedance • PHONES jacks (1, 2): 16 ohms Nominal Output Level (typical) • OUTPUT jacks (1 - 16): +4 dBu (Load impedance: 10k ohms) Non Clip Maximum Output Level (1kHz, typical) • OUTPUT jacks (1 - 16): +22 dBu (10k ohms load) • PHONES jacks (1, 2): 500 mW + 500 mW (40 ohms load)
Other
Display • Graphic color LCD touch screen (800 x 600 pxl) • 8 graphic color organic light emitting displays (256 x 64 pxl) o Fader Bank x 7 + User Assignable Section x 1 Power Consumption • 180 W Dimensions • 934mm (W) x 725mm (D) x 346mm • 36-13/16” (W) x 28-9/16” (D) x 13-5/8” (H) Weight • 36 kg or 79 lbs 6 oz
Operating Temperature • +5 to +40 degrees Celsius • +41 to +104 degrees Fahrenheit Included Accessories • Owner's manual • Power cord • iPad Dock cable (lightning) • REAC connector cover x 3 • Ferrite core x 6 • Tablet sheet x 2 • Cover
Distribué par rolandcentraleurope
»
