Acheter neuf Tascam DA-6400
- Thomann En stock / Livré en 48h 3 777,00 €
- Music Store Pas de stock / Livré en 48h 3 777,00 €
- Bax Music Pas de stock / Livré en 17 jours 3 777,00 €
- SonoVente Pas de stock / NC 3 777,00 €
- Distri Scenes Pas de stock / Livré en 48h 3 990,00 €
Annonces DA-6400
Alerte nouvelle annonceNews
Images
Fiche technique
- Fabricant : Tascam
- Modèle : DA-6400
- Catégorie : Multipistes numériques / DtD
- Poids du colis : 6.1 kg
- Fiche créée le : 10/09/2015

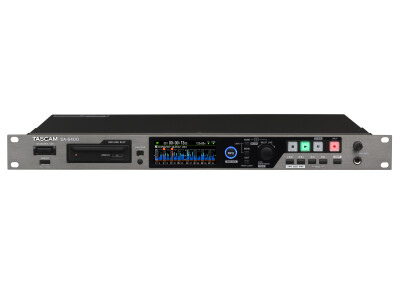

64-track digital recorder in rack format for live and broadcast applications
| Recording media | SSD Note: HDD support also planned in addition to the SSD. |
| File system | FAT32 |
| File formats | BWF(.wav) |
| Number of channels | 64(1xFs), 32(2xFs) |
| Sampling frequencies | 44.1k/48k/88.2k/96k Hz |
| Quantization bit rate | 16bit/24bit |
| Clock reference | INTERNAL, WORD IN, VIDEO IN |
| Timecode frame | 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF |
| TIME CODE IN | |
| Connector | BNC |
| Signal voltage amplitude | 0.5V to 5Vp-p |
| Input impedance | 10kΩ |
| Format | SMPTE 12M-1999 compliant |
| TIME CODE OUT | |
| Connector | BNC |
| Signal voltage amplitude | 2Vp-p |
| Output impedance | 600Ω |
| Format | SMPTE 12M-1999 compliant |
| WORD/VIDEO IN | |
| Connector | BNC |
| Input voltage amplitude (WORD) | 0.5V to 5Vp-p TTL equivalent |
| Signal voltage amplitude (VIDEO) | 1Vp-p |
| Input impedance | 75Ω +/-10% |
| Input frequency (WORD) | 48kHz |
| Input signal (VIDEO) | 24/25/29.97/30Frame(NTSC/PAL Black burst, HDTV Tri-Level) |
| WORD/VIDEO THRU/OUT | |
| Connector | BNC |
| Output voltage amplitude | 5V TTL equivalent |
| Output frequency (WORD) | 48kHz |
| ETHERNET | |
| Connector | RJ-45 |
| Protocol | 100BASE-TX, 1000BASE-T |
| RS-422 | |
| Connector | D-sub 9 pin (female, inch-standard) |
| PARALLEL | |
| Connector | D-sub 15 pin (female, inch-standard) |
| USB | |
| Connector | USB2.0 A-type |
| Protocol | USB 2.0 HIGH SPEED(480Mbps) |
| PHONES | |
| Connector | 6.3mm(1/4') standard stereo jack |
| Maximum output level | 45mW+45mW or higher |
| Power | AC100V-240V, 50/60Hz *DA-6400dp has 2 power supply inlets |
| Power consumption | 21W (At the time of IF-MA64/EX use) |
| Dimensions | 482.6(W)×44.7(H)×304.8(D)mm |
| Weight | |
| DA-6400 | 3.9kg |
| DA-6400dp | 4.0kg |
| Operating temperature | 0 to +40˚C |
| Standard accessories | TASCAM SSD, SSD media case, Power cable×1 (DA-6400), Power cable×2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner’s manual (with warranty) |
Distribué par Arbiter France
»
Autres catégories dans Enregistreurs numériques
Autres dénominations : da6400
