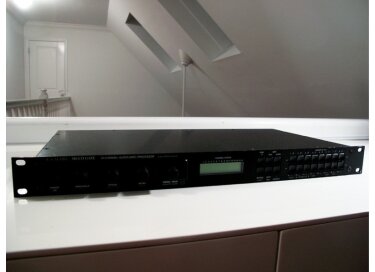

LA Audio multigate

• Fabricant : LA Audio
• Modèle : multigate
• Catégorie : Autres effets studio
• Fiche créée le : 08/07/2012

OCR sur un fichier PDF image, il est possible que certains caractères soient bizarres

SIGNAL INPUT LEVEL up to +22dBm unbalanced
INPUT IMPEDANCE 1 OKohms
SIGNAL OUTPUT LEVEL up to +21.5dBm unbalanced the output is
down from the input by 0.7dB
THD 0.04% at 1 kHz OdBm
NOISE -1 OOdB unweighed at ZERO
ATTENUATION -93dB unweighed at MAX ATTENUATION
BANDWIDTH 1 OHz - 60KHz +/-1dB
RAMP BREAKTHROUGH 91dB
CHANNEL CROSSTALK -1 OOdB @ 1KHz
MAXIMUM ATTENUATION 103dB
MUTE PROTECTION All channels are muted on power up sequence
THRESHOLD -54dB - +15dB
ATTACK 30gs to IIS
DECAY 0.1ms to IIS
HOLD 5ms to 1275ms
RANGE OdB to 80dB att enuation
KEY SOURCE Any channel 1-16 or Midi key
FUNCTION Each channel- Mute, Gate, Duck,Clocked Pan,Tremolo
REAR PANEL Mains input (with voltage selector and fuse)
Midi In, Midi Out, Midi Through
16 stereo jacks - Body=Earth, Ring=lnput, Tip=Output
FRONT PANEL Power On/Off , Threshold wheel, Att ack wheel, Decay wheel
Range/Hold wheel, Range/Hold select switch, 16 * 2
Liquid crystal display (backlight), 16 * Channel control
/assign keys & Bi-colour channel status LEDs, Play key &
LED, Edit Channel key, Edit System key, Bypass/Undo
key,
Soft Key, Midi key (switches gates to Midi receive when
LED is on)

POWER 11 Ov / 240v selectable by rotati ng fuse drawer on mains inlet. (current selecti on on
top left of drawer.) 15 Watt s power consumption.
Fuse - 200mA slow-blow for 240V operati on
400mA slow-blow for 11 OV operati on
WEIGHff 4 Kg
DIMENSIONS 483mm (width), 44mm (height), 252mm (depth) ENVIRONMENT Operati ng
temperature O o c to 35 o c
Storage temperature -10 o c to 60 o c
Humidity 90% without condensati on

Distribué par Axente
