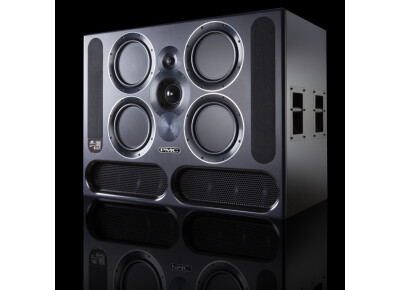

PMC QB1-A

• Extremely dynamic, low distortion and high resolution

• Vast headroom – 4825W of PMC’s Class-D power per channel

• Max SPL of 132dB @ 1m• Ultra-wide dispersion – an accurate balance over a huge listening area

• PMC’s ATL™ bass loading for linear low frequency extension to 20Hz

• Cutting-edge DSP for ultra-precise EQ & driver optimisation

• Remote control of EQ, custom EQ settings, level & input selection

• Analogue and digital inputs (96/192 kHz)

• Type Active, single cabinet reference monitor
• Usable frequency response 20Hz - 25kHz
• Maximum SPL 132dB @1metre
• Effective TM Advanced Transmission Linelength 2.7m (8.9ft)
• Crossover frequencies 380Hz & 3.8kHz
• Drive unit complement LF 4 x PMC carbon fibre/Nomex™ 250mm/10” piston driver MF PMC hand-built 75mm soft dome driver HF PMC 34mm soft dome tweeter with acoustic radiator
• Amplifier power LF 1 x 4000Wrms, MF 1 x 550Wrms, HF 1 x 275Wrms
• I/O Balanced analogue input, digital AES3 input Digital input AES3, 192kHz 24bit
• Analogue input sensitivity Adjustable +4dB to +20dBu
• EQ LF shelf +/-8dB, HF shelf +/-8dB
• Remote control Wired via RJ45,
• rotary volume -48.5dB to +15dB
• Operational voltage 115V/230V
• Cabinet dimensions H 820mm (32.2”) W 1092mm (42.9”) D 523mm (20.6”) (max depth)
• Weight 150kg (330lbs)
