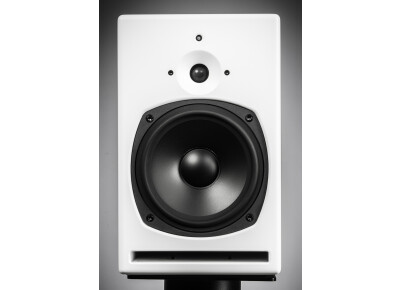

PSI Audio A21-M V4

Ajouter ce produit à

Déposer un avis

Argus 4 800,00 €

Où acheter A21-M V4 ?

Moins

Fiche technique

Créée le 08/11/2017

Nouvelle génération de l'enceinte de monitoring de deux voies de PSI pour le studio, lancée en 2017

Built in Yverdon-les-Bains, Switzerland

new driver and optimisations in the crossover filters and adaptive output impedance enable higher maximum sound pressure levels

Power RMS:	120 + 50W
Program Power:	170W
Input Impedance:	Sym, 10k Ohms
Sensitivity for 100 dB @ 1m:	0.775 V
Signal to Noise Ratio:	96 dBA
Continuous Max SPL@1m:	108 dB (single)
Input Overload:	24 Vpp
Program Max SPL@1m:	119 dB (pair)
Response at -6dB:	38 - 23000 Hz
Tolerances:	±2 dB (44Hz - 20kHz)
Distortion THD:	less than 1.4% (90Hz-12kHz)
Phase tolerances:	±45° (190Hz - 20kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB:	90° x 90° (H x V)
System:	2 Way(s)
Crossover frequency:	2.4 kHz
Woofer's dim. Ext. / Diaphragm:	Ø217 mm / Ø170 mm
Tweeter's dim. Ext. / Diaphragm:	Ø100 mm / Ø25 mm
Connectors:	1 x XLR F / 3P
Signal input:	1=GND, 2=(+), 3=(-)
Material:	MDF
Dimensions W x H x D mm:	250 x 400 x 300
Gross / Net Weight:	14.5 / 13.2 kg
Voltage:	115/230V (50-60Hz)
Consumption Standby-Quiescent-Max:	1.2 - 5 - 150 W
Mean / Max Humidity:	less than 75% / less than 90%
External Temperature:	5 - 40°C
