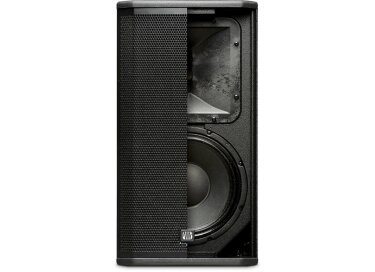

![[NAMM] Enceinte de sono PreSonus ULT10](https://img.audiofanzine.com/img/product/normal/2/5/258799.jpg?fm=pjpg&w=116&s=49f081dca196f8b7c7d9713e5ecae8b5)
Images
Fiche technique
- Fabricant : PreSonus
- Modèle : ULT10
- Série : ULT
- Catégorie : Enceintes de sono amplifiées
- Fiche créée le : 19/01/2017
Enceinte sono de deux voies amplifiée de 10 pouces
Main Components
- 10-inch custom woofer with 2.5-inch voice coil
- WorxAudio®-designed waveguide Pivot X110 horn for precise coverage
- Ultra-wide 110˚ horizontal dispersion
- Tight 50˚ vertical dispersion for longer throw
- 1,300W Class D power (150x500W continuous)
- XMAX preamp
- Onboard mixer with two combo XLR and ¼” inputs
- Direct line-input channel output
- Single summed balanced output
Controls
- Mic/Line Level
- Line/Level
- 3 operation mode presets
- FOH – normal live front of house
- DJ – Music playback
- Mon – stage wedge floor monitor
- HPF On/Off
- Front LED On/Off
Convenience Features
- Multi-angle enclosure for mains or monitor wedge application
- Defeatable front-panel LED
- Rugged, texture-painted eucalyptus plywood enclosures
- Tour-grade 16 gauge steel grille
- Comfortable ergonomic handles
- 35 mm pole sockets with 6˚ downward tilt
- Integrated M10 rigging points for suspended horizontal and vertical installation
- Locking IEC connection
Acoustic Performance |
|
|---|---|
| Configuration | 2-way biamped |
| Frequency Response (-3 dB) | 60 Hz – 18 kHz |
| Frequency Response (-10 dB) | 55 Hz – 20 kHz |
| Nominal Coverage (-6 dB) | 110° x 50° |
| Maximum Peak SPL | 130 dB |
| Crossover Frequency | 1.6 kHz |
Transducer |
|
|---|---|
| LF Transducer | 1x10" Ferrite |
| Voice Coil Diameter | 2.5” |
| HF Transducer | 1.75" compression driver |
Amplifier |
|
|---|---|
| Type | Class D |
| Total Power Output | 1,300W Peak (650 RMS) |
| LF Power | 1,000W Peak (500W RMS) |
| HF Power | 300W Peak (150W RMS) |
| Cooling | Free air convection |
| Rated THD | <0.05% (20 Hz - 20 kHz) |
| Dynamic Range | 119 dB (A-weighted) |
| Bandwidth | 20 Hz - 20 kHz |
Connections and Controls |
|
|---|---|
| Input Channels | 1 mic/line, 1 line |
| Input Connector Types | 2 combo |
| Mic Input Impedance | 1 kΩ |
| Line Input Impedance | 10 kΩ |
| Maximum Input | +22 dBu |
| Output Connector | 2 XLR (M): Mix out, Direct out |
| Controls | Mic/Line Level Line/Level Preset Select HPF On/Off Front LED On/Off |
| Indicators | DSP Preset, HPF On/Off, Front LED On/Off, Signal, Clip, Thermal |
DSP |
|
|---|---|
| Presets | FOH, MON, DJ |
| Polarity | — |
| HPF | 100 Hz, 4th-order Linkwitz-Riley |
| Bit Depth | 24-bit |
| Sample Rate | 96 kHz |
Enclosure |
|
|---|---|
| Material | Eucalyptus Plywood |
| Finish | Chemline™ polyurethane |
| Grille | Powder-coated steel |
| Dimensions (HxDxW) | 22” x 13.2” x 11.9” (559 mm x 335 mm x 302 mm) |
| Unit Weight | 44 lbs. (19.96 kg) |
| Handles | 2 (Top and Side) |
| Monitor Angle | 30° |
Safety |
|
|---|---|
| Amplifier Protection | Over-current, DC, over/under-voltage, over-temperature, high frequency |
| Transducer Protection | limiter |
Power |
|
|---|---|
| AC Power Input | 100-230V~, 50-60 Hz |
| AC Power Consumption (1/8 Power) | 150W |
Suspension Mounting |
|
|---|---|
| Rigging Points | 12 M10 |
| Mounting | 35 mm, 2-position |
