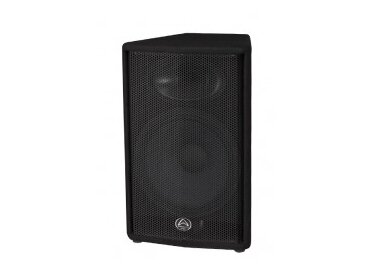

Wharfedale EVP-R15

MODEL

EVP-R15

Sensitivity

98dB

PT LOUDSPEAKER

Frequency response (+/- 10dB)

45-20KHZ

Frequency response (+/- 3dB)

50-20KHZ

Max SPL (Calculated)

130dB

Crossover Frequency

2.4kHz

Pole Mount

Dual-angle (0° or -10°) 35 mm pole socket

Handles

2 on sides

Input Connector Type

2xSpeakon+1/4" Jack

Dimensions (Unpacked)

(mm)

685 x 446.5/245.3x 432.4

(inches)

26.96'' x 17.57''/9.65'' x 17.02''

Dimensions (Packed)

(mm)

750x 500/300x 485

(inches)

29.52’’x19.68’’/11 .81’’x19.09’’

Nominal Impedance (Ohms)

8Ω

Configuration

two-way

Nominal coverage (HxV)

90° x 60°

Gross Weight (kg / lbs)

24.30kg/ 53.50lbs

Net Weight (kg / lbs)

21.58kg/ 47.50lbs

LF Type

Size

381/15"

Power (continuous RMS)

350w

Sensitivity (free field 1W @ 1M)

98dB

LF Driver D number

L01-07010187A

HF Type

Size

1.75" Titanium

Power (continuous RMS)

40W

Sensitivity (free field 1W @ 1M)

108dB

Voice coil

1.75"(44.5mm)

Waveguide Type

Elliptical

Waveguide Exit

1"

HF driver d number

L01-07010190A

Power capacity

Continuous

350W

Programme

700W

Peak

1400W
