Gibson Vintage Copper Firebird Limited
Photos
1/49

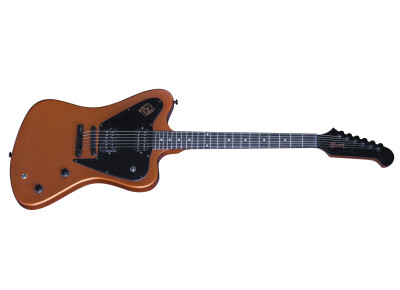

Gibson Vintage Copper Firebird Limited

Guitare de forme Flying V / Explorer / Firebird de la marque Gibson appartenant à la série Firebird

Écrire un avis ou Demander un avis
Prix public US : $1,299 incl. VAT
Présentation du produit Présentation
Avis
Comparateur de prix
Petites annonces Annonces 1 1
Forums 1 1
Actu 1 1

Annonces Vintage Copper Firebird Limited

Alerte nouvelle annonce

Forums Gibson Vintage Copper Firebird Limited

News

Gibson commercialise une nouvelle Firebird

Gibson commercialise une nouvelle Firebird

Découvrez la Vintage Copper Firebird Limited et sa finition cuivrée.
19/05/16 16

Images

Voir les 48 photos de la Gibson Vintage Copper Firebird Limited

Fiche technique

  • Fabricant : Gibson
  • Modèle : Vintage Copper Firebird Limited
  • Série : Firebird
  • Catégorie : Guitares de forme Flying V / Explorer / Firebird
  • Fiche créée le : 19/05/2016

Guitare de forme Firebird apparue en 2016 au catalogue de Gibson USA.

Top

Back

Top
Wood Species: Mahogony
Pieces: Multi
Grade: C
Binding: None

Back
Weight
Weight Relief: None
Average Weight (body only): 4.9lbs

Materials Used
Glue: Franklin Titebond 50


Body Contour
Carve: Flat
Neck
Neck
Wood Species: Mahogony
Pieces: 1

Details
Truss Rod: Firebird
Profile: Rounded
Thickness at Fret 1: 0.800"
Thickness at Fret 12: 0.850"
Average Weight: 1.09lbs

Peg Head
Type: Firebird
Inlay: Blank
Peg Head Binding: None
Silkscreen: none
Headstock Angle: 17 degrees

Neck Fit
Joint Angle: 5.0 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortis and Tenon
Adhesive: Franklin Tightbond 50
Gauges Used: Pitch Gage
Nut
Style: Nut - Black
Material: TekToid
Width: 1.695
Slots: E: 0.046"'
A: 0.036"
D: 0.026'
G: 0.016"
B: 0.011"
e: 0.009"

Fingerboard
Wood Species: Rosewood
Pieces: 1
Shade: Medium

Fingerboard Details
Radius: 12 degrees
Frets: 22
Nut/End of Board: 1.695" @ nut, 2.260" @ end of board
Scale: 24 3/4
Binding: None
Side Dots (Color): White

Fingerboard Inlays
Style: Dot
Material: Acrylic
Dimensions: 0.249"
Average Weight: 5.2 oz
Finishes

Vintage Copper


Color Code: CV
Surface Texture: 30 Sheen Satin
Filler: Walnut
Sealer: 1.0 - 1.5 mils
Top: Vintage Copper
Top Coat: Satin Lacquer / 30 Sheen, 3-4 mils
Scraped: Fingerboard sides and Nut

Electronics
Pickups Rhythm   Lead
Style: 57 Classic   57 Classic +
Winds/Coil: Screw side/Slug side: 5250/5250   5400/5400
Material of Wire (gauge): Enamel (42)   Enamel (42)
Coil Dimensions (per coil): 6.6294 cm x 1.7272 mm / 2.61" x 0.68"   6.6294 cm x 1.7272 mm / 2.61" x 0.68"
Coil Material: ABS   ABS
Coil Winding Process: Machine Wound   Machine Wound
Pole Piece Material: Nickel plated steel   Nickel plated steel
Pole Piece Position from Nut: 47.3075 cm / 18.625"   59.52998 cm / 23.437 inches
Slug Material: Nickel plated steel   Nickel plated steel
Slug Dimensions (diameter x length): 4.7498 mm x 1.24206 cm / 0.187 x 0.489"   4.7498 mm x 1.24206 cm / 0.187 x 0.489"
Magnet Material: Alnico II   Alnico II
Magnet Position from Nut: 48.26 cm / 19 "   58.7375cm / 23.125 "
Magnet Dimensions: 9.525 cm x 12.7 mm / 2.375" x 0.5"   9.525 cm x 12.7 mm / 2.375" x 0.5"
Cover: None   None
Qfactor: 6   5
ResistanceDC: 7931 Ohms   8135 Ohms
Resonant Frequency: 2692.30 Hz   2593.97 Hz



Control Pocket Assembly Lead Volume Rhythm Volume
Type: 500K Audio
Peak Voltage: 500V
Range: 0-500k
Power Rating: 1/4 watt above 100k ohms
Resistance Tolerance: +/- 20%
Minimum Resistance: 200 ohms

  Lead Tone Rhythm Tone
Type: 500K Audio
Peak Voltage: 500V
Range: 0-500K
Power Rating: 1/4 watt above 100K ohms
Resistance Tolerance: +/- 20%
Minimum Resistance: 200 ohms

Capacitors: Lead Value Rhythm Value
  .022uF
Hardware



Tuning Keys
Style: Mini Black Bass-side Grovers
Material: Zamak
Weight: 1.0 oz

Tuning Keys Details
Tuning Ratio: 14:01
Gear Type: worm
What is allowable turn: +/- 4 degrees
Plating specs: Black Chrome
Part numbers: 430-14159

String Dimensions
E: 1.1684mm / 0.046"
A: 0.9144 mm / 0.036"
D: 0.6604 mm / 0.026"
G: 0.4064mm / 0.016"
B: 0.2794mm / 0.011"
e: 0.2286mm / 0.009"

Bridge
Style: Tune-o-matic
Material: Zamac
Plating Specs: Black Chrome
Part number: 430-10119B
Weight: 2.56 oz

Dimensions of String Slots
E: 0.046"'
A: 0.036"
D: 0.026'
G: 0.016"
B: 0.011"
e: 0.009"

Tailpiece
Style: Stop Bar
Compensated: No
Material: Zamak
Plating Specs: Black Chrome
Part number: 430-10779
Weight: 2.9 oz

Output Jack
Style: 1/4" mono

Strap Buttons
Material: Anodized Aluminum
Plating Specs: Black
Part numbers: 430-19162 / 162E
Weight: .14 oz
Plastics
Pick Guard
Style: Full Faced Firebird
Part Number: 430-20781

Truss Rod Cover
Style: Black, Gold w/ Gibson
Part Number: 430-19283

Knobs
Style: Top Hat Black
Part Number: 430-19669

Dial Pointers
Yes/No: No


Control Plate(s) (Backplate Cover)
Style: Stainless steel infused polycarbonate
Part Number: 380-12916

Switch Washer
Style: None

Trim Rings
Style: None
Part Number: None
Accessories



Case
Style: Gigbag
Color: Black

Strap Locks: No
Tools: Truss Rod Wrench

Manual: Gibson USA Owner's
COA/Other: None
»
