Gibson Les Paul Fort Knox
Photos
1/14

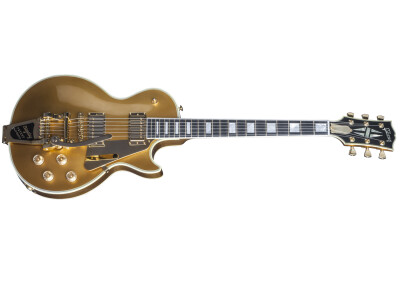

Gibson Les Paul Fort Knox

Guitare de forme LP de la marque Gibson appartenant à la série Les Paul

Écrire un avis ou Demander un avis
Prix public US : $3,999 incl. VAT
Présentation du produit Présentation
Avis
Comparateur de prix
Petites annonces
Forums 1 1
Actu 1 1

Annonces Les Paul Fort Knox

Alerte nouvelle annonce

Forums Gibson Les Paul Fort Knox

News

Gibson dévoile 3 nouvelles LP en édition limitée

Gibson dévoile 3 nouvelles LP en édition limitée

Il y en a pour tous les goûts : un modèle très bling bling, un autre avec une belle table en noyer figurée, et une mise à jour de la Voodoo.
12/04/16 11

Images

Voir les 13 photos de la Gibson Les Paul Fort Knox

Fiche technique

  • Fabricant : Gibson
  • Modèle : Les Paul Fort Knox
  • Série : Les Paul
  • Catégorie : Guitares de forme LP
  • Fiche créée le : 12/04/2016

Edition limitée à 150 exemplaires apparue en 2016 dans le catalogue Gibson.


Top
Wood Species: Maple
Pieces: 2
Grade: C
Binding: Custom 7-ply - Antiqued White

Back
Wood Species: Mahogany
Pieces: 2
Density: Low
Binding: 3-ply - Antiqued White
Weight
Weight Relief: None
Average Weight (body only): 5 lbs. 14 oz

Materials Used
Glue: Franklin Titebond 50


Body Contour
Carve: Classic


Neck
Wood Species: Mahogany
Pieces: 1

Details
Truss Rod: Les Paul
Profile: 50's
Thickness at Fret 1: 0.818
Thickness at Fret 12: 0.963
Average Weight: 635.03 g / 1.4 lbs

Peg Head
Type: SP2
Inlay: Mother of Pearl
Peg Head Binding: White - Antiqued
Silkscreen: n/a
Headstock Angle: 17 degrees

Neck Fit
Joint Angle: 5.0 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortis and Tenon
Adhesive: Franklin Titebond 50
Gauges Used: Pitch Height Gauge
Nut
Style: Nut
Material: Tektoid
Width: 1.695"
Slots: E: 0.048"
A: 0.038"
D: 0.028"
G: 0.018"
B: 0.013"
e: 0.011"

Fingerboard
Wood Species: Composite
Pieces: 1
Shade: Dark

Fingerboard Details
Radius: 12 inch
Frets: 22
Nut/End of Board: 4.3053cm / 1.695" @ nut, 5.7404cm / 2.260" @ end of board
Scale: 62.865 cm / 24.75"
Binding: Cream - Antiqued
Side Dots (Color): Black

Fingerboard Inlays
Style: Block
Material: MOP
Dimensions: 2.74cm x 2.23cm / 1.08" x .88"
Average Weight: 117.93 g / 4.16 oz

Color Code: BG
Surface Texture: Smooth / Hi Gloss 90 Sheen Lacquer
Filler: Natural
Sealer: 1-1.5 mils
Top: Bullion Gold
Top Coat: Hi Gloss Lacquer/ 90 Sheen 7-8 mils
Scraped: Fingerboard Sides, Body, Peghead and Nut


Pickups Rhythm   Lead
Style: 59 Tribute   59 Tribute
Winds/Coil: Screw side/Slug side: 5200 / 5000   5200 / 5000
Material of Wire (gauge): 42E   42E
Coil Dimensions (per coil): 2.61 x 0.68 inches   2.61 x 0.68 inches
Coil Material: ABS   ABS
Coil Winding Process: Machine Wound   Machine Wound
Pole Piece Material: Nickel   Nickel
Pole Piece Position from Nut: 18.625"   23.438"
Slug Material: Nickel   Nickel
Slug Dimensions (diameter x length): 0.187 x 0.489 inches   0.187 x 0.489 inches
Magnet Material: Alnico II   Alnico II
Magnet Position from Nut: 19"   23.125"
Magnet Dimensions: 2.5 x 0.5"   2.5 x 0.5"
Cover: Gold plated   Gold plated
Qfactor: 5.53   5.34
ResistanceDC: 7925 ohms   8140 ohms
Resonant Frequency: 2703.93   2622.86



Control Pocket Assembly Lead Volume Rhythm Volume
Type: 500k Audio 500k Audio
Peak Voltage: 500V 500V
Range: 0-500k 0-500k
Power Rating: 1/4 watt above 100k ohms 1/4 watt above 100k ohms
Resistance Tolerance: +/- 20% +/- 20%
Minimum Resistance: 200 ohms 200 ohms

  Lead Tone Rhythm Tone
Type: 500k Audio 500k Audio
Peak Voltage: 500V 500V
Range: 0-500k 0-500k
Power Rating: 1/4 watt above 100k ohms 1/4 watt above 100k ohms
Resistance Tolerance: +/- 20% +/- 20%
Minimum Resistance: 200 ohms 200 ohms

Capacitors: Lead Value Rhythm Value
  .022uF .022uF


Tuning Keys
Style: Gold Grover Locking Keystone
Material: Zamak
Weight: 1.5 oz

Tuning Keys Details
Tuning Ratio: 18:01
Gear Type: Worm
What is allowable turn: +/- 4 degrees
Plating specs: Gold
Part numbers: 430-15851, 430-15852

String Dimensions
E: 1.1684mm / 0.046"
A: 0.9144 mm / 0.036"
D: 0.6604 mm / 0.026"
G: 0.4064mm / 0.016"
B: 0.2794mm / 0.011"
e: 0.2286mm / 0.009"

Bridge
Style: Tune-O-Matic
Material: Zamak
Plating Specs: Gold
Part number: 430-10123
Weight: 72.5748 g / 2.56 oz

Dimensions of String Slots
E: 1.4732mm / 0.058"
A: 1.2192mm / 0.048"
D: 0.9652mm / 0.038"
G: 0.7112mm / 0.028"
B: 0.4826mm / 0.019''
e: 0.3556mm / 0.014"

Tailpiece
Style: Bigsby tailpiece
Compensated: No
Material: Aluminum
Plating Specs: Gold
Part number: 430-11078G
Weight: 360.03 g / 12.7oz

Output Jack
Style: 1/4" mono

Jack Plate
Style: LP Square - Gold
Material: Plated steel
Part Number: 430-19459
Weight: 76.54 g / 2.7oz

Strap Buttons
Material: Brass
Plating Specs: Gold
Part numbers: 430-19161 / 430-19161E
Weight: 4.0 g / 0.14oz


Pick Guard
Style: Gold plated Pickguard and Black 5-ply removeable pickguard included in case
Part Number: 380-20818 / 380-20817

Truss Rod Cover
Style: Gold plated brass bell
Part Number: 430-19654

Knobs
Style: Gold speed knobs
Part Number: 430-19264

Dial Pointers
Yes/No: No




Control Plate(s) (Backplate Cover)
Style: Gold plated cover
Part Number: 430-20016

Control Plate(s) (SwitchPlate Cover)
Style: Gold plated cover
Part Number: 430-20017

Switch Washer
Style: None

Trim Rings
Style: Gold plated black humbucker Low/High
Part Number: 440-13012 on 440-14003, 440-13012 on 440-14004

Case
Style: Hard Shell
Color: Brown

Strap Locks: None
Tools: Truss rod wrench

Manual: Gibson USA's owners
COA/Other: Gold plated Pickguard and Black 5-ply removeable pickguard included in case
»
