Annonces Les Paul Joe Bonamassa "Tomato Soup Burst" Signature
Alerte nouvelle annonceNews
Images
Fiche technique
- Fabricant : Gibson
- Modèle : Les Paul Joe Bonamassa "Tomato Soup Burst" Signature
- Série : Joe Bonamassa
- Catégorie : Guitares de forme LP
- Fiche créée le : 09/12/2015

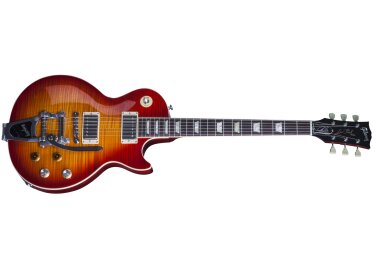

Les Paul Joe Bonamassa "Tomato Soup Burst" Signature Limited Edition for 2016.
- Tuners: Press in bushings vintage style keystone tuners
- Nut: Nylon nut
- Serial number: Custom "Bonamassa" Serial Number from 01 to 50
- Top and color: New Tomato Soup Burst color on a AAA flamed maple top
- Pickguard: Each cream pickguard is hand-signed by Joe Bonamassa himself
- Pickups: Seymour Duncan 52-Nc and 53-Nc
- Tail piece: B7 Bigsby with vibramate mounting kit
- Knobs: Joe's signature knobs arrangement
- Wiring: Hand-wired with orange drops capacitors
- Case: Each case is hand-signed and numbered by Joe Bonamassa
|
Top |
|
| Wood Species: | MAPLE |
| Pieces: | 2 |
| Grade: | AAA |
| Binding: | CREAM |
| Back | |
| Wood Species: | MAHOGANY |
| Pieces: | 1 or 2 |
| Density: | LOW |
| Binding: | NONE |
| Weight | |
| Weight Relief: | 9 HOLE |
| Average Weight (body only): | 6 lbs 6.3 oz |
| Materials Used | |
| Glue: | Franklin Titebond 50 |
| Body Contour | |
| Carve: | ENHANCED |
| Neck | |
| Wood Species: | MAHOGANY |
| Pieces: | 1 |
| Details | |
| Truss Rod: | STANDARD 18.125" |
| Profile: | SLIM TAPER |
| Thickness at Fret 1: | .800" |
| Thickness at Fret 12: | .875" |
| Average Weight: | 1.2 lbs |
| Peg Head | |
| Type: | SP1-A |
| Inlay: | MOP GIBSON |
| Peg Head Binding: | NONE |
| Logo: | MOTHER OF PEARL "GIBSON" |
| Silkscreen: | GOLD "LES PAUL MODEL" |
| Headstock Angle: | 17 DEGREES |
| Neck Fit | |
| Joint Angle: | 5.0 degrees |
| Joint Angle Tolerance: | 0 deg 0 min 15 sec |
| Type: | Mortis and Tenon |
| Adhesive: | Franklin Tightbond 50 |
| Gauges Used: | Pitch Gage, Alignment Gauge |
| Nut | |
| Style: | Nut |
| Material: | Nylon |
| Width: | 1.695 |
| Slots: | E: 0.046"' A: 0.036" D: 0.026' G: 0.016" B: 0.011" e: 0.009" |
| Fingerboard | |
| Wood Species: | ROSEWOOD |
| Pieces: | 1 |
| Shade: | DARK |
| Fingerboard Details | |
| Radius: | 12" |
| Frets: | 22 |
| Nut/End of Board: | 1.695" @ nut, 2.260" @ end of board |
| Scale: | 24.75 |
| Binding: | CREAM |
| Side Dots (Color): | BLACK |
| Fingerboard Inlays | |
| Style: | TRAPEZOIDS |
| Material: | ACRYLIC |
| Dimensions: | Large: .660"w x 1.160"t Small: .245"w x 1.565"t |
| Average Weight: | 0.26 lbs |
| Pickups | Rhythm | Lead | |
|---|---|---|---|
| Style: | SEYMOUR DUNCAN 52-Nc | SEYMOUR DUNCAN 53-Nc | |
| Winds/Coil: Screw side/Slug side: | Proprietary | Proprietary | |
| Material of Wire (gauge): | Proprietary | Proprietary | |
| Coil Dimensions (per coil): | 2.61 x 0.68 inches | 2.61 x 0.68 inches | |
| Coil Material: | Proprietary | Proprietary | |
| Coil Winding Process: | Proprietary | Proprietary | |
| Pole Piece Material: | Proprietary | Proprietary | |
| Pole Piece Position from Nut: | Rthy dim: 18 5/8 inches | Treb dim: 23 7/16 inches | |
| Slug Material: | Proprietary | Proprietary | |
| Slug Dimensions (diameter x length): | Proprietary | Proprietary | |
| Magnet Material: | Proprietary | Proprietary | |
| Magnet Position from Nut: | Rhty dim: 19 inches | Treb dim: 23 1/8 inches | |
| Magnet Dimensions: | Proprietary | Proprietary | |
| Cover: | Nickel | Nickel | |
| Qfactor: | Proprietary | Proprietary | |
| ResistanceDC: | Proprietary | Proprietary | |
| Resonant Frequency: | Proprietary | Proprietary | |
| Tonal & Resonant Advancements: | Joe Bonamassa Signature Pickups | ||
»
