iConnectivity iConnectAUDIO2+
+

iConnectivity iConnectAUDIO2+

  • J'aime
  • Tweet
  • Pin it

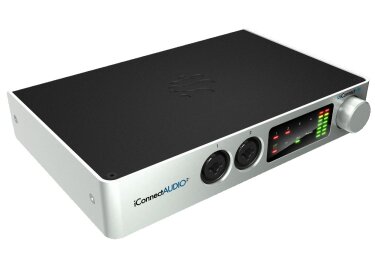

iConnectAUDIO2+, Interface audionumérique USB de la marque iConnectivity.

Neuf à partir de 196 € Prix moyen : 197 €

Fiche technique iConnectivity iConnectAUDIO2+

  • Fabricant : iConnectivity
  • Modèle : iConnectAUDIO2+
  • Catégorie : Interfaces audionumériques USB
  • Fiche créée le : 21/01/2016

Multihost 2-in 6-out audio and MIDI USB interface with 2 mic preamps and flexible routing, for Mac, Windows and iOS devices

  • Multi-host Device ports – use with one computer device plus an iOS device at the same time, or up to two computer devices (Mac/PC) at the same time
  • Audio passThru™ routes audio digitally between computer devices
  • 2 XLR ¼” TRS combo analog inputs, each with individual +48V phantom power toggle and impedance switching
  • 4 ¼” TRS balanced analog outputs
  • ¼” Headphone output with independent mix
  • 1 X 1 MIDI DIN in/out
  • iConfig software (Mac/PC/iOS) makes it simple to set up filtering/routing/mixing/merging scenes – which are also stored in flash memory on the device
  • High-resolution audio - up to 24-bit/96kHz AD/DA conversion
  • USB audio and MIDI Class-Compliant
  • Capacitive touch display and control surface
  • Bus powered
  • Charges an iOS device when used with optional power supply (not included)
Microphone Inputs Line/Instrument Inputs (Balanced) Line/Instrument Inputs (Single Ended Input)
  • Gain: 0- 60 dB (1 dB steps)
  • Frequency Response: 20 Hz - 20kHz
  • SNR: 104dB (1kHz, 1 Vrms, BW: 22Hz-22kHz, A-weighting, Lowest Gain)
  • THD+N: -90 dB (1kHz, 1 Vrms, BW: 22Hz-22kHz, A-weighting, Lowest Gain)
  • Attenuator: 20 dB (fixed)
  • Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
  • SNR: +104 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -88 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • Maximum input level: 8 Vrms, 20 dBu, 18 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR=116 dB)
  • Attenuator: 20 dB (fixed)
  • Impedance: 800 kOhms (Hi-Z), 45 kOhms (Lo-Z)
  • SNR: +104 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -88 dB (1kHz, 2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • Maximum input level: 8 Vrms, 20 dBu, 18 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR=116 dB)
Line Outputs  Headphone Digital Performance
  • Maximum Output Level: 12 dBu, 9.8 dBV, 3.1 Vrms
  • Frequency Response (flatness): 20 Hz - 20kHz (+/-0.1dB)
  • SNR: +98 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -98 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • Frequency Response (flatness): 20 Hz - 20kHz (+/-0.1dB)
  • SNR: +100 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -99 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • Power output into 30 Ohms per channel: 34 mW per channel
  • 24-bit resolution
  • A-D Dynamic Range:102dB (fs= 48kHz, 20kHz - 20kHz, A-Weighting, 24bit)
  • D-A Dynamic Range:104dB (fs= 44.1kHz, 20kHz - 20kHz, A-Weighting, 24bit)
  • Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
