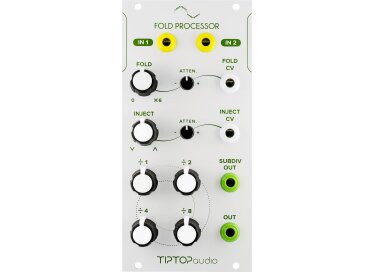

Tiptop Audio Fold Processor

The circuit is based on a classic diode design that adds odd harmonics by folding the incoming signal, followed by subdivided square waves.

The wave folder creates new waveforms from the standard sine, triangle, sawtooth and square waves, has a dedicated output jack and CV input with an attenuator making it very easy to create beautifully animated folding sounds. Adjustable voltage controlled Inject alters the bias point creating an even wider palette of sounds.

The subdivide generator squares the fold output generating 4 more sounds spaced one octave apart, each with its own gain knob and mixed to the Subdivide output jack. Mixing the four can create anything from discordant square wave swarms to sweet harmonic oscillator stacks, from a stable square version of the folded wave to freaky PLL like glitched slides.

Size: 12HP

Depth: 42mm

Power: +12V 60ma / -12V 55ma
