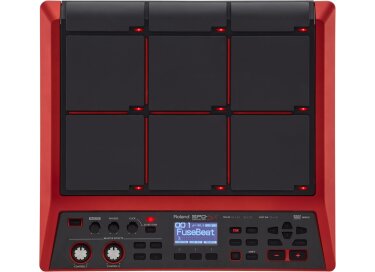

Roland SPD-SX Special Edition

PadsBuilt-in pads: 9 (with LED indicators)
* Two external trigger inputs are provided, allowing you to connect up to four Pads.

Maximum Polyphony20 voices
* Maximum polyphony becomes 16 voices according as an operating state.

Number of Recordable Wave Data10,000
* Including preload wave data.

Sampling Time (Total time for all wave data)Approx. 25 hour in stereo (50 hour in mono)

* Since the internal memory included with the SPD-SX Special Edition contains preload data, the available sampling time will be less than the time above.

Data Format16-bit linear PCM (WAV/AIFF)

Sampling Frequency44.1 kHz

Kits100Kit

Chain8 chains (20 steps per chain)

EffectsMaster Effects (21 types)
Equalizer
Kit Effect 1 (20 types)
Kit Effect 2 (20 types)

DisplayGraphic LCD 128 x 64 dots

ConnectorsPHONES jack (Stereo 1/4-inch phone type)
MASTER OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
AUDIO IN jacks (L/MONO, R) (1/4-inch phone type) (with LINE-MIC GAIN control)
TRIG IN jacks (1/2, 3/4) (1/4-inch TRS phone type)
FOOT SW jack (1/2) (1/4-inch TRS phone type)
MIDI connectors (IN, OUT)
DC IN jack
COMPUTER connector
USB MEMORY connectorInterfaceHi-Speed USB (USB-MIDI, USB-AUDIO, USB Mass Storage Class, USB Flash Drive)

Power SupplyDC 9 V (AC Adaptor)Current Draw600 mA

AccessoriesAbleton Live Lite Serial Number Card
CD-ROM (SPD-SX Wave Manager, USB driver, preload wave data)
Owner's Manual
AC AdaptorOptions (sold separately)Pads (PD series, PDX series)
Cymbals (CY series)
Kick Triggers (KD series, KT series)
Pad Stand (PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H)
Pedal Switch (DP-2)
Footswitch (BOSS FS-5U, FS-6, FS-7)
Personal Drum Monitor (PM-10)
Y cable (PCS-31L)
USB Flash Memory

SIZE AND WEIGHT

Width364 mm
14-3/8 inches

Depth331 mm
13-1/16 inches

Height94 mm
3-3/4 inches

Weight (excluding AC Adaptor)2.5 kg
5 lbs 9 oz
