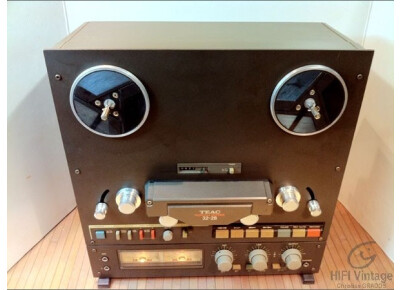

Teac 32-2B

• Fabricant : Teac
• Modèle : 32-2B
• Catégorie : Multipistes analogiques
• Fiche créée le : 23/01/2014

SPECIFICATIONS

Track System: 1 /2 Track, 2 Channel Stereo

Head System: 3 Heads: Erase, Record & Reproduce

Reel Size: 10-1/2" (267 mm) and 7" (178 mm)

Tape Speed: 15 ips (38 cm/s) and 7-1/2 ips (19 cm/s) (±0.5%)

Motors:

Capstan Motor: DC Brush Motor with FG Servo

Reel Motor: 2 DC Slotless Motors

Wow and Flutter: 0.02% at 15 ips 0.04% at 7-1/2 ips (NAB Weighted)

Frequency Response (Overall):

30-30,000 Hz (±3 dB, 40-20,000 Hz) at 15 ips, OVU

30-28,000 Hz (±3 dB, 40- 20,000 Hz) at 7-1 /2 ips, -10 VU

Signal-to-Noise Ratio (Overall):

63 dB (3% THD Level, Weighted), NAB Equalization

65 DB (3% THD Level, Weighted), IEC Equalization

Harmonic Distortion (Overall): 0.6% at 1,000 Hz normal operating level

Stereo Channel Separation: 50 dB at 1,000 Hz

Fast Winding Time: 100 seconds for 1,800 feet (550 m)

Inputs: Line: 60 mV, 50 kohms, Microphone: 0.25 mV/-72 dB (200 ohms or more)

Outputs: Line: 0.45V for load impedance of 10 kohms or more, Headphones: 8 ohms/0.3 mV

Reproduce Equalization: 15 ips 3,180 μs + 50 μs (NAB) 3,180 μs + 35 μs (IEC), 7-1 /2 ips 3,180μs+50μs

Bias Frequency: 100 kHz

Operating Position: Vertical, horizontal, angled

Power Requirements:

100/117 /220/240V, AC 50/60 Hz, 83W (General export model)

220V AC 50 Hz, 83W (Europe model)

240V AC 50 Hz, 83W (U.K./Australia model)

117V AC 60 Hz, 83W (U.S.A./Canada model)

Weight: 20 kg, (44-1/16 lbs) net

Dimensions:  W x H x D 432 x 454 x 270 mm
