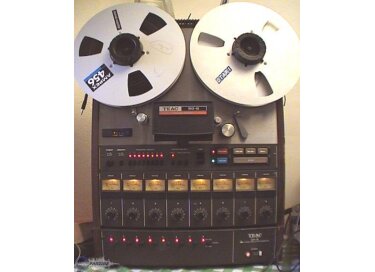

Teac 80-8

SPECIFICATIONS

TAPE WIDTH: 1/2 inch (12.7 mm)

FORMAT: 8-track, 8-channel

REEL SIZE: (10.5") 26.5 cm maximum, NAB hub only

TAPE SPEED: (15 ips) 38 cm/s

LINE INPUT: -10dB (0.3V) Impedance: greater than 20 k Ohms, unbalanced

LINE OUTPUT: -10 dB (0.3V) Load impedance: greater than 10 k Ohms, unbalanced

RECORD LEVEL: O VU referenced to 3 dB above

CALIBRATION: 185 nWb/m of tape flux, adjustable

SPEED ACCURACY: ± 0.5% deviation from (15 ips) 38 cm/s

WOW and FLUTTER: 0.04% RMS (NAB), weighted 20.06 peak (ANSI), weighted

Measured with flutter test tape.

STARTING TIME: less than 0.5 sec.

FAST WIND TIME: 120 sec. for 2400 ft. of tape

OVERALL FREQUENCY RESPONSE, SYNC : 40 HZ - 18 kHZ, +-3 dB

SIGNAL to NOISE : 65 dB weighted, 60 dB unweighted,

DISTORTION referenced to 3% T.H.D. level (10 dB above O VU) at 400 Hz: 1 % at 400 Hz, O VU ;

T.H.D. overall: 3% at 10 dB above O VU

CROSSTALK : greater than 45 dB at 400 Hz

ERASURE: greater than 65 dB at 1 kHz, +10 VU reference

POWER REQ.: 1 17V, 60 Hz, 200 W (U.S.A. Model); 220V, 50/60 Hz, 200 W (Europe Model);

240V, 50/60 Hz, 200 W (U.K./Australia Model)

DIMENSIONS overall: (17 1/2" (W) x 21" (H) x 12"(D)) [445 (W) x 535 (H) x 305 (D)mml

WEIGHT: (76 Ibs.) 35kg LO
