Source Audio Soundblox Pro Multiwave Distortion

General

• Model Number: SA-140
• Bypass: Active Analog
• Number of Presets: 6

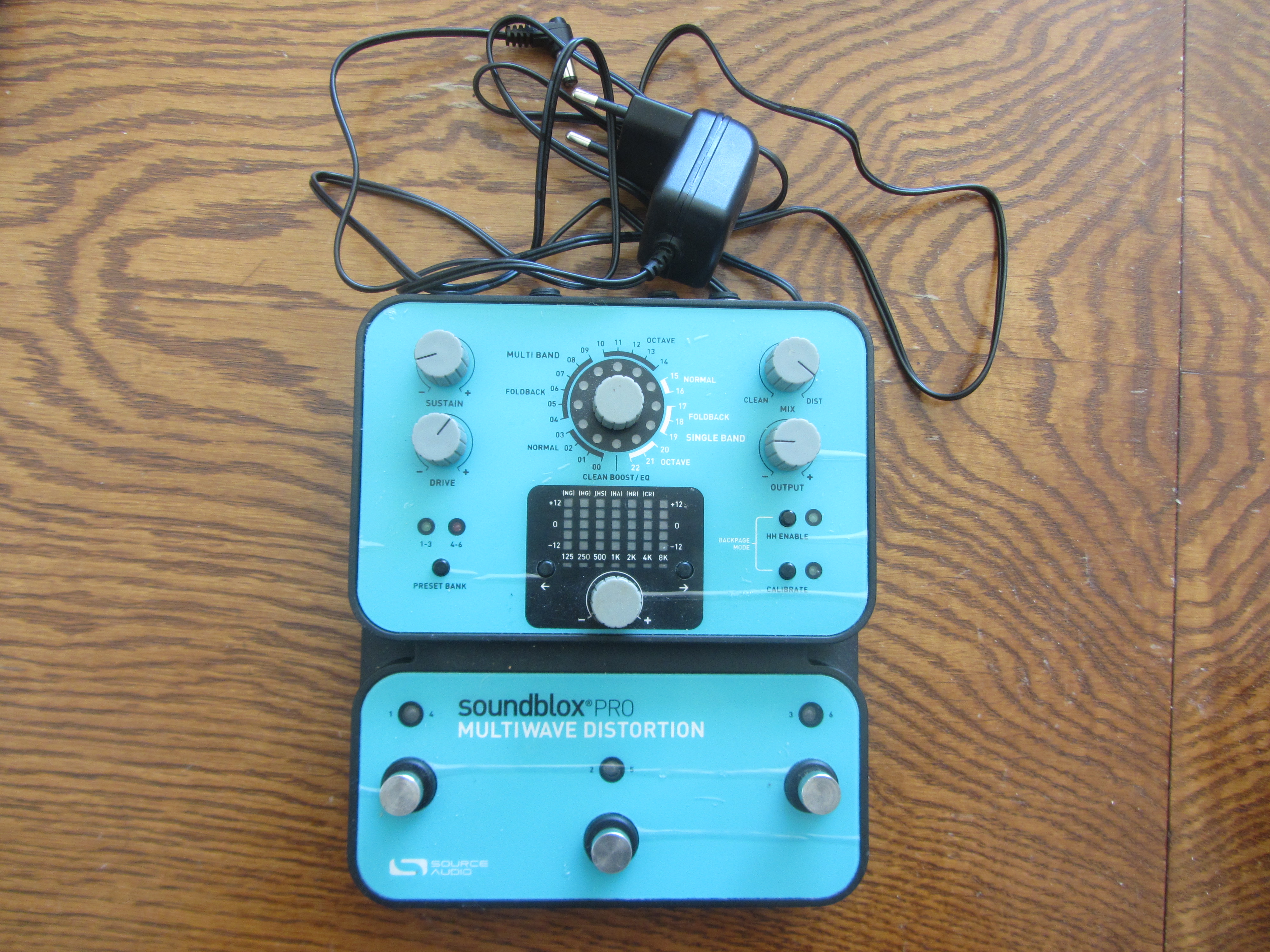

• Controls:
  • Sustain: adjusts input gain to the front-end compressor
  • Drive: adjusts the amount of distortion gain applied to the signal
  • Mix: adjusts the mix of distorted signal to clean signal
  • Output: adjusts the output level of the effect
  • Effects:
    • Multi Band: 1 Clean/Boost EQ, 4 Normal, 6 Foldback, 5 Octave
    • Single Band: 2 Normal, 3 Foldback, 3 Octave
  • Equalizer 7-Band: 125, 250, 500, 1k, 2k, 4k, 8k Hz (+/- 12 dB)
• Buttons: Preset Bank, HH enable, Calibrate
• Footswitches:
  • Left: Preset 1 or 4
  • Middle: Preset 2 or 5
  • Right: Preset 3 or 6

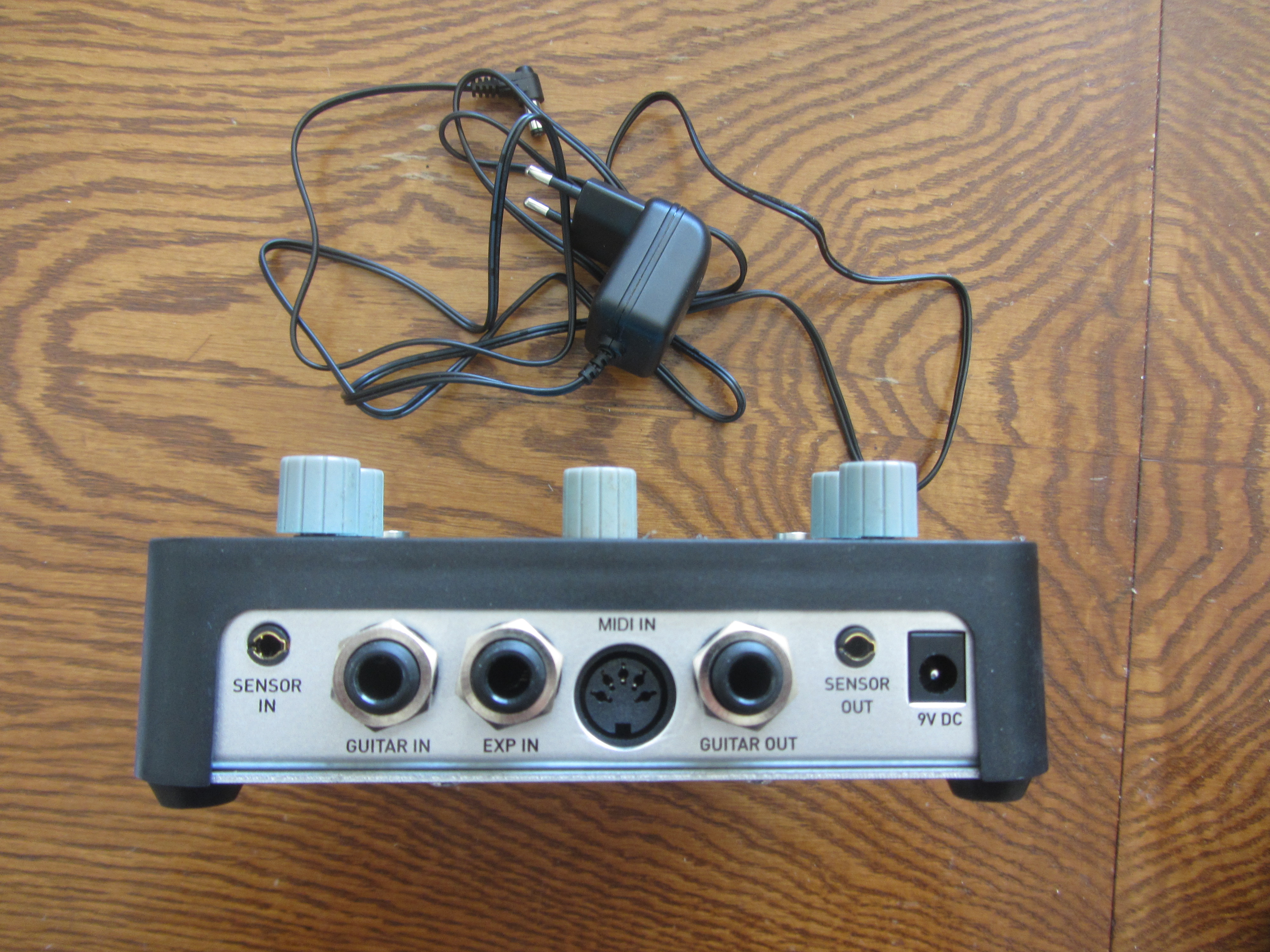

• Connectors:
  • Inputs:
    • Guitar In
    • EXP In for use with an expression pedal
    • Sensor In to connect the Hot Hand
    • MIDI In: MIDI program and continuous control input. Connect to a MIDI output with a standard MIDI cable
  • Outputs:
    • Guitar Out to plug the next pedal or the amp
    • Sensor Out allows daisy chaining of multiple Hot Hand devices
  • Power: 9V DC

Technical Data

• 24 bit A/D- D/A converters
• 56-bit processing
• Power: 9V DC (negative center)
• Current Draw: 110 mA (145 mA max with Hot Hand Wireless Adapter)
• Dimensions (LxWxH): 7 x 6 x 2 inch
• Weight: 1.75 lbs
