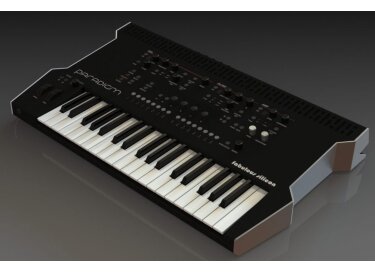

Fabulous Silicon Paradigm

Paradigm is uniquely capable of dynamically restructuring its own circuitry in real-time, thanks to array of four “Apex” programmable analog chips by Anadigm Corporation.

• Analog Monophonic Synthesizer
• 3x Voltage Controlled Oscillators with PWM, Oscillator Sync (1->2) and Frequency Modulation
• 1x Multimode filter, 12db or 24db rolloff, Hi-Pass, Lo-Pass, Band-Pass, and Bandstop
• Noise Generator (Pink or White)
• Polyphonic Hybrid Synthesizer
• 2x Digital Wavetable Oscillators per note
• 1x Multimode filter per note, 12db or 24db rolloff, Hi-Pass, Lo-Pass, Band-Pass, and Bandstop
• Stereo Analog Multimode Filter + Overdrive Amp

Specifications

• Microcontroller / FPU: 216MHz Renesas SH726B RISC Processor
• Analog Signal Processors: Anadigm Apex AN231E04 x 4
• MIDI: In / Out / Thru
• CV:
• Digital Effects: Chorus, Phaser, Flanger, Reverb, Delay
• Keyboard: Full size semi-weighted three octaves (37 Keys)
• Bluetooth
• USB: Type B for MIDI-over-USB and Firmware Updates
• Optical S/Pdif (In and Out)
• Power: 18 VAC / 2A
