Fiche technique

Créée le 24/08/2016
Ultra compact 800 W bass amp head



Power Output:
225 watts-16 Ohms, 450 watts-8 ohms, 800-watts, 4 ohms (2 Ohm use possible, but may experience clipping at high volume.)

AC Power Req.:
100–240Vac, 50–60 Hz, 250 W typical, 1000W peak.

Signal Connections:
PASSIVE INPUT: ¼" mono (full gain), 2 meg
ACTIVE INPUT: ¼" mono (-10dB gain), 30K
LINE INPUT: XLR 10K balanced, 1V full scale.
LINE OUTPUT: XLR, quasi-balanced, 400 ohms, 1V full scale

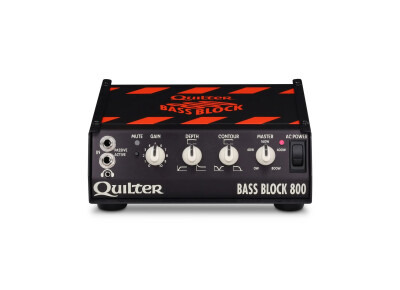

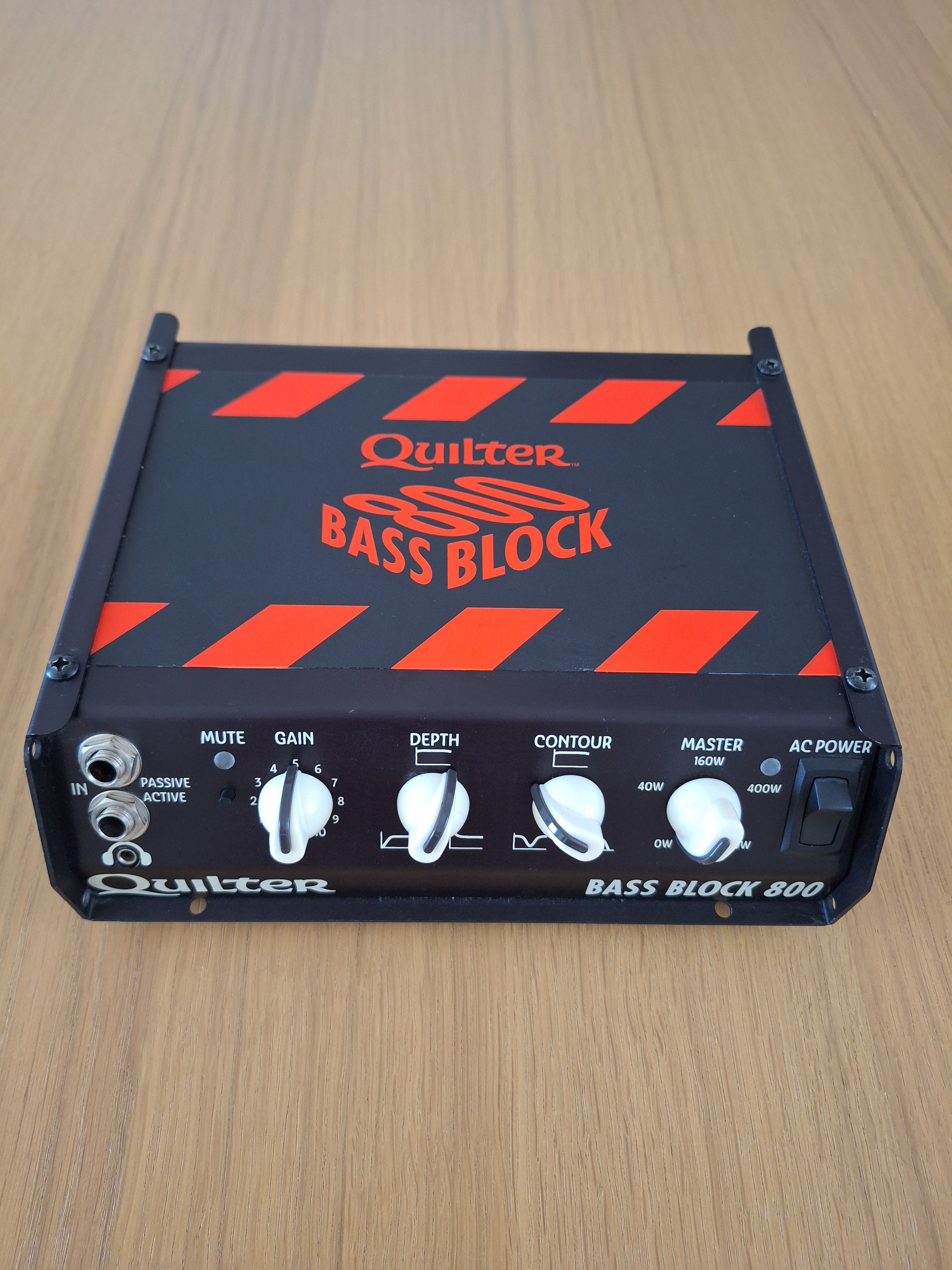

Controls:
GAIN CONTROL MUTE BUTTON (with red warning LED)
DEPTH CONTROL (100Hz Hi-Q bass control)
CONTOUR CONTROL (Low-mid scoop, flat, treble cut)
MASTER CONTROL (adjusts peak power from 0 to 800W)
PILOT LIGHT (“winks” if the amplifier is driven into thermal limiting)

Speaker Connections:
4-8 ohms, 90V, 25A peak
Dual ¼” jacks, 8 ohms each
Speakon (2 wire) 4-8 ohms.

Headphone Out:
3.5mm mini-jack, 20 ohms per side, 2V peak.

Dimensions:
H x W x D 8.5”(218mm) x 7.5” (190mm) x 3” (76mm)

Weight:
3.7 lbs (2kg)
»
