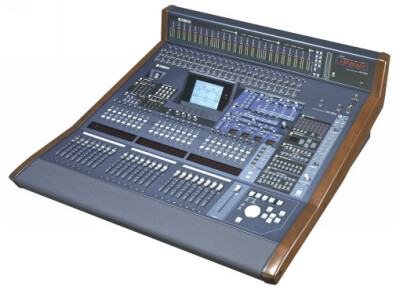

Yamaha DM2000VCM

Console numérique de la marque Yamaha

Écrire un avis ou Demander un avis

Présentation du produit Présentation

Avis

Comparateur de prix

Petites annonces

Forums 7 7

Sommaire - accès rapide

Images (77)
Fiche technique (1)

Annonces DM2000VCM

Alerte nouvelle annonce

Forums Yamaha DM2000VCM

Images

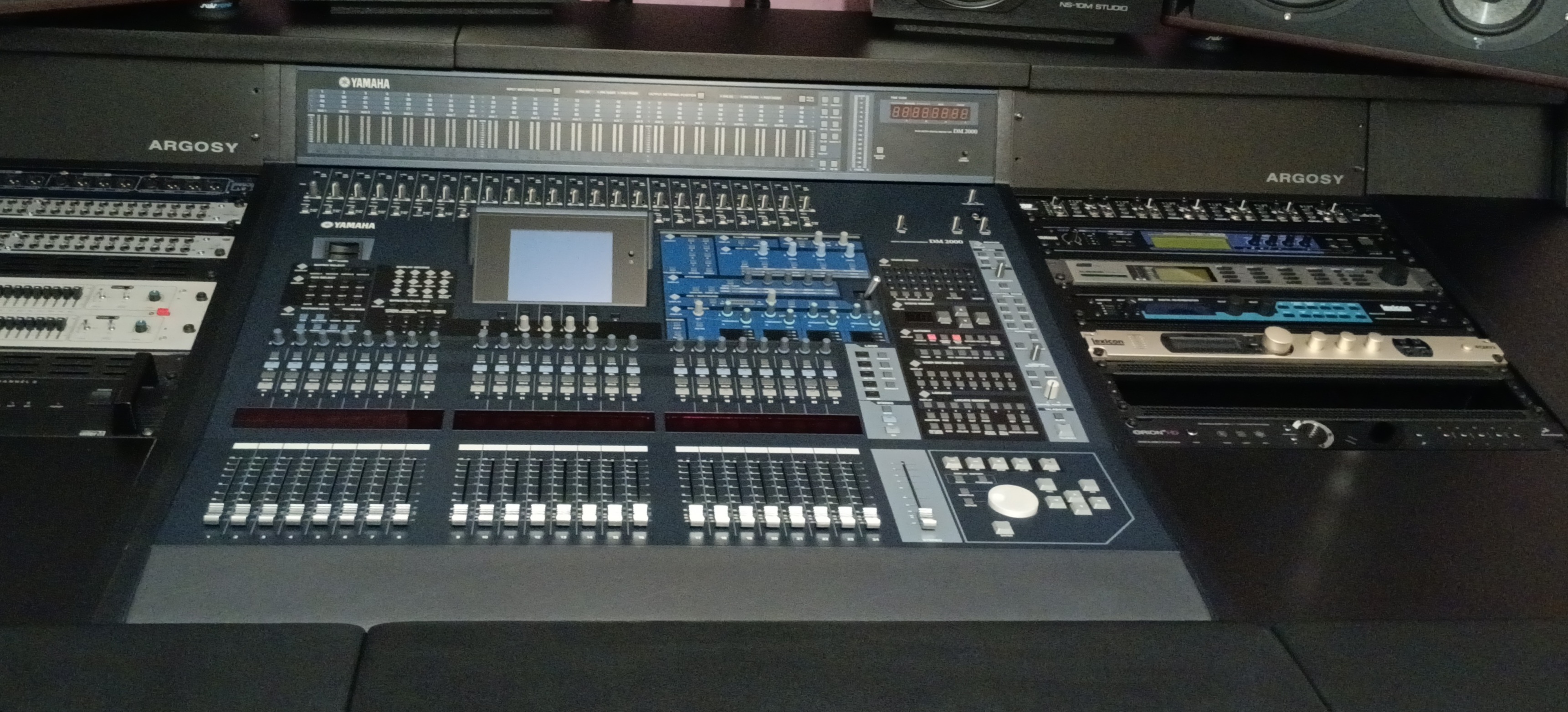

Voir les 77 photos de la Yamaha DM2000VCM

Fiche technique

Fabricant : Yamaha
Modèle : DM2000VCM
Catégorie : Consoles numériques
Fiche créée le : 07/08/2013

Outline

Mixing capability

Mixing channels

GROUP

AUX

MAIN

MATRIX

Input channel functions

Output channel functions

On-board processors

I/O

Mic inputs

Phantom power

Line inputs

AD converter

Line outputs

DA converter

Digital I/O

Expansion slots

Control and others

General specifications

Internal processing

Sampling frequency rate

Internal

External

Signal delay

Total harmonic distortion

Frequency response

Dynamic range

Hum & noise level

Equivalent input noise

Residual output noise

Crosstalk

Power requirements

Power consumption

Dimensions

Net weight

Accessories

	DM2000VCM
Outline
Mixing capability	Mixing channels	96
GROUP	8
AUX	12
MAIN	Stereo
MATRIX	4 Stereo
Input channel functions	Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan
Output channel functions	Attenuator, 4-band PEQ, Compressor, Delay
On-board processors	8x SPX multi effectors, 6x 31-band GEQs
I/O	Mic inputs	24
Phantom power	+48V DC; ON/OFF per channel
Line inputs	2x 2tr in
AD converter	24-bit; 128-time over sampling
Line outputs	Stereo output, Studio monitor output, 2x C-R monitor output, 8x Omni output
DA converter	24-bit; 128-time over sampling
Digital I/O	3x 2tr in/out, Cascade I/O
Expansion slots	6x Mini-YGDAI (16-in/16-out)
Control and others	Vers hôte (USB/série), contrôle (GPI), télécommande, MIDI, entrée de code temporel (SMPTE/MTC), clavier, entrée Word Clock, 2x sortie Word Clock, fente Smart Media, 2x lampe sur le pont de compteur en option MB2000
General specifications
Internal processing	32bit, Accumulator: 58bit
Sampling frequency rate	Internal	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
External	44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
Signal delay	Less than 2.3ms (@48kHz), Less than 1.2ms (@96kHz)
Total harmonic distortion	Less than 0.05% (20Hz-40kHz)
Frequency response	0, +0.5, -1.5dB 20Hz-40kHz
Dynamic range	DA: 110dB; AD+DA: 108dB
Hum & noise level	Equivalent input noise	-128dBu
Residual output noise	-94dBu
Crosstalk	-80dB
Power requirements	AC100V, 120V, 220-240V 50/60 Hz
Power consumption	300W
Dimensions	W	906mm; 35-11/16in
H	257mm; 10-1/8in
D	821mm; 32-5/16in
Net weight	43kg; 94.8lbs
Accessories	manuel utilsateur
