Fiche technique
- Fabricant : VFE Pedals
- Modèle : Blueprint V2
- Catégorie : Delays / échos pour guitare
- Autres dénominations : blueprintv2, blueprint v 2, Blueprint V2

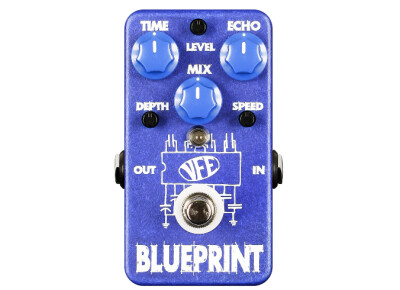

The Blueprint is an analog-voiced delay based around the popular PT2399 delay chip. It has a delay time range of 40-580ms, controls for mix, level (up to about a 10 dB boost), plus dual modulation controls. An internal trimpot also gives control over the tone of the delay, so you get to decide how clear or filtered the repeats are. The MIX control goes all the way to 100% wet signal, and the ECHO control can drive the pedal into self-oscillation for musicians who like to walk on the wild side.
DIMENSIONS : Enclosure dimensions: 2.37"W x 4.37"L x 1.16"H (60 x 111 x 29mm)
With knobs & jacks: 2.6"W x 4.4"L x 2.1"H (66 x 111 x 53mm)
POWER : Industry-standard 2.1mm, negative-tip 9V to 15V power supply or 9V battery.
CURENT DRAW : ~50ma continuous, +30ma surge for 4ms during on/off switching
INPUT IMPEDANCE : 485K-ohms
Source : http://www.vfepedals.com/
Distribué par HCG Diffusion
»
