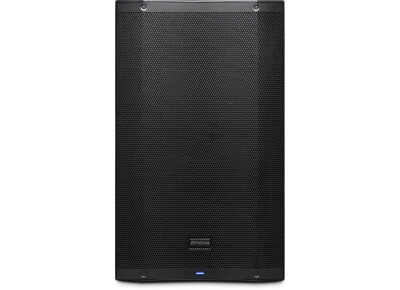

PreSonus AIR15

Main Components

• Hybrid “best of both worlds” 1,200W (dynamic) power amp configuration:
  • Low-frequency driver: 500W (continuous), Class D amplifier
  • High-frequency driver: 200W (continuous), Class A/B amplifier
  • Maximum SPL 132 dB peak
• 1.35-inch, high-frequency compression driver
• 15-inch woofer with a 2.5-inch voice coil
• 45 Hz to 20 kHz frequency response
• 132 dB SPL (max)
• 90° x 60° (horizontal x vertical) dispersion pattern
• Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output

Controls

• Easy-to-use DSP performance presets:
  • DJ—music playback
  • FOH—normal front-of-house o Enhance – enhanced low end for a warmer sound
  • Monitor – optimized for floor wedge placement
  • Speech—applications where speech intelligibility is critical
• EQ
  • HF response ±10 dB
  • LF response ±10 dB
• Additional presets and controls:
  • Stand—for mounting on a pole or tripod
  • Bracket - for wall-mount applications
  • Suspend – for suspended applications

Convenience Features

• Multi-angle enclosure for mains or monitor-wedge applications
• Comfortable ergonomic handle
• 35 mm pole socket with 7.5˚ downward tilt
• M10 rigging points for suspended installation
• Defeatable front-panel LED
• Rugged plastic enclosure
• Tour-grade, 16 gauge steel grille
