BarnabeeSuper petite bête, je m'en sers pour beaucoup de choses
Publié le 06/03/20 à 10:39- Des notes de mise en scène, d'improvisations (je travaille dans le théâtre)
- Des prises de voix off pour montages
- Des notes de répétitions guitare/voix, mode 4CH

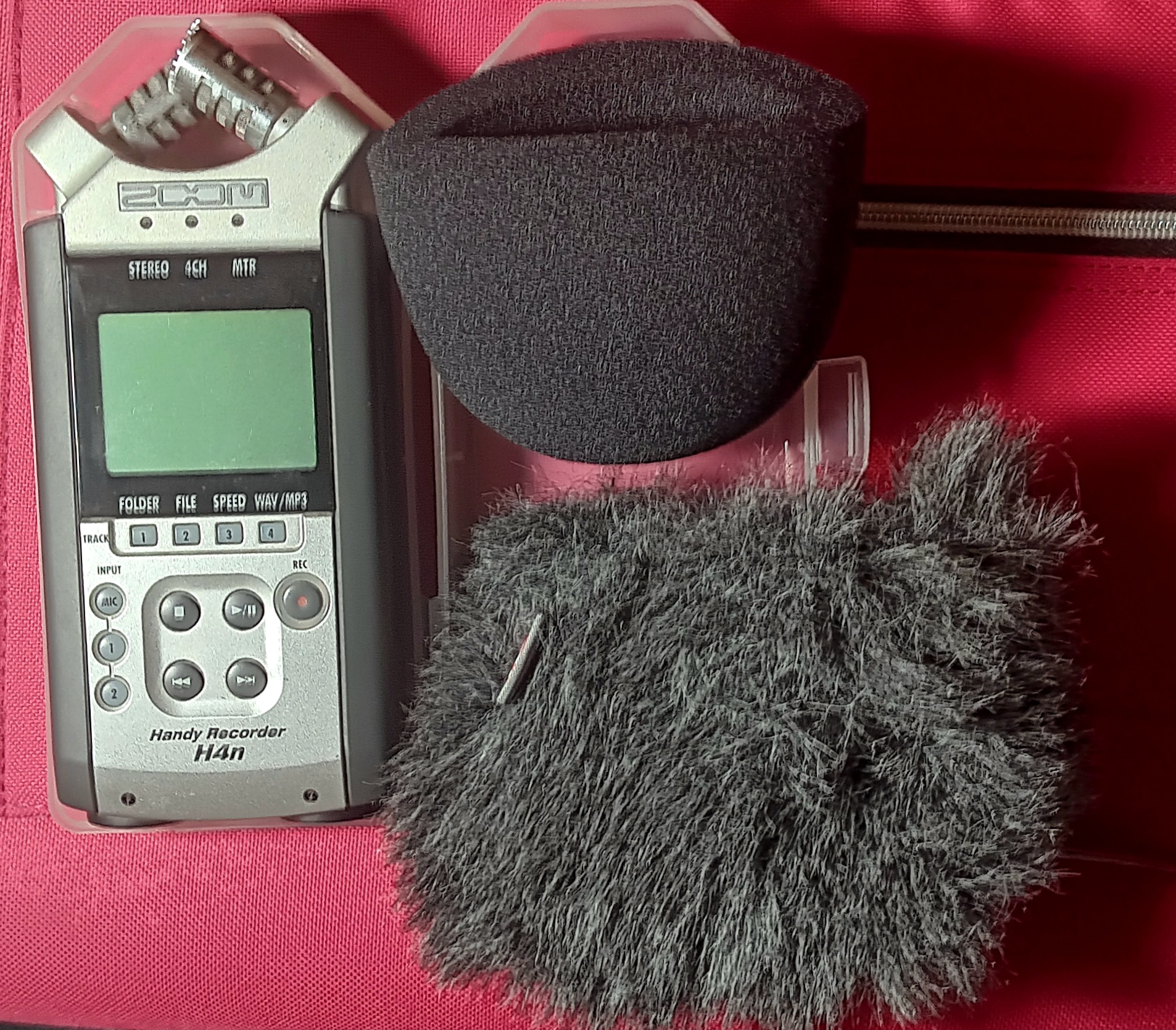

Attention en extérieur, bonnette vraiment indispensable !
Excellent produit, très connu, plus besoin de le présenter, je l'emporte partout !
VSYQUEMbon mais fragile
Publié le 25/03/17 à 02:53J'ai remplace mon HN par un Sony PCM D100 beaucoup plus robuste ( les micros sont proteges par une grille ) et surtout de qualite sans equivalent que ce soit au niveau enregistrement ou restitution des fichiers audio . ( le prix est toutefois plus eleve )
bigmomafragile
Publié le 25/09/16 à 19:41je suis maintenant passé au H5. Ce dernier doit partir en SAV bientôt a cause d'un bus sur une entrée XLR
Je suis pourtant hyper soigneux :/
Gyom MilabFais le taff
Publié le 16/06/15 à 21:37Extraits audio
-
00:0000:51
-
00:0000:50
-
00:0000:56
Fiche technique
- Fabricant : Zoom
- Modèle : H4nSP
- Série : H4
- Catégorie : Enregistreurs/Studios de poche
- Fiche créée le : 11/02/2009
Le H4nSP est un enregistreur 4 pistes.
Features
- Includes H4n Handy Recorder, protective case, two AA batteries, owners manual, and download license for Steinberg Cubase LE and WaveLab LE software
- Four-track simultaneous recording
- Built-in X/Y stereo mic, adjustable between 90˚ and 120˚
- Onboard MS decoding
- Dual mic/line/instrument level inputs with XLR/TRS combo connectors
- Stereo ⅛" Mic/Line In mini phone jack
- +24 or +48V phantom power for main inputs and Plug-in power (2.5V) via Mic/Line In mini phone jack
- Output/headphone jack with dedicated volume control
- Built-in reference speaker for fast monitoring
- Large 1.9 inch backlit LCD display
- Records directly to SD and SDHC cards up to 32 GB
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record and Pre-record features
- Internal mixdown: four-track to stereo and stereo to dual mono
- Up to 99 marks per recording
- Flexible overdubbing and punch-in/out
- Built-in effects, including compression/limiting, low-cut filtering, modulation, reverb/delay and amp models
- Normalize (maximum gain) and Divide (file splitting) functions
- Chromatic tuner and metronome
- Loop playback with user-defined start and stop points
- Variable playback speed, from 50% to 150%, without affecting pitch
- Variable pitch without affecting playback speed
- USB port for data exchange to and from computer
- 2-in/2-out USB audio interface for PC/Mac computers
- SD card reader function
- Mounts to mic stand or tripod, or directly to DSLR with optional Hot Shoe adapter
- Runs on only 2 standard AA alkaline or NiMH rechargeable batteries
- Up to 6 hours of operation with 2 AA alkaline batteries (up to 11 hours in Stamina mode)
Specifications
| GENERAL | |
|---|---|
| Number of simultaneous recording tracks:: |
2 (STEREO mode), 4 (4CH mode), 2 (MTR mode) |
| Number of simultaneous playback tracks: |
2 (STEREO mode), 4 (4CH mode), 4 (MTR mode) |
| Recording time 4GB (SDHC): |
Approx. 380 minutes (WAV 44.1 kHz/16 bit stereo track) Approx. 68 hours (MP3 44.1 kHz/128kbps stereo track) * Recording times are approximations. Actual times may differ according to recording conditions. |
| Maximum number of simultaneous recording files size: |
2GB |
| Projects: |
1000/card |
| Locate function: |
Hours/Minutes/Seconds/Milliseconds |
| Other functions: |
Punch-in/out, Bounce, A-B repeat |
| Effects modules: |
2 STEREO / 4CH Mode: LO CUT, COMP/LIMITER MTR Mode PRE AMP module, EFX module |
| Types: |
50 |
| Patches: |
60 |
| Tuners: |
Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD |
| Metronome sound sources: |
5 |
| Variable beat: |
1/4 - 8/4, 6/8, unaccentuated |
| Tempo: |
40.0 - 250.0 BPM |
| A/D conversion: |
24 bit × 128 oversampling |
| D/A conversion: |
24 bit × 128 oversampling |
| Recording media: |
SD card (16MB - 2GB), SDHC card (4GB - 32GB) |
| Display: |
128 x 64 dots Full-dot backlit LCD |
| DATA TYPE - WAV FORMAT (RECORD/PLAY) | |
| Quantization: |
16/24 bit |
| Sampling frequency: |
44.1 / 48 / 96 kHz |
| DATA TYPE - MP3 FORMAT (RECORDING) | |
| Bit rate: |
48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR |
| Sampling frequency: |
44.1 kHz |
| DATA TYPE - MP3 FORMAT (PLAYBACK) | |
| Bit rate: |
48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR |
| Sampling frequency: |
44.1 / 48 kHz |
| INPUTS | |
| Input [1] [2]: |
XLR (balanced input) / standard phone (unbalanced input) combo jack |
| Input impedance: |
(Using balanced input) 1 kΩ balanced, pin 2 hot (Using unbalanced input) 480 kΩ unbalanced |
| Input level: |
(Using balanced input) −10 dBm to -42 dBm (Using unbalanced input) +2 dBm to -32 dBm |
| Built-in stereo mic: |
Unidirectional condenser microphone Gain: +7 dB to +47 dB |
| External mic: |
Mini stereo phone jack Input impedance: 2 kΩ Input level: -7 dBm to -47 dBm |
| OUTPUTS | |
| Line/phone: |
LINE Output load impedance: 10 kΩ or more Rated output level: -10 dBm PHONE: 20 mW+20 mW (into 32-Ω load) |
| Monaural speaker: |
400 mW 8 Ω |
| Phantom power: |
48 V, 24 V, OFF |
| USB: |
USB 2.0 High Speed Mass Storage Class operation, Audio interface operation (USB functions can be operated by USB bus power) |
| Power requirements: |
DC 5 V 1A AC from AC adapter ( ZOOM AD-14) |
| Batteries: |
IEC R6 ( size AA ) x 2 |
| Continuous recording time: |
6 hours (STEREO/4CH/MTR mode) 11 hours (STAMINA mode) |
| Dimensions: |
73 (W) × 156.3 (D) × 35 (H) mm |
| Weight: |
280 g |
|
* 0 dBm = 0.755 Vrms |
|
Source : https://www.zoom.co.jp/products/handy-recorder/h4nsp-handy-recorder#overview
