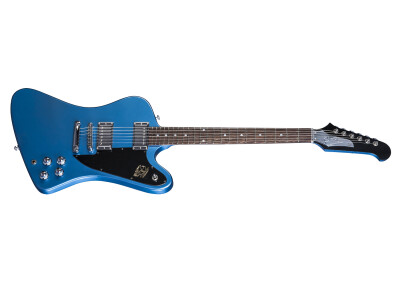

Gibson Firebird Studio 2017 HP
Photos
1/36

Gibson Firebird Studio 2017 HP

Guitare de forme Flying V / Explorer / Firebird de la marque Gibson appartenant à la série Firebird

Écrire un avis ou Demander un avis
Présentation du produit Présentation
Avis
Comparateur de prix
Petites annonces Annonces 1 1
Forums

Annonces Firebird Studio 2017 HP

Alerte nouvelle annonce

Images

Voir les 35 photos de la Gibson Firebird Studio 2017 HP

Fiche technique

  • Fabricant : Gibson
  • Modèle : Firebird Studio 2017 HP
  • Série : Firebird
  • Catégorie : Guitares de forme Flying V / Explorer / Firebird
  • Fiche créée le : 03/02/2017

Version High Performance de la Firebird Studio 2017. Elle ne possède pas des mini-humbuckers mais deux humbuckers 496R et 500T.

Body

Top
Wood Species: Mahogany
Pieces: 2
Grade: A
Binding: None

Back
Weight
Weight Relief: None
Average Weight (body only): 4 lbs. 14.4 oz.

Materials Used
Glue: Franklin Titebond 50

Tonal, Resonant, and/or Technical Effect: Sculpted Fast Access Heel

Body Contour
Carve: Flat
Neck



Neck
Wood Species: Mahogany
Pieces: 1

Details
Truss Rod: Firebird
Profile: Slim Taper
Thickness at Fret 1: 0.800"
Thickness at Fret 12: 0.875"
Average Weight: 1lbs. 1.4 oz.

Peg Head
Type: Firebird Studio
Inlay: None
Peg Head Binding: None
Silkscreen: None
Headstock Angle: 14 degrees
Neck Fit
Joint Angle: 4.25 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortis and Tenon
Adhesive: Franklin Titebond 50
Gauges Used: Pitch Height Gauge

Nut
Style: Zero Fret Nut
Material: Titanium
Width: 1.745"
Slots: E: 0.058"
A: 0.048"
D: 0.038"
G: 0.028"
B: 0.019"
e: 0.014"

Fingerboard
Wood Species: Rosewood
Pieces: 1
Shade: Dark
Fingerboard Details
Radius: 12"
Frets: 22
Nut/End of Board: 1.745" @ nut, 2.310" @ end of board
Scale: 24 3/4
Binding: None
Side Dots (Color): White

Fingerboard Inlays
Style: Dot
Material: Mother of Pearl
Dimensions: Small - 0.249"
Average Weight: 4.16 oz
Finishes



Pelham Blue
Color Code: PB
Surface Texture: Smooth / Hi Gloss 90 Sheen Lacquer
Filler: Walnut
Sealer: 1.5-2 mils
Top: Pelham Blue
Top Coat: Hi Gloss Lacquer/ 90 Sheen 7-8 mils
Scraped: Fingerboard Sides and Nut

Vintage Sunburst
Color Code: VS
Surface Texture: Smooth / Hi Gloss 90 Sheen Lacquer
Filler: Natural
Sealer: 1.5-2 mils
Top: Vintage Sunburst
Top Coat: Hi Gloss Lacquer/ 90 Sheen 7-8 mils
Scraped: Fingerboard Sides and Nut
Electronics
Pickups Rhythm   Lead
Style: 496R   500T
Winds/Coil: Screw side/Slug side: 5250/5250   5250/7500
Material of Wire (gauge): Copper (42)   Copper (42/43)
Coil Dimensions (per coil): 2.61 x 0.68"   2.61" x 0.68"
Coil Material: ABS   ABS
Coil Winding Process: Machine Wound   Machine Wound
Pole Piece Material: Nickel plated steel   Nickel plated steel
Pole Piece Position from Nut: 18.625"   23.437"
Slug Material: Nickel plated steel   Nickel plated steel
Slug Dimensions (diameter x length): 0.187 x 0.489"   0.187 x 0.489"
Magnet Material: Ceramic   Ceramic 8
Magnet Position from Nut: 19"   23.125"
Cover: Chrome   Chrome
Qfactor: 2.95   3.61
ResistanceDC: 8420 Ohms   15510 Ohms
Resonant Frequency: 2581.14 Hz   2272.62 Hz



Control Pocket Assembly Lead Volume Rhythm Volume
Type: 500K Non-Linear 500K Non-Linear
Peak Voltage: 500V 500V
Range: 0-500K 0-500K
Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms
Resistance Tolerance: +/- 20% +/- 20%
Minimum Resistance: 200 ohms 200 ohms

  Lead Tone Rhythm Tone
Type: 500K Non-Linear 500K Non-Linear
Peak Voltage: 500V 500V
Range: 0-500K 0-500K
Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms
Resistance Tolerance: +/- 20% +/- 20%
Minimum Resistance: 200 ohms 200 ohms

Capacitors: Lead Value Rhythm Value
  .022uF .022uF
Hardware



Tuning Keys
Style: G-FORCE
Material: Zamak
Weight: 1.1 oz

Tuning Keys Details
Tuning Ratio: 40:01:00
Gear Type: Syncronized Spur Gear System
What is allowable turn: +/- 4 degrees
Plating specs: Chrome
Part numbers: 430-14301B / 301T

String Dimensions
E: 0.046"
A: 0.036"
D: 0.026"
G: 0.016"
B: 0.011"
e: 0.009"

Bridge
Style: TOM w/ Titanium Saddles and Locking Thumbwheels
Material: Aluminum
Plating Specs: Chrome
Part number: 430-14454 / 430-94940
Weight: .96 oz




Dimensions of String Slots
E: 0.058"
A: 0.048"
D: 0.038"
G: 0.028"
B: 0.019''
e: 0.014"

Tailpiece
Style: Stop Bar w/ Locking Studs
Compensated: No
Material: Aluminum
Plating Specs: Chrome
Part number: 430-14451 / 430-14451
Weight: 1.12 oz

Output Jack
Style: 1/4" mono gold plated positive contact

Jack Plate
Style: None
Material: n/a
Part Number: n/a
Weight: n/a

Strap Buttons
Material: Aluminum
Plating Specs: None
Part numbers: 430-19160 / 60E
Weight: 0.14 oz
Plastics

Pick Guard
Style: Firebird Black w/ Gold stamp
Part Number: 380-20841

Truss Rod Cover
Style: Chrome, Stamped "Gibson / High Performance"
Part Number: 430-94924

Knobs
Style: Knurled Chrome UFO
Part Number: 430-14457

Dial Pointers
Yes/No: No




Control Plate(s) (Backplate Cover)
Style: Black ABS
Part Number: 430-19622

Control Plate(s) (SwitchPlate Cover)
Style: n/a
Part Number: n/a

Switch Washer
Style: None
Part Number: n/a

Trim Rings
Style: Black Humbucker w/ Chrome Trim Ring
Part Number: 440-13884 / 440-13851
Accessories



Case
Style: Gig Bag - EVF
Color: Black with White Logo

Strap Locks: None
Tools: Gibson USA Guitar Strap, Gibson USA Polishing Cloth, Tross rod wrench, 2.5mm adjustment wrench

Manual: Gibson USA's owners
COA/Other: None
»
