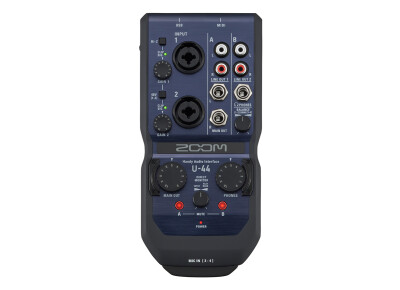

Zoom U-44

Ajouter ce produit à

Mon ancien matos
Mon matos actuel
Mon futur matos

Interface audio USB de la marque Zoom

Déposer un avis

Argus 69,00 €

Vue d’ensemble Vue d’ensemble

Meilleurs prix

Forums

6/10

Où acheter U-44 ?

Moins

Neuf (2 offres)
Occasion

Meilleur prix neuf

Voir plus d’offres

Test de l'interface audio Zoom U-44

Une interface tout terrain ? Fort de ses succès dans le monde des enregistreurs nomades avec la série des « H », le constructeur japonais Zoom a bien l’intention de rééditer ces performances dans le secteur des interfaces audionumériques qui tiennent dans la main. Lire la suite…

Fiche technique

Créée le 06/04/2016

Fabricant : Zoom
Modèle : U-44
Catégorie : Interfaces audio USB
Autres dénominations : u44

La U-44 est une interface audio USB avec 4 entrées, 4 sorties et MIDI.

Features

Multi-channel and stereo USB audio interface for PC/Mac
Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
Two mic/line inputs with high-performance mic preamps
High-quality recording and playback at resolutions up to 24-bit/96 kHz
Compatible with Zoom interchangeable input capsules via 10-pin connector
Standalone AD/DA conversion
Functions as a two-channel mic preamp with analog and digital outputs
Approximately 4 hours of operation with 2 AA alkaline batteries
Includes download code for Ableton Live 9 Lite
Four-channel simultaneous inputs
Hi-Z support (input 1)
Zero-latency direct monitoring
Three TRS phone jack outputs
Dedicated RCA L/R and headphone outputs
MIDI I/O
S/PDIF optical/coaxial input and output
Gain control knobs for each input
+48V phantom power for inputs 1 and 2
Accepts standard AA alkaline or NiMH rechargeable batteries

Specifications

ANALOG IN: INPUT 1/2
Connector:	TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)
Input gain:	0 – 43 dB
Input impedance:	2.6 k Ω (MIC IN) 1.1 M Ω (when Hi-Z ON)
Maximum input level:	+2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)
Phantom power:	+48V
ANALOG IN: MIC IN
Supported Zoom Input Capsules:	XYH-6, MSH-6, SGH-6, EXH-6, SSH-6, XYH-5
ANALOG OUT: MAIN OUT L/R
Connector:	TRS phone jacks (unbalanced)
Maximum output level:	+10 dBu (at 0 dBFS)
Output impedance:	330 Ω
ANALOG OUT: LINE OUT 1/2
Connector:	RCA (coaxial)
Maximum output level:	+8 dBu (at 0 dBFS)
Output impedance:	1kΩ
ANALOG OUT: PHONES
Connector:	Standard stereo phone jack 30 mW x 2 (into 32 Ω load)
Maximum output level:	+10 dBu (at 0 dBFS)
Output impedance:	33 Ω
DIGITAL IN/OUT: S/PDIF OPTICAL
Connector:	TOSLINK
Supported sampling frequencies:	96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
DIGITAL IN/OUT: S/PDIF COAXIAL
Connector:	RCA (coaxial)
Supported sampling frequencies:	96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

Frequency characteristics:	At 44.1 kHz: ±1.5 dB: 20 Hz - 20 kHz At 96 kHz: ±2 dB: 20 Hz - 40 kHz
Input conversion noise:	Measured EIN: -119.5 dB (IHF-A) at 43 dB, 150 Ω input
Number of audio recording and playback channels:	Recording: 4 channels Playback: 4 channels
Sampling frequencies:	96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth:	24-bit
Interface:	USB 2.0
MIDI IN/OUT:	5-pin DIN jack
Power Source:	USB bus power (Type B) ZOOM AD-17 (Micro-B) DC 5V power supply (Micro-B) 2 AA batteries (4 hours continuous operation with phantom power off)
Power consumption:	5W maximum
Dimensions:	198.8 mm (D) x 92.3 mm (W) x 42.7 mm (H)
Weight (main unit only):	310 g
	*0dBu=0.775Vrms
