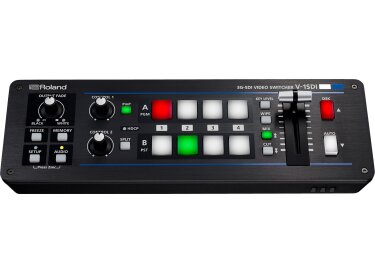

Roland V-1SDI

• Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
• Easy to operate with hardware controls
• Compact size
• Supports up to Full HD 1080p
• 3 x 3G-SDI and 2 x HDMI* inputs
• 2 x 3G-SDI and 1 x HDMI* output
• Quad input multi-viewer with source labelling and audio metering
• Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
• Full 14 channel audio mixer included
• Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection

Video Processing4:2:2 (Y/Pb/Pr), 8-bitInput ConnectorsSDI INPUT 1--3: BNC x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI INPUT 3--4: Type A (19 pins) x 2
* HDCP Supported
* INPUT 3: SDI or HDMI selected.Output ConnectorsSDI OUT PGM: BNC x 1
SDI OUT PVW: BNC x 1
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
* HDCP SupportedInput FormatsSDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
HDMI INPUT 3
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

HDMI INPUT 4
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)

FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)

UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).Output formatsSDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
HDMI OUT MULTI-VIEW
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).Video EffectsTransition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)AUDIOAudio ProcessingSampling rate: 24 bits/48 kHzAudio FormatsSDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
HDMI: Linear PCM, 24 bits/48 kHz, 2chInput ConnectorsDigital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2

Analog: AUDIO IN (RCA phono type)
MIC (Stereo mini type, plug-in power supported)Output ConnectorsDigital: SDI OUT PGM: BNC x 1 SMPTE 299M
SDI OUT PVW: BNC x 1 SMPTE 299M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1

Analog: AUDIO OUT (RCA phono type)
PHONES (Stereo mini type)Input LevelAUDIO IN: -10 dBu (Maximum: +8 dBu)
MIC: -41-- -13 dBu (Maximum: -1 dBu)Input ImpedanceAUDIO IN: 15 k ohms
MIC: 10 k ohmsOutput LevelAUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT: 1 k ohm
PHONES: 10 ohmsAudio EffectsEQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effectOTHERSOther ConnectorsUSB: B Type (for remote control from PC)
RS-232: DB-9 typeOther FunctionsMEMORY (8 types)
FREEZE (input video captured)
OUTPUT FADE (Audio, Video: WHITE or BLACK)Power SupplyAC AdaptorCurrent Draw2.1 APower Consumption25 WOperation Temperature+0 to +40 degrees Celsius
+32 to +104 degrees FahrenheitDimensions313 (W) x 108 (D) x 59 (H) mm
12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inchesWeight (excluding AC adaptor)1.2 kg
2 lbs 10-2/5 ozAccessoriesOwner's manual
AC adaptor
Power cord
Cord hook
