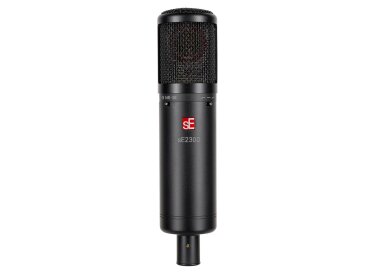

sE Electronics sE2300

Capsule Type: Hand-crafted 1" True Condenser

Polar Pattern: Cardioid, Omni-directional, Figure-8

Frequency range: 20 Hz - 20 kHz

Sensitivity: 24 mV/Pa (-32.5 dBV)

Max SPL: 126 / 136 / 146 dB (0/10/20 dB pad) (0.5% THD @ 1kHz)

Equivalent noise level: 9 dB(A)

Dynamic range: 117 / 127 / 137 dB (0/10/20 dB Attentuation pad)

Signal to Noise Ratio: 85 dB

Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable

Attenuation Pad: 10 / 20 dB, switchable

Powering: 48 Volts according to IEC 61938

Electrical Impedance: 40 Ohms

Recommended load impedance: >1k Ohms

Current consumption: 4.8 mA

Connectivity: 3-pin male XLR connector

Dimensions: Diameter: 51mm (2.01 in), Length 215mm (8.46 in)

Weight: 611 g (21.55 oz.)
