Fiche technique
- Fabricant : Teac
- Modèle : X-2000R
- Catégorie : Multipistes analogiques
- Fiche créée le : 26/04/2005
Category: Super High Fidelity
Application: Consumer
Electronic: Solid State
Country Of Manufacture: Japan
Release Dates:1984 - 1987
Tracks:1/4 Rec/PB
Speeds: (3 3/4, 7 ½) 9.5 - 19 cm/s

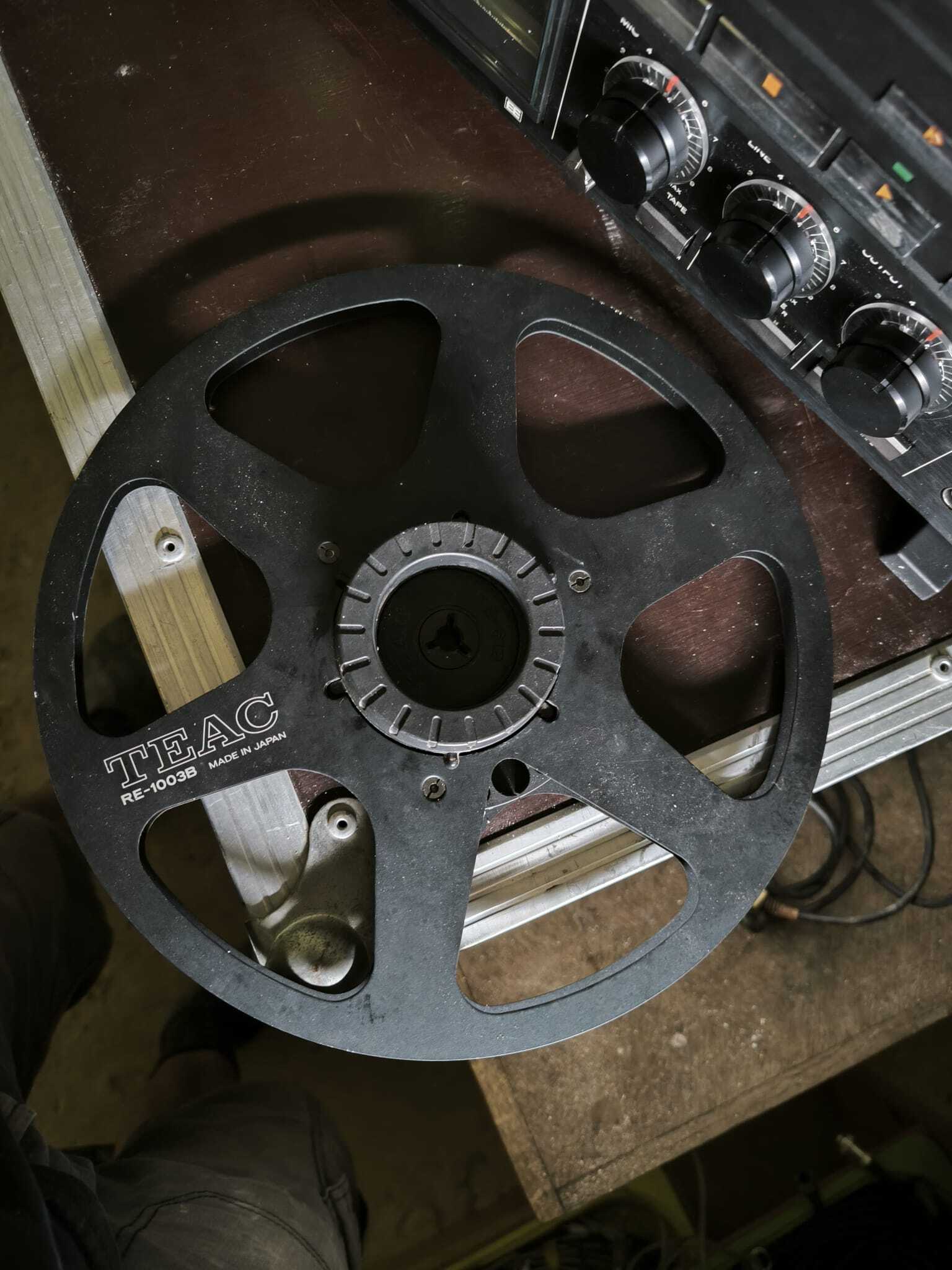

Max Reel Size : (7") 26.5 cm
Number Of Heads: 6 (ER RE PB x 2)
Dimensions : (18.6 X 19.1 X 10.3") 472 X 486 X 262mm
Head Composition: Permalloy RE = Co
Head Configuration: Stereo (2 tracks)
# Motors: 3
Auto Reverse? : Yes

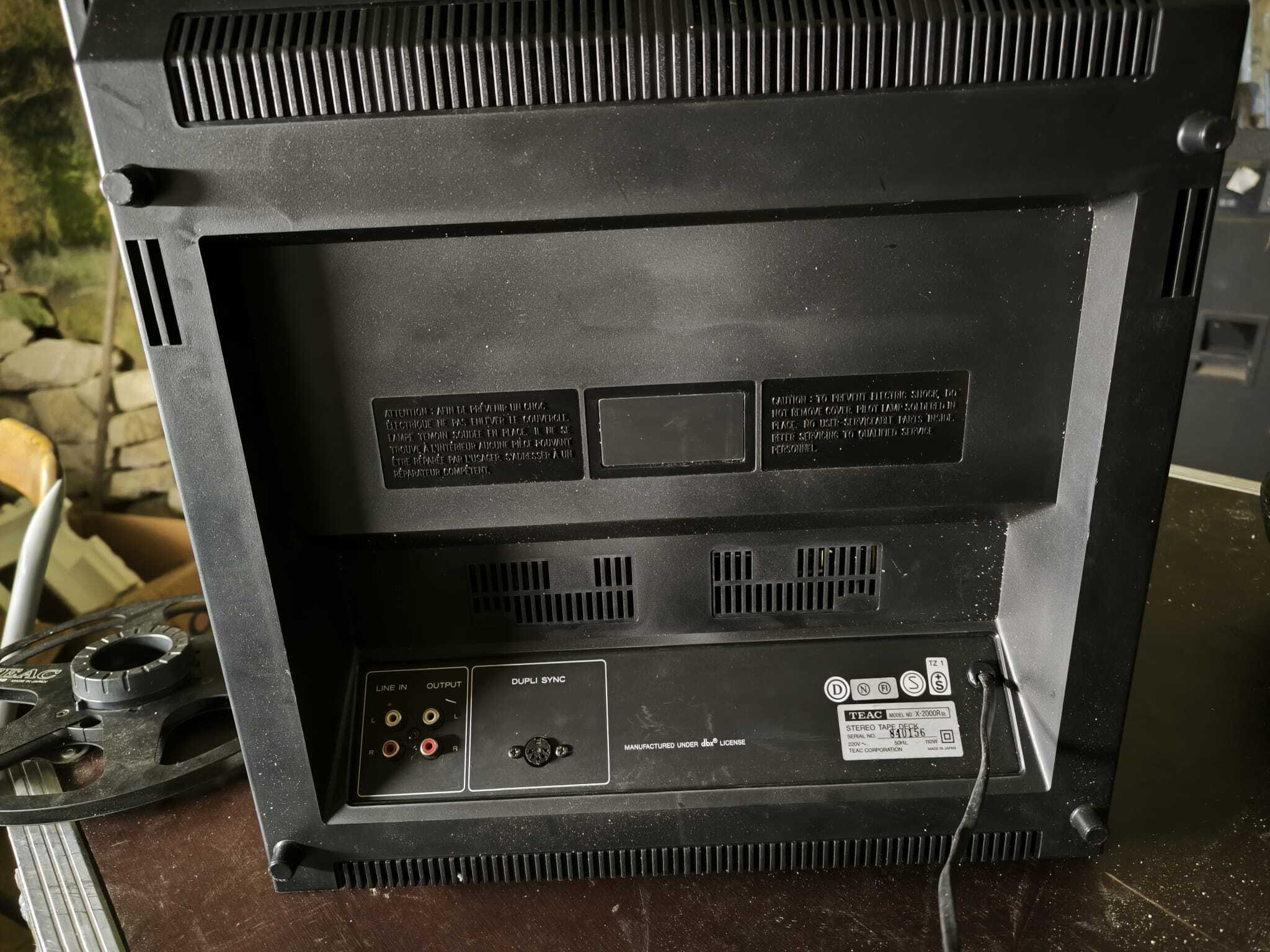

Outputs: RCA, DIN
Frequency Response:( ±3dB):
30 Hz – 40 kHz (0 Vu), 40 Hz – 33 kHz (-20 Vu) (7½ Ips) 19 cm/s
30 Hz – 24 kHz (0Vu), 40 Hz - 22 kHz (-30 Vu) (3¾ Ips) 9.5 cm/s
Wow And Flutter: 0.03% At (7½ Ips) 19 cm/s; 0.04% At (3¾ Ips) 9.5 cm/s
S/N: 65 dB 3% THD (DBX off) 100 dB 3% THD (DBX on)
THD: 0.8 % 1 kHz 185 nWb/m
Stereo channel separation: 50 dB 1 kHz
Line in: 60 mV 50 kohms Mic 0.25 mV -72 dB 200 ohms
Line out: 0.45 V > 10 k ohms
O Vu = 185 nWb / m + 6 dB; 370 nWb / m (tape EE)
Sound Quality Rating: 7 / 10
Long-Term Reliability Rating: 7 / 10
Voltage(S): 110-120v, 220-240v 110 W
Weight: 48.5 Lbs (22kg); 57.2lbs (26kg) wooden case
