Morningstar FX MC6 PRO

• Fabricant : Morningstar FX
• Modèle : MC6 PRO
• Catégorie : Pédales/pédaliers MIDI
• Fiche créée le : 26/03/2023

With a massive display upgrade, an entirely new processor and a never-before-seen
array of connections, MC6 Pro is by far the most powerful and user-centered MIDI
controller yet. Choose from a palette of delightful colors, for a controller that's
uniquely yours. Font size automatically adjusts according to the length of each
preset name. You can also set a maximum size limit for greater uniformity.

Change preset background and text colors to reflect toggle states, or simply
to take personalization to the next degree.

-128 banks of 4 pages
-6 presets per page

With more than 3,000 presets at your disposal, you'll never run out of space again.
Creativity knows no bounds. Neither should your controller. Each preset sends up
to 32 messages. Control even more types of devices with the most comprehensive
array of connections ever.

Five-pin MIDI In and Out/Thru
While TRS MIDI has gained much popularity in recent years, DIN5 is still the most
widely used MIDI connector today. Connect with ease of mind, to devices new and old.

USB-C Device and Host
Via the Device port, connect to your computer and mobile devices to control your
DAWs and software. MC6 Pro can be bus powered here. With the Host port, connect
directly to other MIDI USB devices such as the Source Audio C4 Synth, Line 6 Pod Go
and Zoom Multistomps without the need for a MIDI USB host, which is costly
and cumbersome.

Omniports
Four Omniports can function as TRS MIDI Outputs, Expression Pedal Inputs or Aux
Switch Inputs depending on your needs. Each port can be set independently to
offer you the most utility for your setup. Omniports are proof, that you can
have it all.

Relay Switching
Control devices that employ relay switching even if they don't have MIDI. This includes
amps that support channel switching, delay pedals with tap inputs, Strymon pedals with
Favorite switch inputs and JHS pedals with Red Remote inputs. Two Relay Interfaces
built into one controller.

3.5mm TRS MIDI In and Out/Thru
Designed for maximum convenience when using a wireless MIDI adaptor like the CME
MIDI Jack, these ports transmit data and also power the adaptor. Simply plug and
play, for an effortless wireless MIDI experience.

The Morningstar Editor you've come to know and love - now even better with
a new and improved interface. Available on desktop and mobile.

Technical specifications
-Enclosure Dimensions: 180 x 100 x 50 mm
-Hardware: Aluminium enclosure
-3x Color LCD Display
-6x soft touch foot switch
-No. of banks: 128
-Pages per Bank: 4
-Presets per Page: 6
-Total number of Presets: 3,072
-USB Bus Power
-Phantom Power via MIDI Out pins 6 & 7

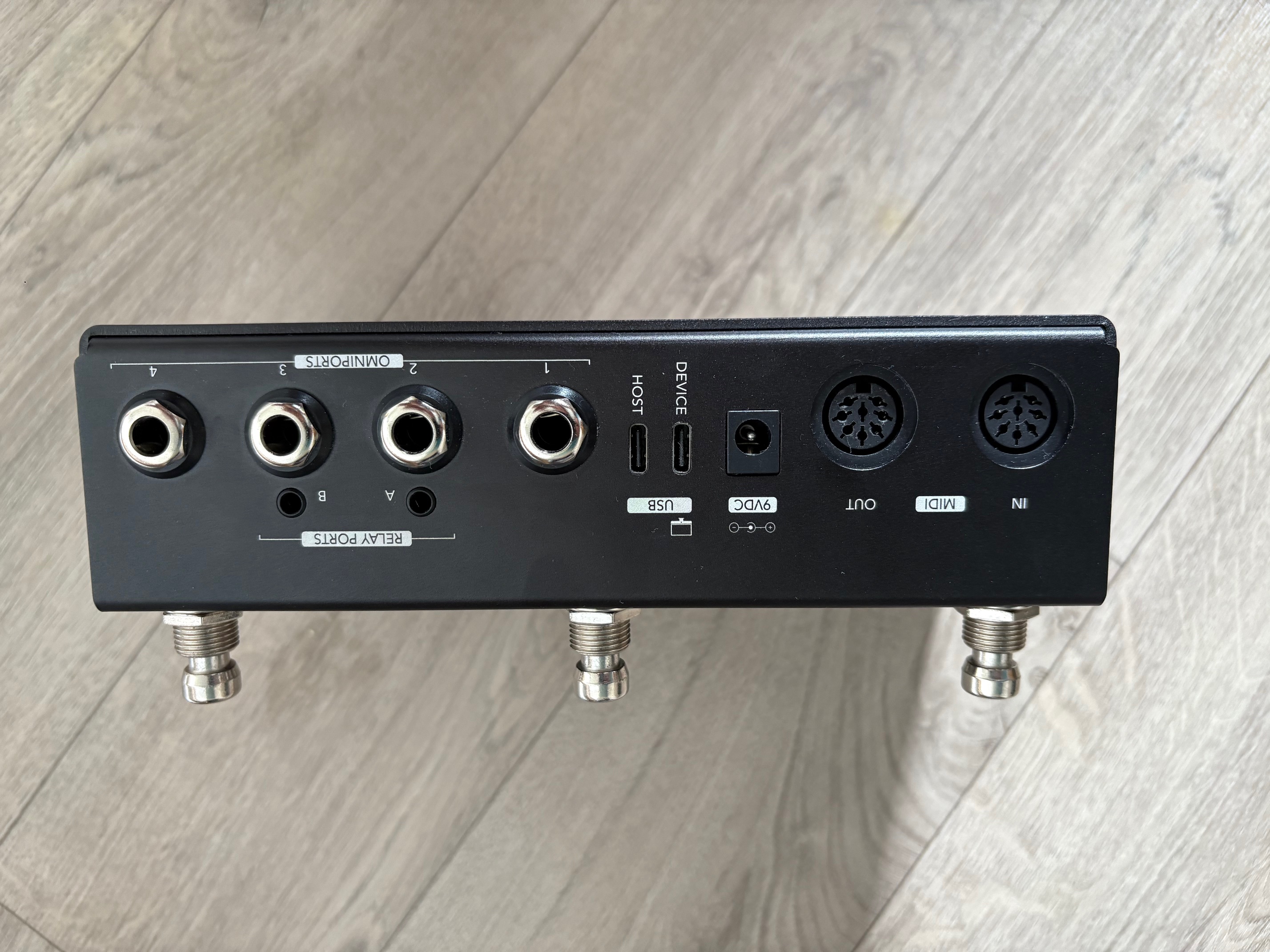

I/O Ports
1x 5-pin MIDI Out
1x 5-pin MIDI In
1x USB Type C (Device)
1x USB Type C (Host)
4x Omniport
2x Relay Switching Port
1x 3.5mm TRS MIDI Out
1x 3.5mm TRS MIDI In

Needs: 9-12 VDC 400mA Center Negative
