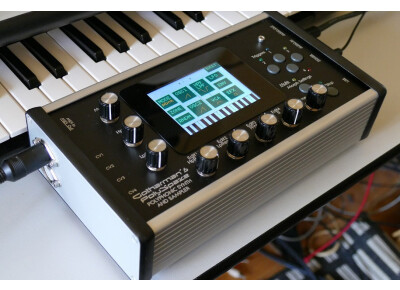

Gotharman's PolySpaze Model B

• Fabricant : Gotharman's
• Modèle : PolySpaze Model B
• Catégorie : Synthétiseurs numériques en rack
• Fiche créée le : 15/11/2017

Version plus abordable et "light" du synthétiseur hybride polyphonique et multitimbral en rack avec filtres analogiques

-4 voices polyphonic/multi-timbral

Per voice:
    -2 Oscillators (8 total). Osc1: Morphable waveforms, samplings, FM to Osc2, PWM. Osc2: Sine, tri, saw, pulse and noise. PWM.
    -1 resonant analog filter (4 total): 24 dB LPF. Has filter FM to Osc2. G-Ray feedback.
    -1 resonant digital multimode filter (4 total). Various LPF. BPH. HPF, LoFi, Fat and destruktion modes. Can be connected in serial, parallel or split (Osc1 to analog, oscillator 2 to digital) to the analog filter. Morphing between filter types.
    -1 effects processor (4 total). 2 can be assigned as part insert effect or global output effect, 2 are fixed as inserts.
    -1 VCA (4 total).
    -1 LFO (4 total).
    -1 Random Generator (4 total). Trigged by key or LFO.
    -2 ADSR Envelopes (8 total).
    -1 Decay Envelope (4 total).

-Stereo in and out.

Play modes:
    -Poly: The 4 voices polypnonic.
    -Poly Bank: The 8 filters forms a filter bank, which the 8 oscillators plays paraphonic into.
    -Mono: Complete control of all 8 oscillators and 8 filters in one huge mono synth!
    -Multi-timbral: Complete control of each of the 4 voices. Key range and MIDI channel settable for each voice.
    -Stereo Bank: Play back stereo samplings through a dual filter bank, formed by 2 x 4 filters.

-4 track note sequencer, 8 track control sequencer with touch control.

-CV in's and out's, and MIDI in and out.

-4 trigger buttons.

-Touch screen keyboard with Y-axis modulation.

-Morphing between 2 layers of sounds.

-USB for import/export of wav files and presets/songs, and for updating the firmware.

-1024 presets, 1024 songs

-22 minutes of sampling time / 255 samplings held in NOR FLASH memory. Kept in memory, even when switching off. Each sampling can hold up to 64 "sub" samplings, when the "Import Samplings As Chops" function is used, so the total maximum number of samplings is 16.320 (255x64).

Connections:
    -Audio In, 1/4 inch stereo jack.
    -Audio Out/headphones, 1/4 inch stereo jack.
    -4 x CV/trigger Inputs (optional). Accepts up to +/- 15 volts. Internally scalable to work in +/- 12 volts, 0-12 volts, +/- 5     volts or 0-5 volt ranges. Minijacks. Intput sample rate: 5 KHz.
    -4 x CV/trigger Outputs (optional). Range: 0-5 volts. Can output all modulation sources and triggers. Minijacks. Output sample rate: 22 KHz.
    -MIDI In.
    -MIDI Out.
    -USB Drive.
    -Power connector.

Audio system:
    -Inputs and outputs: 24 bit, 44.1 KHz Cirrus Logic high end ADC/DAC.
    -Internal: 32 bit, 44.1 KHz.
    -Sampler: 16 bit, 44.1 KHz.

Display:
    -Capacitive 3.2" colour TFT.

Power Supply:
    -Multi voltage input. Output: 9Vdc, 2A, 2.1mm DC plug with positive middle. Exchangable mains plug, so it can be used in any country.

Size:
(W) 22 x (D) 12.5 x (H) 5 cm

Weight:
0.9 KG
