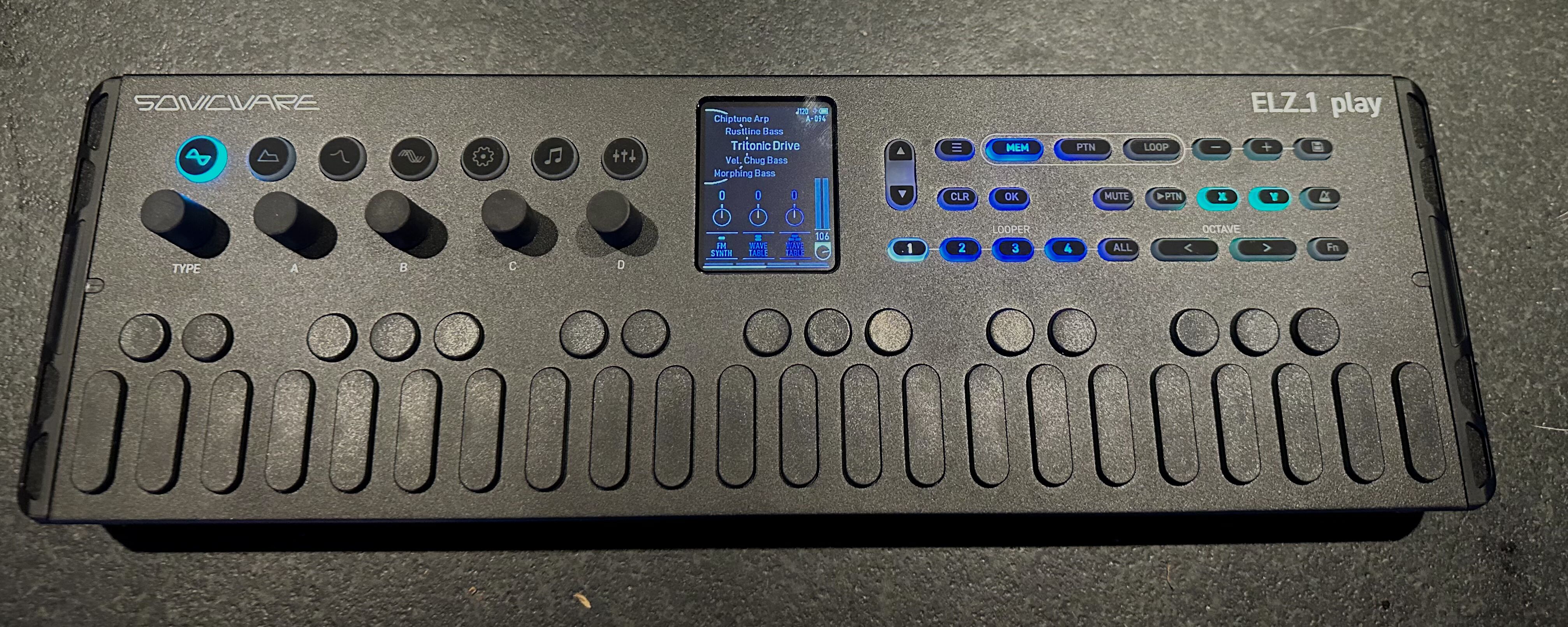

Sonicware ELZ_1 Play

• Fabricant : Sonicware
• Modèle : ELZ_1 Play
• Catégorie : Claviers synthétiseurs numériques
• Fiche créée le : 23/06/2023

• 14 synth engines + 26 effects that fans of the ELZ_1 know and love.
• New 4-track looper for easy one-touch record/playback/overdub.
• Velocity-enabled keyboard, stereo speakers built into the side panel, USB audio & MIDI.

Learn more about ELZ_1 play

 15 types
LOW-BIT OSC
  2~8 bit variable low-bit oscillator
  Sine, square, triangle and sawtooth waves
STANDARD OSC
  32-bit floating-point processing high resolution oscillator
  Sine, square, triangle and sawtooth waves
CUSTOM OSC
  Choose 2 waveforms / period of cycles
DNA EXPLORER
  Extract and generate waveform DNA from audio *
SiGRINDER
  Granular synthesizer engine *
MASKED NOISE
  Noise oscillator
SAND FLUTE
  Extract and generate tone from noise
8BIT WAVE MEMORY SYNTH
  Editing your own waveform
8BIT WAVE MEMORY SYNTH( MORPH )
  Morphing 3 waveforms
8BIT WAVE MEMORY SYNTH( FM MODE )
  2 operators, 8bit FM mode
8BIT WAVEMEM SYNTH (WARP)
  Generates an intermediate waveform by crossfading two waveforms
8BIT WAVEMEM SYNTH (ADSR)
  Waveforms change according to envelope
8BIT WAVEMEM SYNTH (TIME)
  3 waveforms change in the orders
FM SYNTH
  4 operators with 31 algorithms, 32-bit floating point processing
STK DRUMMER
  Drum machine engine (SmplTrek .stk file compatible)

Maximum Polyphony: 15 voices (Depends on the synth engine)
Number of Sound memories: 512 (128 x 4 banks)
*3 samplings of up to 5 seconds can be saved (16bit-48kHz WAV file import/export supported)


ADSR
ADSR (w/curve)
ADS-RA-R
ADS-RA-R (w/curve)


LPF-6, LPF-12
HPF-6, HPF-12
BPF
Peaking EQ
LO EQ
HI EQ
NOTCH


Poly, Mono, Legato, Unison

 26 types
Overdrive, Distortion, Fuzz, Crusher
Chorus, Stereo Chorus, Flanger, Phaser, Tremolo, Vibrato
RingModulator, AutoWah, AutoPan
TapeEcho, Stereo Delay, Reverse Delay, PingPong Delay
Reverb, Hall, Room, Plate, Custom Reverb, Tunnel, Infinity
Vinyl Simulator, Cassette Tape Simulator


Up, Down, UpDown, DownUp, Up&Down, Down&Up, Random, Play Order


Up to 128 steps per pattern (Single track)
128 patterns
Step length can be set from 1/1 to 1/32
Step and real-time recording (Supports non-quantized recording with MicroTiming REC)
Enter longer notes (Tied notes)
Metronome function


4-track looper
One-touch recording/overdubbing
Recording from the built-in sound source, LINE input, and USB audio input
FREE function automatically sets the number of bars according to the recording time
One-shot playback
UNDO/REDO function


Notes, program changes, control changes, clock input/output

37 keys (Velocity sensitive)


5 encoders


Stereo line outputs (standard L/R phone jacks)
Headphone output (stereo mini jack)
*Compatible with Teenage Engineering Pocket Operator Series 2 SYNC OUT
Speaker (Stereo)


AUX IN (stereo mini jack)
*Compatible with Teenage Engineering Pocket Operator Series 2 SYNC OUT

  USB C
 USB Audio functions
 USB MIDI functions
 USB HOST mode

  Standard size
 Looper recording data storage
 Firmware updates


MIDI IN connector (5-Pin DIN type)
MIDI OUT connector (5-Pin DIN type)
SYNC IN jack (monaural 3.5mm mini jack)
SYNC OUT jack (monaural 3.5mm mini jack)

399mm (W) × 131mm (D) × 50mm (H)
15.71” (W) × 5.16” (D) × 1.97” (H)

1.12kg
2.47 lbs

Power supply unit included
  DC9V output AC adapter (1.7A, Inner Diameter: 1.7mm, Outer Diameter: 4.75mm, Polarity: Center +）
6 x AA batteries. *Batteries sold separately
