Fiche technique
- Fabricant : Landscape
- Modèle : HC-TT
- Catégorie : Autres synthétiseurs/racks
- Autres dénominations : hctt

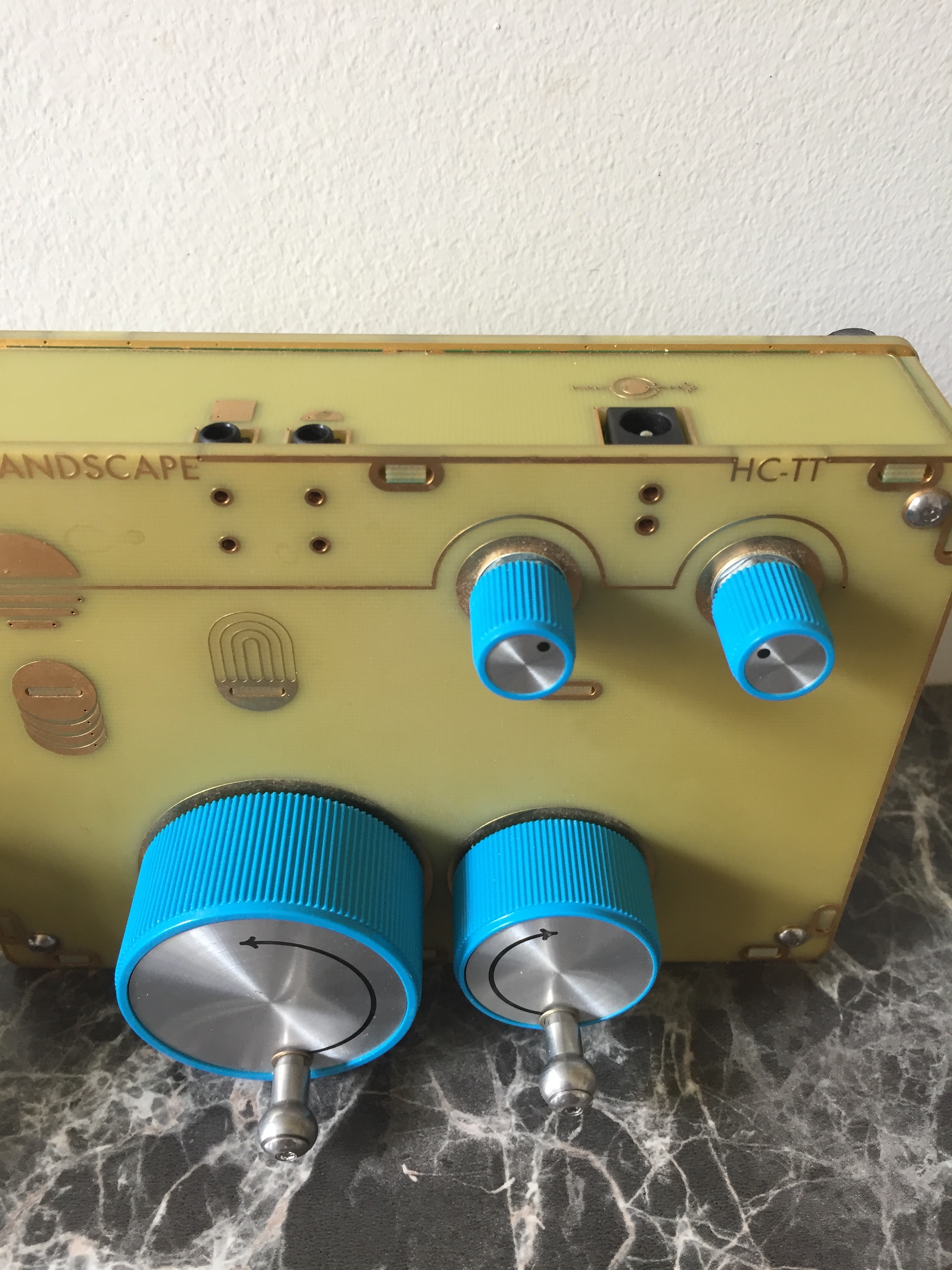

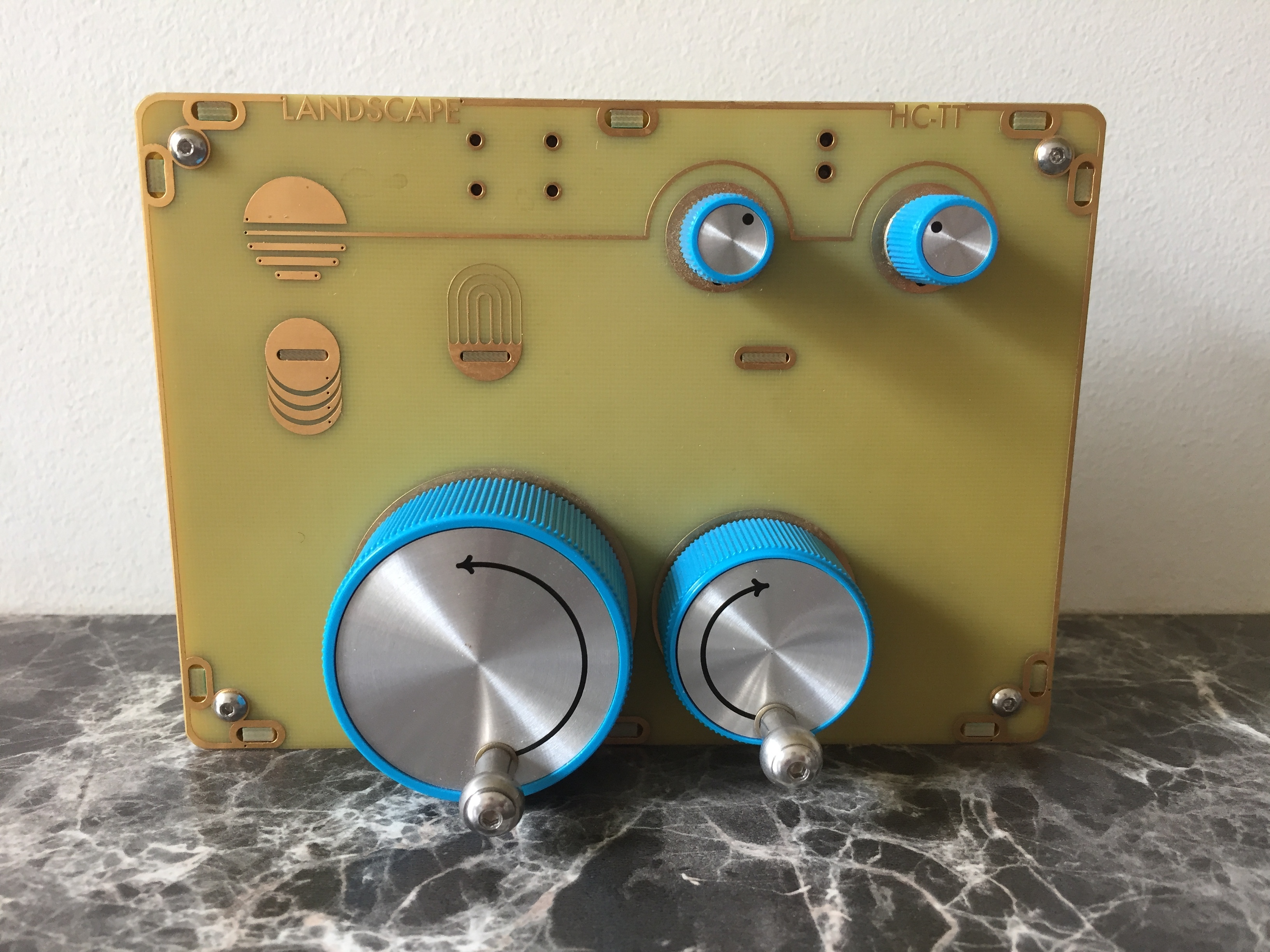

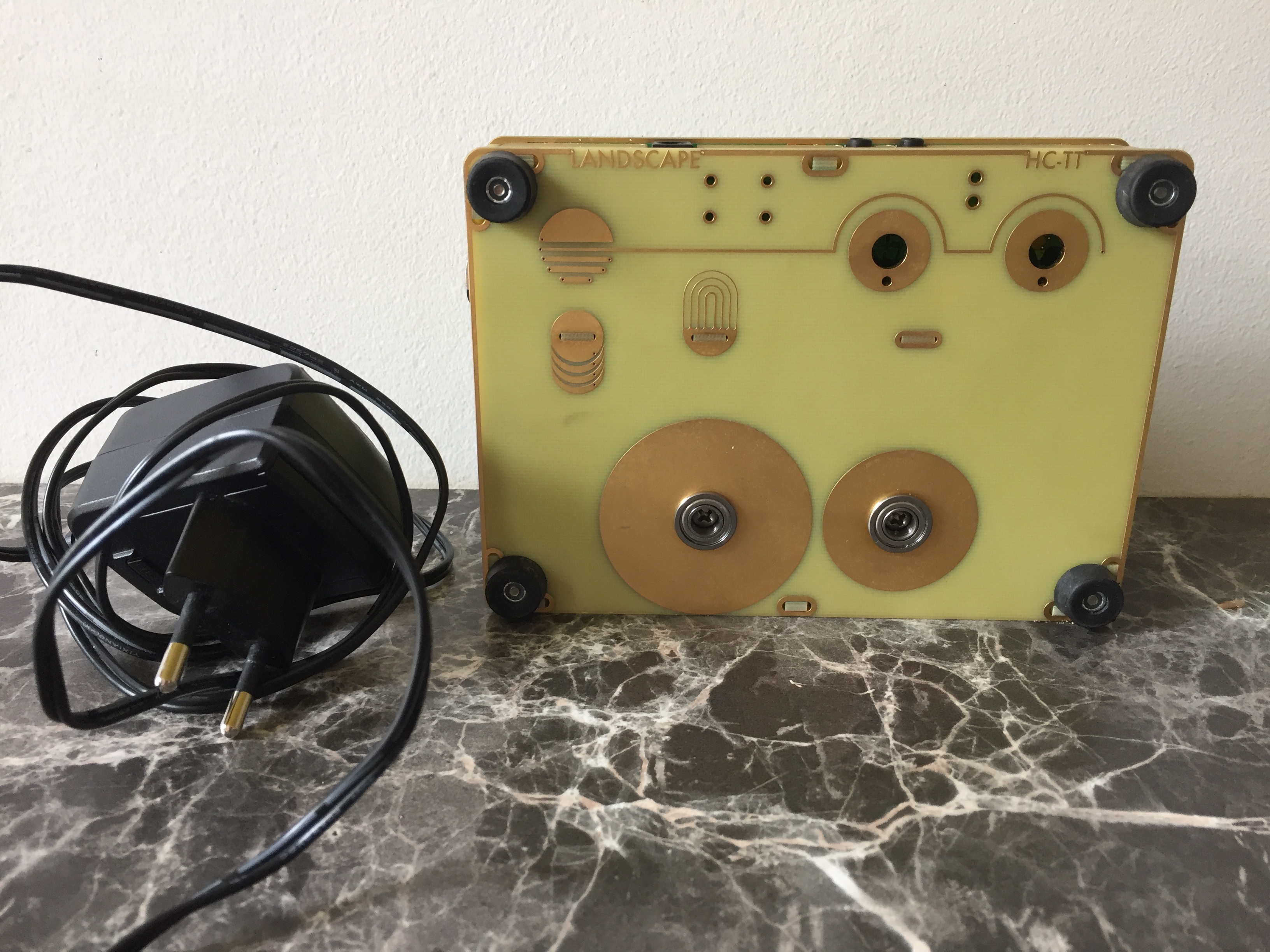

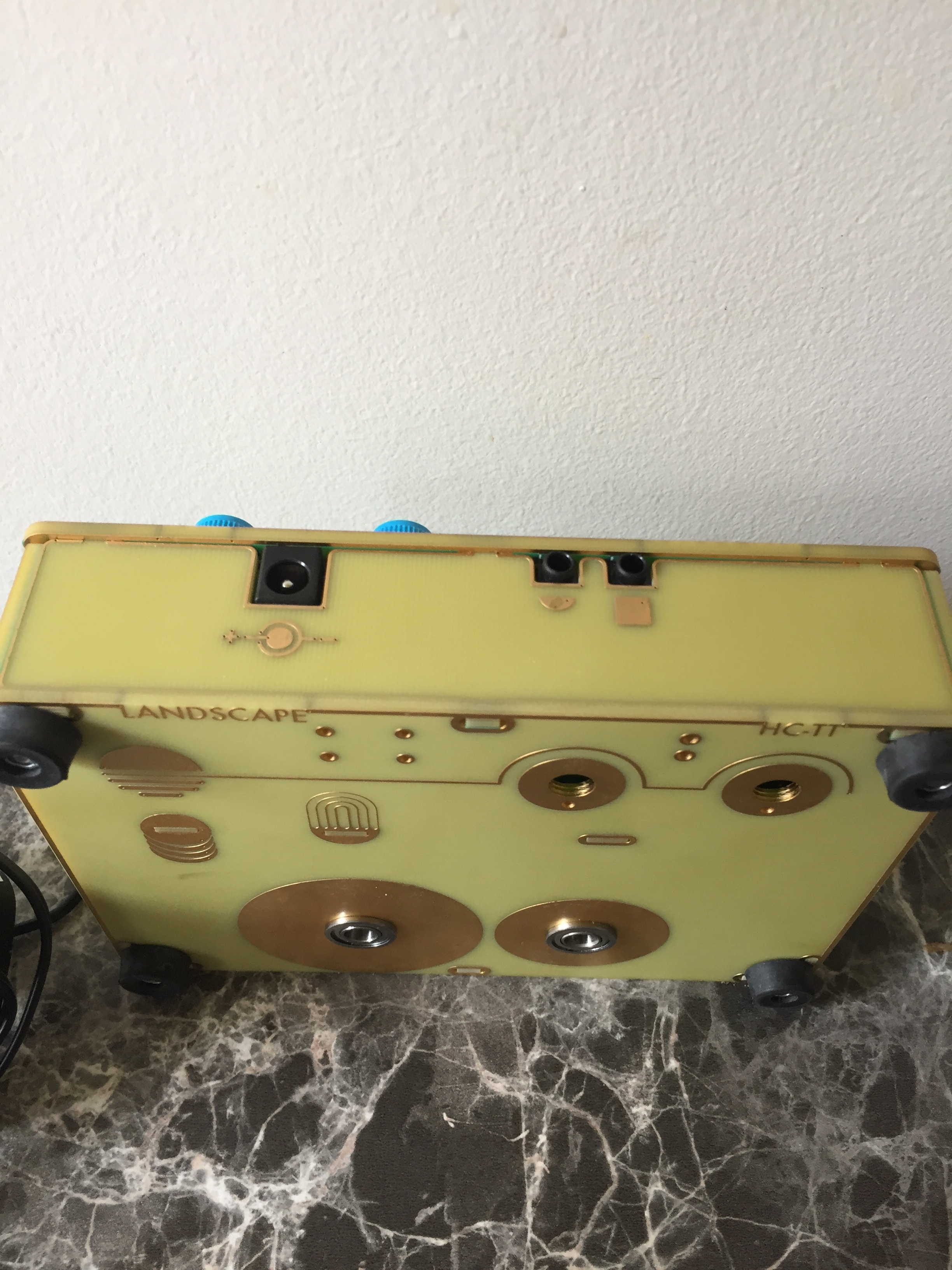

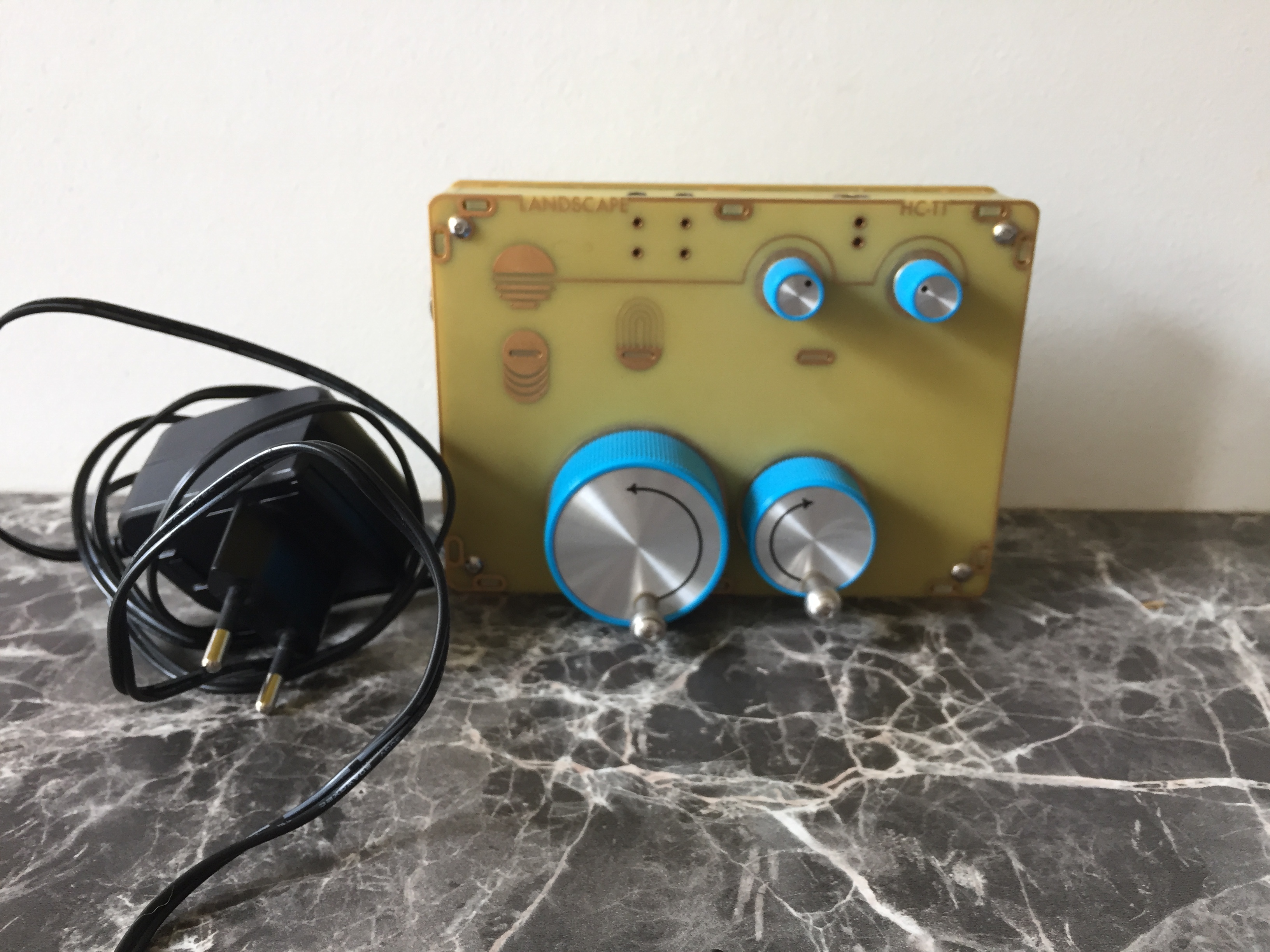

The HC-TT is a compact cassette manipulation device which allows you to play a cassette with your hands similarly to how you scratch a vinyl record.
Sound will only be produced while your hand is turning the large playback knob.
By turning this knob you are rotating the cassette spindle moving the tape across the internal tape head.
The knob plays a regular cassette in the forward direction and a homemade cassette loop in either direction. The blue switch is a momentary mute for both stereo channels.
There is no motor in this device.
It does not record, only outputs pre-recorded audio from a cassette.
SPECIFICATIONS:
Bushed aluminum case with laser engraved graphics (4.7" x 3.7" x1.4")
Large "playback" knob (directly moves a regular cassette in the forward direction and a homemade cassette loop in either direction)
Cassette tape opening along front edge (lift playback knob, slide in tape, reseat knob shaft into cassette spindle)
Blue momentary mute switch with spring return
Stereo L/R volume knobs
1/4" outputs (Stereo L/R)
3.5mm outputs (Stereo L/R)
9v Regulated (tip +) US power supply 100-240V AC
NOS stereo tape head
Circuit designed around NOS cassette deck preamp chip
Shipped with one randomly selected old cassette tape
