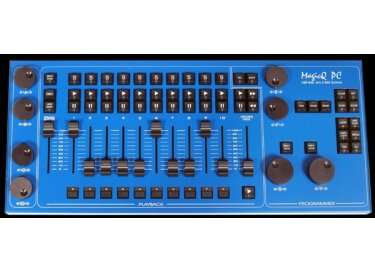

Chamsys MagicQ PC Wing

• Fabricant : Chamsys
• Modèle : MagicQ PC Wing
• Catégorie : Consoles d'éclairage mixtes
• Fiche créée le : 20/02/2006

MagicQ Maxi Wing

• USB Connection to PC or Mac
• Windows, Linux or OSX
• Programming & Playback Buttons
• 8 Encoders, 13 Faders
• 4 Direct DMX Outputs
• Dimmable LED Desk Lamp
• 18 Universes
• 202 Playbacks

The MagicQ Maxi Wing is the top of the range MagicQ USB Wing for controling lighting, video and LED from your PC or Mac.  The MagicQ Maxi Wing has all the faders, buttons and encoders found on full MagicQ consoles to enable full programming and playback capability.

The MagicQ PC Maxi Wing enables advanced show programming and playback through real faders, buttons and encoder wheels. The MagicQ PC Maxi Wing wing enables easy access to moving light parameters via the 8 rotary encoders, and live show control through the 10 playback faders and cue stack control buttons. In additional there are 4 fully patchable direct DMX outputs on the rear panel.

MagicQ is simple and easy to program, enabling really quick setup - you can be up and running your show in seconds. With unrivalled live editing and live timing options, impressive changes can be made live at the touch of a button - no need to spend hours programming
complex effects.

MagicQ PC software is free and uniquely the outputs are fully enabled, allowing you to run shows on up to 18 Universes.

The MagicQ PC software is the same software that MagicQ consoles run - enabling familiar and flexible GUI lighting control, media server connectivity options and in-built media server for LED grid arrays. And with the ability to transfer your show to other MagicQ consoles over the network or using standard USB memory sticks the MagicQ PC Maxi Wing can be used as a powerful off-line show editor or back-up system. The MagicQ Maxi Wing provides an immensely powerful control PC based console in a compact size. Ideal for use by touring Lighting Designers, or for installing into theatres, clubs, and venues, the Maxi Wing is the PC solution of choice for controlling lighting, video and LED.

Tracking / non-tracking option
Fixture, FX and gel library
In-built fixture editor
In-built media engine
LED pixel mapping
Fixture morphing and cloning
Rainbow colour picker (CMY, RGB, HSI)
Individual fade times on any channel
Easy fanning of parameters and times
Configurable faders - HTP, LTP, speed, size, masters
Theatre mark cues, split fades and inhibit masters
Client/server network architecture
Multiple console playback tracking
In-built web server
Remote console control
Visualiser support (including patch transfer)
Architectural zoning and day/date support
MIDI & SMPTE option
Optional flight case

Universes: 18
Channels: 9216
Number of fixtures: Up to 9216
Cues: 5000
Cue Stacks: 1000
Palettes: 3096
Groups: 1000
Media Server support: 50 (each different content)

Encoders: 8
Faders: 13
Buttons: 156
Direct DMX512 ports: 4
Dimmable LED console lamps: 1
Remote trigger input: 1
Security lock fixing: 1
Choice of colours: Blue
Universal Power Supply: 110 to 240 VAC

Width: 522mm
Depth: 370mm
Height: 75mm
Weight: 6kg

Flightcased Width: 610mm
Flightcased Depth: 450mm
Flightcased Height: 190mm
Flightcased Weight: 15kg (including standard accessories)
