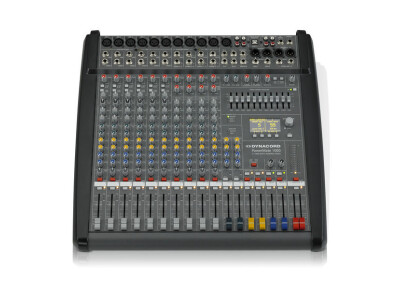

Argus du Dynacord PowerMate 1000-3
Attention, cette cote argus a plus de 6 mois.
Les prix indiqués dans les petites annonces des particuliers sur Audiofanzine ne sont pas nécessairement les véritables prix de vente ou d'achat.Les annonces avec options, ou constituant un pack, ne sont pas prises en compte.
Fiche technique
- Fabricant : Dynacord
- Modèle : PowerMate 1000-3
- Catégorie : Consoles amplifiées
- Poids du colis : 16.5 kg
- Autres dénominations : power mate 1000 3, powermate 1000 3, powermate10003, powermate1000 3, power mate 10 00 3, powermate 10 00 3, powermate10 003, powermate10 00 3
Dynacord Powermixer PM 1000-3 : 2x 1000 W RMS/4 Ohm, 6+4 channels
SPECIFICATIONS:
Channels (Mono + Stereo) 6 + 4
Auxiliaries (MON, FX, AUX) 2 Pre, 2 Post, 2 Pre/Post switchable
Maximum Midband Output Power,1 kHz, THD=1%,
Dual Channel:
into 2.66 Ohms 2 x 1350 W
into 4 Ohms 2 x 1000 W
into 8 Ohms 2 x 600 W
Rated Output Power,THD=0.1%, Single Channel:
into 4 Ohms 2 x 900 W
into 8 Ohms 2 x 450 W
Maximum Output Voltage of power amplifier, no load - 74 Vrms
THD at 1kHz, MBW=80kHz :
MIC input to Master A L/R output, +16 dBu, typical < 0.005%
POWER AMP INPUTS to Speaker L/R output < 0.075%
DIM 30, power amplifier, 60Hz, 7kHz < 0.05%
IMD-SMPTE, power amplifier, 60Hz, 7 kHz < 0.015%
CMRR, MIC input, 1 kHz > 80 dB
Equivalent Input Noise, MIC Input, A-weighted, 150 ? -130 dBu
Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ohms 105 dB
Output Stage Topology, amplifier Class D
Equalization:
LO Shelving +/- 15 dB / 60 Hz
MID Peaking, mono inputs +/- 15 dB / 100 Hz .. 8 kHz
MID Peaking, stereo inputs +/- 12 dB / 2.4 kHz
HI Shelving +/- 15 dB / 12 kHz
Master EQ, 11-band (63, 125, 250, 400, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz: +/- 10 dB / Q = 1.5-2.5
Filter:
LO-CUT, mono inputs f=80 Hz, 18 dB/oct
VOICE FILTER, mono inputs
FEEDBACK FILTER, MON1/2 70 Hz .. 7 kHz, Notch, -9 dB
Speaker Processing LPN, switchable
Display High Contrast OLED
Effects:
Type Dual stereo 24/48-bit multi effects processors
Effects presets 100 Factory + 20 User, Tap-Delay
Remote control Footswitch, MIDI
Digital Audio Interface Channels 4 In / 4 Out
AD/DA Conversion 24bit
Sampling Rate 44.1 / 48 / 88.2 /96 kHz
PC Interface USB 2.0, Female Type B
MIDI Interface 5-pin DIN connector, In / Out
Output Power Control Adjustale RMS Limiter
Protections Mixer Outputs (Relay controlled) MON1, MON2, MASTER A
Amplifier Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On-Delay
Distribué par MSC Distribution
