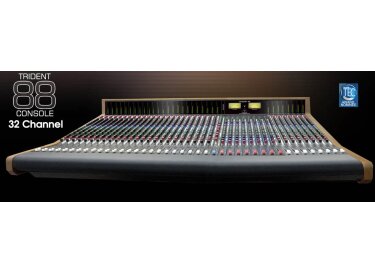

Trident 88-32

• Fabricant : Trident
• Modèle : 88-32
• Série : 88
• Catégorie : Consoles analogiques
• Fiche créée le : 13/02/2015

New analogue mixing console available in 5 setups: 16, 24, 32, 40 and 48+ channels

Input Section:

Separate Mic and Line Gain Control: Independently set your Mic and Line levels on each channel.
I/P Reverse Switch: Flips channel input to the monitor section.
Meter Select Switch: Allows you to choose metering from the Direct Out or Monitor Return.

Mic Pre:
A fully discrete Class A design mic pre with the option to add a Lundhal transformer to as many channels as you like. In addition the preamp has a full bypass post fader insert point that allows you to easily incorporate any external preamp from your collection or 500 Series rack.

EQ:
A 4 band fully sweepable Trident EQ is at the core of this console. Every channel not only has a full EQ but also a Tilt EQ on the Monitor section. In addition there is the ability to switch the full EQ from the Input path to the Monitor path. Furthermore the EQ has its own independent Insert. Like the preamp you can also insert to the EQ path and either bypass the EQ for any other outboard EQ or use them in conjunction with each other.

Master Section:
The master section features 8 AUX Masters each with Solo. AFL/PFL Master with level adjustment. In addition to you main speaker outs there are also 2 separate ALT Monitors, each with level control and on/off switches. Easy studio playback through Mono Auxes 1&2, as well as stereo over Aux 7/8. The Monitor section allows the return of 2 separate stereo signals direct into the master section with level and mute. Or plug your portable device directly into the panel with a top mounted 1/8th inch TRS input. Through Talkback control you can talkback to the Auxes in pairs, or the groups, or to the studio. Either through the onboard talkback mic or an external mic.

Monitor Section:
The Trident 88 is a split in-line console. This means you have inputs per channel to allow you to easily switch your workflow from tracking to mixing. On top of that all the of the Monitor inputs have their own TILT EQ. This means you have 2 inputs per channel, each with EQ.
The Trident 88 features 8 Aux sends all with pre or post fade selection, accessible on every channel. AUX 1/2 and 7/8 can be sent to the Monitor section. AUX 5/6 & 7/8 are both stereo with pan control for each.

Aux Section:
The Trident 88 features 8 Aux sends all with pre or post fade selection, accessible on every channel. AUX 1/2 and 7/8 can be sent to the Monitor section. AUX 5/6 & 7/8 are both stereo with pan control for each.

Distribué par Funky Junk France
