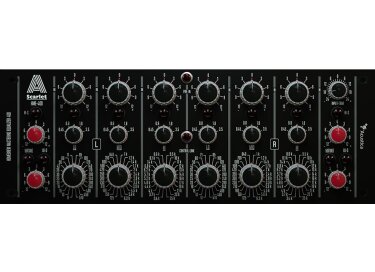

Acustica Audio Scarlet MHE-400

• Fabricant : Acustica Audio
• Modèle : Scarlet MHE-400
• Catégorie : Egaliseurs paramétriques logiciels
• Fiche créée le : 31/08/2015

stereo mastering EQ for Mac OS X and Windows sampled from hardware directly build by Acustica and based on the circuit diagrams of legendary vintage devices and using the Core6 engine

two-channel (L+R), featuring three parametric bands and two bi-frequency fixed shelves per channel

Bands can be switched in or out individually and left/right controls can be linked.

PRE-IN button enables (lamp ON) or bypasses (lamp OFF) the preamp stage of Scarlet.
CONTROL-LINK button links the controls of left and right channels
INPUT-TRIM:  This knob sets the input level from -24dB to +24dB, and is used to control the signal level inside the eq, the output level is than automatically compensated by the same amount of gain. At the first execution of the plug-in, input is set to ensure that you feed an appropriate level from the first stage of your signal path to the final one.
Each channel is controlled independently by an identical set of controls; sections are: LO, MID and HI, each section has controls for:

• Frequency
• Cut/Boost
• Q

In addition there are two buttons for low shelves that switch cut frequency between 50Hz and 100Hz.

• Low Frequency: from 11Hz to 570Hz;
• Mid Frequency: from 125Hz to 6300Hz;
• High Frequency: from 3400Hz to 25kHz;

Cut/Boost:

Cut/boost values range from -12dB to 12dB.

High and Low shelf filters:
High Shelf Frequency fixed at 3000Hz with adjustable gain ranging from -12dB to 12dB;
Low Cut Frequency fixed at 50Hz or 100Hz with adjustable gain range from -12dB to 12dB.
