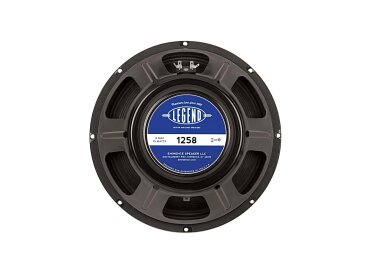

Eminence Legend 1258

Puissance supérieure, tonalité de cône sertie vintage pour guitare. Remplacement idéal Vintage alnico Jensen.
Coloration : American growl, mais avec de l'éclat, de la définition et des aigus énervés. Très vintage !
Genre : Rock and Roll, Country, Blues

Specifications

• Nominal Diameter: 12 " / 304.8 mm
• Voice Coil: 1.5 " / 38.1 mm
• Overall diameter: 305.5 mm
• Pitch Circle Diameter: 294.3 mm
• Section Diameter: 278.1 mm
• Diameter of fixing holes: 6.4 mm
• Depth: 125 mm
• Nominal Impedance: 8 Ohm(s)
• Nominal Load Capacity: 75 W
• Sensitivity (1 W / 1 m): 100.1 dB
• Frequency response: 80 - 4000 Hz
• Voice Coil Material: copper
• Magnet: Ferrite
• Depth of the magnetic gap: 7.92 mm

Thiele & Small Parameter

• Fs (Resonance Frequency): 94 Hz
• Re (DC resistance): 7.44 Ohm(s)
• Qms (mechanical quality): 6.15
• Le (inductance of the voice coil): 0.7 mH
• Qes (electrical quality): 1.18
• Qts (overall quality): 0.99
• Vas (equivalent volume): 32.5
• Mms (moving mass): 32 g
• BL (power factor): 10.9 T/m
• Xmax (maximum displacement): 0.5 mm
• Cms (elasticity of the suspension): 0.09 mm/N
• Sd (membrane area): 506.7 cm²
• Weight: 4,49 kg
