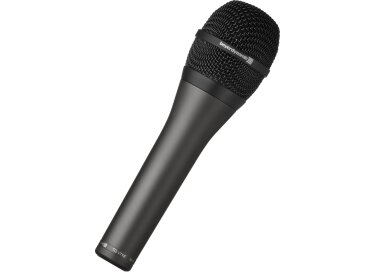

Beyerdynamic TG V71d

Micro dynamique hypercardioïde.

Remplace l'OPUS89.

Spécialement concçu pour une utilisation très près de la bouche, sans effet de proximité dans le registre grave : Rock, R'n'B, Hip-Hop.

Le diagramme hypercardioïde renforce l'insensibilité au larsen, même en environnement bruyant.

La suspension interne atténue fortement les bruits de manipulation.

Fourni avec pince MKV8.

TECHNICAL SPECIFICATIONS
Transducer type . . . . . . . . . . . . . Dynamic
Operating principle . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . Hypercardioid
Frequency response
Close miking . . . . . . . . . . . . . . . 35 - 18,000 Hz
Distant miking
(measured at 1 m) . . . . . . . . . . . 100 - 18,000 Hz
Rear attenuation at 1 kHz . . . . . > 25 dB at 110°
Open circuit voltage . . . . . . . . . . 3.2 mV/Pa (-50 dBV) ±2.5 dB
Magnetic field suppression. . . . . > 20 dB at 50 Hz
Nominal impedance . . . . . . . . . . 420 Ω
Load impedance . . . . . . . . . . . . ≥ 2 kΩ
Connection . . . . . . . . . . . . . . . . 3-pin XLR, male
Dimensions:
Length . . . . . . . . . . . . . . . . . . . . 185 mm
Shaft diameter . . . . . . . . . . . . . . 23/35 mm
Head diameter . . . . . . . . . . . . . . 54 mm
Weight (without cable) . . . . . . . 345 g

APPLICATIONS

The dynamic vocal microphone TG V71d with a hypercardioid polar pattern was created for loud stages. As soon as it is plugged in, it delivers a fascinatingly rounded and powerful sound – even without excessive tone control from the mixing console. Both the housing and the new, progressively damped capsule suspension are well-suited for the demands of the stage: handling noises are no problem with the TG V71d. Sound, ruggedness, design, rearattenuation, hum-buck coil – a real professional on loud stages.
