Odyssey FSQ Rev1, Clavier synthétiseur analogique de la marque ARP.

Neuf à partir de 1 299 € Prix moyen : 1 299 €

Fiche technique ARP Odyssey FSQ Rev1

  • Fabricant : ARP
  • Modèle : Odyssey FSQ Rev1
  • Catégorie : Claviers synthétiseurs analogiques
  • Fiche créée le : 18/01/2018

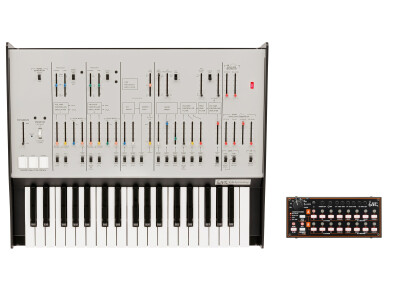

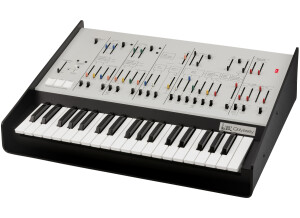

Reproduction grand format du synthétiseur analogique avec clavier grandes touches et séquenceur SQ-1 inclus, en édition limitée

Keyboard

37-note (Standard key or Full size key, No velocity sensitivity, No aftertouch)
Maximum Polyphony
2 voices for duophonic; normally monophonic
Controllers
Transpose Positions
2 octaves down, normal, 2 octave up
Proportional Pitch Control
b (Pitch down) Pad: about -2 / 3 octave
- (Modulation) Pad
# (Pitch-up) Pad: about +2 / 3 octave
Noise Generator
Noise Spectrum Types (white and pink)
Portamento
Maximum Speed
about 0.01 msec./oct
Minimum Speed
about 1.5 sec./oct
VCO (Voltage Controlled Oscillator)
Waveforms
Sawtooth, Square, Pluse (Dynamic Pluse)
Frequency Range
VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
Warm Up Drift
1/30 semitone from turn on max
Pulse Width
50 % – 5 %
Pulse Width Modulation
ADSR, +45 %
LFO, +15 %
Voltage Controlled Response
1 V/oct
Maximum Frequency Shifts
LFO sin wave, +1/2 oct.
LFO square wave, +1.5 oct.
ADSR, +9 oct.
S/H, +2 oct.
* VCO-1 is low note priority, VCO-2 is high note priority.
VCF (Voltage Controlled Filter)
Types
Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
Frequency Range
16 Hz - 16 kHz
Maximum Usable Q
30
Resonance
1/2 - self oscillate
Voltage Controlled Response
C3 key (left edge): 0 V
C6 key (right edge) 3 V
VCA (Voltage Controlled Amplifier)
Dynamic Range
80 dB
Ring Modulator
Type
Digital
Input Signal
VCO-1, VCO-2 (square wave)
Sample & Hold
Command Sources
Keyboard or LFO trigger
Sampled Signals
VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
ADSR Envelope Generator
Attack Time
5 msec. - 5 sec.
Decay Time
10 msec. - 8 sec.
Sustain Level
0 - 100 % or Peak
Release Time
15 msec. - 10 sec.
AR Envelope Generator
Attack Time
5 msec. - 5 sec.
Release Time
10 msec. - 8 sec.
Control Input Jacks
Pedal
6.3 mm monaural phone jack
Portamento Foot Switch
6.3 mm monaural phone jack
Audio Output Jacks
LOW
Connector
6.3 mm monaural phone jack
Maximum Output Level
-20 dBu@ 10 k ohm load
Output Impedance
10 k ohm
Audio Output Jacks
HIGH
Connector
XLR connector
Maximum Output Level
+4 dBu@ 1 k ohm load
Output Impedance
330 ohm
Headphones Jack
Connector
6.3 mm stereo phone jack
Maximum Output Level
50 mW + 50 mW@ 33 ohm load
Output Impedance
10 ohm
* Controllable by volume knob.
External Audio Input (Ext Audio Input) Jack
Connector
6.3 mm monaural phone jack
Maximum Input Level
-10 dBu
Input Impedance
22 k ohm
MIDI Connector
IN
USB Connector
Type B
CV IN/OUT Jacks
Keyboard CV (IN/OUT)
1 V/oct.
Connector
3.5 mm monaural phone jack
GATE IN/OUT Jacks
GATE IN
+3 V (minimum)
GATE OUT
+10 V, key down; 0 V all keys up
Connector
3.5 mm monaural phone jack
TRIG IN/OUT Jacks
TRIG IN
+3 V pulse min., 10 μsec. Duration minimum
TRIG OUT
+10 V pulse on key depression, 10 μsec. Duration
Connector
3.5 mm monaural phone jack
Power Supply
AC adapter (DC 12V) + power cable
Power Consumption
7.1W
Dimensions (W x D x H)
585 x 466 x 163 mm / 23.03” x 18.35” x 6.42”
Weight
7.3 kg / 16.09 lbs.
Design Variations
White (ARP ODYSSEY FS Rev1), Black and Gold (ARP ODYSSEY FS Rev2), Black and Orange (ARP ODYSSEY FS Rev3)
Included Items
AC adapter (DC 12V), power cable, phone cable, mini-phone cable
Accessories
Expression/Volume Pedal
XVP-20
Volume Pedal
VP-10
Pedal Switch
PS-3
Pedal Switch
PS-1
Patch Cables
SQ-CABLE-6
»
