Fiche technique
- Fabricant : Therevox

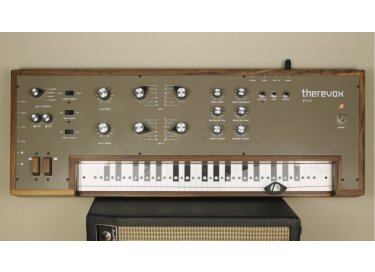

- Modèle : ET-4.3
- Catégorie : Claviers synthétiseurs analogiques
- Autres dénominations : et43, et4 3
- MIDI over USB output with 4 modes of operation
- Expression Pedal / CV input assignable to Osc 1+2 Pitch, Osc 2 Pitch, Osc 2 PWM and Osc 1+2 Gain
- Intensity key "Hold" knobs for hands-free playing
- Line-Level effects loop
- External audio input / effects return with level control and clipping indicator
- Separate oscillator outputs (1/4" TRS)
- Headphone output with volume control
- Two independent temperature compensated analog oscillators with sync function
- Six octave positions for each oscillator covering C0 to C8
- Six waveforms (sine, triangle, rectified sine/octiviant, 50% pulse, 30% pulse, 10% pulse (white noise on Osc 2)
- Adjustable ring with metal reinforced wire
- Replaceable reference keyboard with alternatives available (ex: lapsteel, specific scales, microtonal)
- Dual wooden pressure-sensitive intensity keys with approx. 3/4" travel
- Low-pass filter with adjustable cutoff frequency (can be controlled by expression pedal or external CV)
- Internal spring reverb with dry+wet mix control
- "Silent" tuner output, switchable between oscillators
- Line-level (+3db) output with volume control
- Control Voltage (CV) outputs for ring position (1V/octave) and both intensity keys (0 - 10V)
- 16VAC power input
- Dimensions: 30 x 11 x 4"
- Includes: Printed manual, USB cable, power supply (110-120V and 220-240V Available) and extension cable.
- Made in Canada
»
