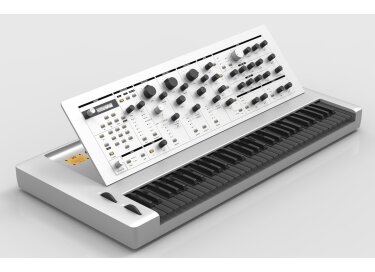

Design Box The 20

• all black high-end Fatar TP8 61 keys keybed with aftertouch

• 35 pots with aluminium caps

• 3 x 7 positions rotary switches with aluminium caps

• 1 rotary encoder + push function with aluminium cap

• 2 x 16 digits backlit liquid crystal display (black typo on white background)

• aluminium Pitch and Mod Wheels

• Up to 999 programmable sounds

• Fast and efficient sound selection via numeric keypad

MODULATION

• 2 fast LFOs per voice with adjustable Speed and Depth

• 1 extra modulation routing for Mod Wheel, with adjustable Speed and Depth

     - LFO Shape: Sawtooth, Rectangular, Triangle, Sine, Sample & Hold, Ramp

     - Modulation Destinations: OSC 1, (+) OSC 2, (+) OSC 3, PWM / Wave / FM, Volume, Filter Cutoff

SOUND GENERATION

• 24 voices polyphony - Monophonic mode with single or multiple trigger

• 3 Oscillators per voice

     - Range from 64' to 1' with Semitone ant Detune controls

     - Shapes: Sawtooth, Square, Triangle, Sine, Pulse (with Pulse Width Modulation)

     - OSC 1 with 66 Original PPG Wavetables + Sample Player (60MB internal memory)

• FM - Frequency Modulation of Sine and Triangle - Oscillator Hard sync (OSC 2 to OSC 3)

• Noise Generator - White and Pink noise

• Mixer with Volume and On/Off switch for each Oscillator and Noise

AUTO DUAL MODE

• Split or Layer mode / programmable split point for each program

FILTER & AMPLIFIER

• 1 Multi Mode Filter per voice

     - 24 / 12dB

     - Lowpass

     - Highpass

     - Bandpass

     - Resonance up to Self-Oscillation and beyond - adjustable Key Track and Drive

• 2 fast Envelopes per voice (Filter-Amplifier) with Amount and Velocity control (Filter+Ampli)

ARPEGGIATOR

• Powerful Arpeggiator - Latch mode - syncable to MIDI Clock

     - Direction Up, Down, Alternate - Range up to 10 octaves

EFFECTS

• 2 simultaneous Effects

     - Effect 1: Chorus / Phaser / Flanger

     - Effect 2: Reverb / Delay / Reverb+Delay

CONTROLS & CONNECTIONS

• Master Volume Control

• Power Switch

• Expression pedal input

• Sustain Pedal input

SPL SUPRA OP-AMP

SPL analogue audio outputs & headphone amplifier

     - Discrete high voltage SUPRA op-amps

     - Operating voltage: 120V Rail (+/-60V)

Line Outputs

     - XLR & Stereo Jack connectors, electronically balanced

     - Frequency Range: 4Hz to 480kHz (-3dB)

     - CMR: -82dBu (at 1kHz, 0dBu input level and unity gain)

     - Noise: Unweighted -101.87 dB; A-weighted -104.76dB; CCIR: -96.1dB

     - Dynamic Range: 134.37dB

Headphone Output

     - 6,3-mm TRS connector

     - Alps RK27 „Big Blue“ Volume Control

     - Pin wiring: Tip = Left, Ring = Right, Sleeve = GND

     - Impedance: 5 ohm

     - Attenuation Factor: 180@40 Ohm

     - Frequency Range: 10Hz to ›480kHz ( -3dB)

     - Crosstalk at 1kHz: -106dB

     - Noise: Unweighted -101.12dBu; A-weighted -103.98dBu, CCIR -95.02dBu

Dynamic Range: 133.62dB

MIDI IN / OUT

• USB connector for MIDI IN/ OUT, Firmware Update, Samples Loading (with Spectre)

     - uses standard USB MIDI driver provided by host computer OS

     - Windows ME minimum, Windows XP or newer recommended

     - Mac OS X 10.2 minimum, Mac OS X 10.3 or newer recommended

• Built in power supply

INCLUDED ACCESSORIES

• Solid Case with generous padding

• Power Cord

• Printed User Manual in English and German

• 20 Spectre Software (on USB stick)

SIZE

38,19" x 15,94" x 4,33"         (97 cm x 40,5 cm x 11 cm)

WEIGHT

26 Kg / 57,4 Pounds lb
