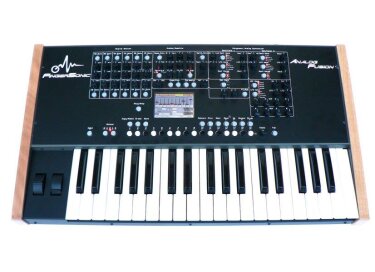

FingerSonic AnalogFusion

Polyphonic Analog and Digital, multitimbral synthesizer

CPU:
3 x ARM Cortex processors

Power supply
12v DC external adaptor (included).

Data storage
Internal memory
SDCARD

I/O:
USB 2.0 High speed B connector
6.35mm headphones
2 x 6.35mm Mix output (L & R)
1 x 6.35mm Analog synth ouput
1 x 6.35mm Analog Bass ouput
1 x 6.35mm DAC output
3 x DIN MIDI input, output, thru
3.5mm CV/Gate interface 1V/Octave
1 x 6.35mm Pedal input

Display
3.5″ 320×480 TFT LCD

Firmware
FingerSonic FaderOS AnalogFusion edition V 1.0

Analog Synth Engine
6 x 100% analog voices
2 x oscillators per voice (SAW/Square/PWM/Triangle/Noise)
3 x Hardsync mode and Ring modulation available
3 X lfos (SAW/Square/PWM/Triangle/Random) to modulate pitch, filter and PWM
Multimode filter LP24db/LP12db/BP/HP

Analog Bass Engine
1 x additional pure analog voice dedicated to Bass
1 x oscillator (Saw/Square)
1 x 24db VCF

Digital Synth Engine
6 x digital synth voices configurable as:
Virtual analog or
FM 6 operators or
Wavetable synthesis
10 parts digital drums
Sample rate 44,1Khz
Bit depth 16 bit
Channels: 1 stereo

Sequencer/arpeggiator
Integrated easy to use 14 parts sequencer
3 x arpeggiators

Dimensions
640 X 360 X 100 mm
