Acheter neuf Korg Krome EX 73

  • Music Store En stock / Livré en 48h 1 111,00 €
  • Michenaud En stock / Livré en 24h 1 136,00 €
  • Woodbrass En stock / Livré en 24h 1 249,00 €
  • Energyson En stock / Livré en 48h 1 249,00 €
  • Cultura En stock / NC 1 249,01 €

Annonces Krome EX 73

Alerte nouvelle annonce

News

Images

Fiche technique

  • Fabricant : Korg
  • Modèle : Krome EX 73
  • Série : Krome
  • Catégorie : Workstations
  • Poids du colis : 1.4 kg
  • Fiche créée le : 16/01/2019

Workstation de 73 touches avec écran tactile et une nouvelle collection sonore

KROME EX-61
Semi Weighted Keyboard. Velocity sensitive is supported, after touch is not supported.
Standard C2 - C7 (transposable in the range [C1...C6]-[C3...C8])
KROME EX-73
Semi Weighted Keyboard. Velocity sensitive is supported, after touch is not supported.
Standard C1 - C7 (transposable in the range [C0...C6]-[C2...C8])
KROME EX-88
NH (Natural Weighted Hammer Action) keyboard. Velocity sensitive is supported, after touch is not supported.
Standard A0 - C8 (transposable in the range [A-1...C7]-[A1...C9])
*The NH keyboard reproduces the touch of an acoustic piano, with a heavier feel in the low register and a lighter feel in the upper register.

System

EDS-X(Enhanced Definition Synthesis - eXpanded)

Sounds

Maximum Polyphony
120 voices (120 Oscillators) / Single Mode, 60 voices (120 Oscillators) / Double Mode
*The maximum simultaneous voice polyphony will vary depending on oscillator settings, velocity crossfading and whether you are using mono or stereo multisamples.
PCM Memory
4 GB (In case of 48 kHz, 16-bit Linear PCM converted)
728 multisamples (including 44 Stereo multi-samples)
2,502 drumsamples (including 574 Stereo Drumsamples )
Program
Oscillator
OSC1 (Single); OSC1 + 2 (Double): Stereo multisamples are supported 8 velocity zones per oscillator with switching, crossfades and layers
Filters
Four types of filter routing (single, serial, parallel, 24 dB). Two multi-mode filters per oscillator (low pass, high pass, band pass, band reject)
Driver
Per-voice nonlinear driver and low boost
EQ
Three bands, with sweepable mid
Modulation
For each oscillator, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), two AMS mixers, Pitch EG, Common LFO, two common key tracking generators
Combination
Timbre Number
Max 16. For each Timbre, keyboard and velocity split/layer/crossfades.
Modifications to the program settings via the Tone Adjust function.
Drum Kit
Stereo and mono drum samples. 8 velocity zones switch (crossfades and layers)
The number of Combination / Program / Drum Kit
User Combination
768 Combination (512 Preload)
User Program
1536 Program (896 Preload)
User Drum Kit
80 Drum Kit (48 Preload)
Preset Program
256 GM2 Program + 9 GM2 Drums Program

Effects

Insert Effects
5 Insert Effects (stereo in/out)
Master Effects
2 Master Effects (stereo in/out)
Total Effect
1 Total Effect (stereo in/out)
Timbre / Track EQ
3-band EQ per in 1 Timbre / in 1 Track
Effect Types
193 types (Usable as insert, master, or total effects. However, double-size effects cannot be used as a total effect.)
Modulation
Dynamic Modulation, 2 Common LFO
Effects Control Busses
Stereo side chain (Limiter, Gate, Vocoder etc.)
Effect Preset
32 preset per effect

Polyphonic Arpeggiator

Program Mode
1 unit
Combination, Sequencer Mode
2 units are available
Number of pattern
5 preset Arpeggio pattern, 1,088 User Arpeggio pattern (960 Preload)

Drum Track

Preset Patterns
710 patterns (Common with the preset pattern of the Sequencer mode)
User Patterns
1,000 patterns (Pattern created in Sequencer mode can be converted to drum track user pattern)
Others
Configurable “Trigger Mode / Sync / Zone”

Sequencer

Tracks
16-track + 1 master track
Number of Songs
128 Songs
Resolution
♩=1/480
Tempo
40.00 - 300.00 (1/100 BPM resolution)
Maximum memory
210,000 MIDI events
Template Songs
16 preset / 16 user template songs
Cue List function
20 Cue List
Songs can be arranged consecutively or repeatedly in up to 99 steps, a cue list can be converted back into a song.
Pattern / RPPR (Realtime Pattern Play and Recording)
710 Preset / 100 User pattern (Per song). 1 pattern set per song
Format
KORG (KROME) format, SMF format 0 and 1

Media

Load, Save, Utility, Data filer functionality (Save and Load MIDI System Exclusive Data)

Controllers

Controllers
Joystick, SW [1], SW [2]
Realtime Control
[SELECT] Switch: TONE, USER, ARP
4 Knobs: Modulation, User, Arpeggio control
Drum Track
[DRUM TRACK] Switch: On/Off
Arpeggiator
[ARP] Switch: On/Off

User Interface

Display

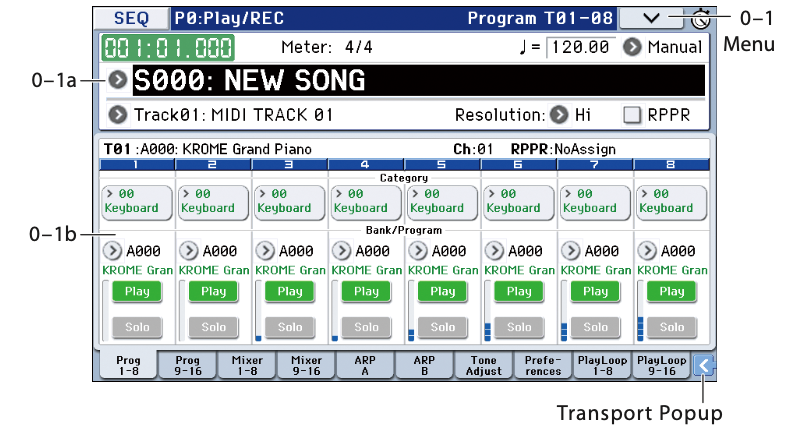

Touch view graphical User Interface, 7 -inch Color TFT LCD, 800 x 480 pixel, Onboard LCD brightness control
Mode Switches
[COMBI], [PROG], [SEQ], [GLOBAL], [MEDIA] Switch
VALUE controllers
[VALUE] Dial, [INC], [DEC] Switches, 10 key block ([0] - [9], [-], [.], [ENTER], [COMPARE])
BANK Switches
[A], [B], [C], [D], [E], [F] switches (in Combination mode, [A], [B], [C], [D] switches are available)
SEQUENCER switches
[PAUSE]、[REW]、[FF]、[LOCATE]、[REC]、[START/STOP]
TEMPO
TEMPO
Others
[PAGE] switch, [WRITE] switch, [EXIT] switch, [VOLUME] knob, Contrast knob

Outputs

AUDIO OUTPUT, L/MONO, R
6.3mm (Mono) Phone jack, Unbalanced.
Output Impedance: 1.1[kΩ] (L / Mono terminal: in case of Mono output, = 550[Ω]).
Maximum level: +16.0 [dBu], Load Impedance: more than 10 [kΩ].
Headphone Output
3.5mmStereo phone jack.
Output Impedance: 33[Ω].
Maximum level: 60 + 60 [mW] (In case of 33[Ω] Loaded)

Control Input

DAMPER (Half Damper supported), ASSIGNABLE SWITCH, ASSIGNABLE PEDAL

Others

MIDI
IN, OUT
USB
USB-MIDI Interface (TYPE B) x 1
SD Card Slot
Max 2 GB / SD Memory Card is supported
Max: 32 GB/ SDHC Memory Card is supported (SDXC Memory Card is not supported)

Principle Specifications

Power
Power supply (DC12V 3.5A), POWER switch
Power Consumption
13W
Dimensions (W x D x H):
KROME EX-61: 1,027 mm × 313 mm × 93 mm / 40.43 x 12.32 x 3.66 inches
KROME EX-73: 1,191 mm × 313 mm × 93 mm / 46.89 x 12.32 x 3.66 inches
KROME EX-88: 1,448 mm × 383 mm × 131 mm / 57.01 x 15.08 x 5.16 inches
Weight
KROME EX-61: 7.2 kg / 15.87 lbs.
KROME EX-73: 8.2kg / 18.08 lbs.
KROME EX-88: 14.7kg / 32.41 lbs.
Included Items
AC Adapter,

Accessories (sold separately)

Keyboard stand
Standard-S-ABK (for 61 key model)
Standard-M-SV (for 73 key model)
Standard-L-SV、L-ABK (for 88 key model)
Soft shell cases
SC-KINGKORG/KROME (for 61 key model)
SC-KROME 73 (for 73 key model)
SC-KROSS2 88/KROME 88 (for 88 key model)
Expression/volume pedal
XVP-20
Foot controller
EXP-2
Damper pedal
DS-1H
Pedal switch
PS-1
PS-3
