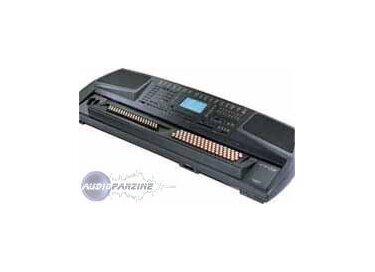

Ketron X8 HD

X8
Keyboard features 6 Velocity Curves. Split. Bend & Modulation Wheels. Aftertouch. Right: 53keys. Basses: 120 keys. Systems French, Belgique, International, Hollandais.
Polyphony 64 notes. 32 Multitimbral.
Sound Source 276 Sounds. 20 Drum Sets. 231 Percussion. PCM, Analog (Saw, Square, Sine), FM Voicing.
User Voices 128 programmable User Voices. Controls: ADSR, Filter, LFO, Wheels, Aftertouch, Effect.
Sound Card Flash Card 8Mbytes (optional).
Sound Ram SIMM 16 Mbytes
Factory Styles 198 ROM Styles (2 Banks x 99 ). 10 parts: Drums, Bass, Groove, 5 Chords, Lower 1, Lower 2. 4 Arrangers, 3 Intros, 3 Endings, 4 Fill Ins. Jump. Arrange Lock: Drum, Bass, Chords. Bass to Lowest. Bass to Root. Manual Bass. Bass Octave. Bass Sustain. Pedal board. Swell to Right. Lower octave. Lower Hold. Left Level balance. Key Start. Key Stop. Restart. Count In. Start. Hold. Tempo Slow / Fast (40 – 250 ).
Custom Styles 198 Custom Styles free programmable with Parameter Editing from Factory Styles
Drum Mixer 10 Drum sections: Kick, Snare, Hi Hat, Cymbal, Tom/Fx, Tambourine, Latin 1, Latin 2, Latin 3, Groove. Drum On/Off switches with controls for Volume, Reverb, Pan pot.
User Drum Set 4 programmable User Drum Sets. Pitch and Key Shift functions.
Patterns Up to 99 internal Patterns. Flash RAM 2Mbyte expansion (optional). Recording and editing functions.
Registrations 198 Internal Block Registrations .Up to 999 Single Disk Registrations per Folder.
Programs 128 Programs. 4 Voices. 4 splits. Functions: Volume, Shift, Pan, Tune, Effects, Duet, Trio, Sustain, Portamento, Velocity switch.
Drawbars 8 Digital Drawbars.16 programmable Organ effects. Click, 2nd and 3rd Harmonic percussion.
One Touch 48 One Touch settings for Right hand. (2 Banks x 24 )
2nd Voice 2nd Voice programmable on Voices for Bank 1, 2, User and Drawbar.
2nd Voice Edit Voice change, Volume, Transpose.
Octave Up/Down +/- 1 octave.
Harmony Automatic harmonization effects: Full, Jazz, Double up, Double down, Bluegrass, Trill, Repeat, Repeat Speed.
Portamento Rate control +/- 64. Mono Legato function.
Transposer +/- 24 halftones.
Aftertouch Assignable to Cut Off, Volume, Bend, Slide, LFO. Attack, Threshold and Sensitivity control.
Modulation Wheel LFO to Pitch, to DCF, to DCA, Wha Wha, Swell, Rate.
Pitch Wheel Tune control +/- 99 cents. Vibrato On / Off. Bend value 0/24. Bend to LFO, DCF, DCA.
Arabic Scale Tune + / - 99 cents per note. 6 Arabic sets footswitch assignable. Up to 198 Arabic scale setups with Registrations.
Accordion Mode International, Belgique. Left /Right Velocity control. Bass Octave, Bass Sustain, Bass to Chord recognition, Lower, Octave. Manual Drum assignable to Bass and Chord.
Effects 2 digital multi-effect DSP’s. 60 different Effects. Reverberation, Chorus, Flanger, Feedback, Delay, Wha-Wha, Distortion, Overdrive, Rotor: Slow/Fast, Equalizer +/- 12 db (Low, Middle, High). 16 programmable User Effects.
Sampler 8 Mbyte Sampling 16 Bit - 44.100 KHz. Recording: Time, Trigger, Loop type, Reverse, Delete. Load & Save. Sample Edit: Start, End, Level, Pitch, Zoom, Key, Tune. Up to 8 Multisamples with 32 splits each. Multisample (MSP) edit: A,D,S,R, Cut Off, Velocity, Effects, Octave, Level. Wave files supported (max. 7 seconds.)
Vocalizer (optional). Harmonizer, Vocoder, Melody types, Midi Vocalist track, Left and Right assignment, Reverb, Delay, Transpose, Level, Hold. Filter edit: Formant, Frequency, Resonance, Equalizer. 3 band Equalizer separate for Micro and Vocalizer.
Midi 32 MIDI Channels. General MIDI standard.
Sequencer 16 - tracks. 30.000 Notes. Up to 300.000 notes with 4Mbyte SIMM (optional).
Floppy Disk Drive 3,5 “2DD/2HD, SMF Song Playback. Real Time Song Recording. 0/1 Format. Data Save/Load for Custom Styles, Patterns, Programs, Registrations, User Drum Set, User Voice, Sounds. Song Play/Pause. Songs with Lyrics. Karaoke (Reverse, Underlined, Mark). Juke Box, Lead & Lyric On/Off. Song List. Song Text (Font 1/2).
Video Interface (optional ).
Hard Disk From 1Gbyte (up to 8 Gbytes max). Type: ATA – IDE 2,5”. Up to 99 Folders. 999 Files per Folder.
Computer Interface PC / Mac interface ( Cables & software optional)
Display 240 x 128 pixel backlit graphic TFC.
Out Assign GM / Keyboard Out assignment to 4 audio Outputs.
Amplification 2 x 22 W RMS. 4 Speakers. Speaker On/Off.
Inputs Stereo Headphone. 2 Line Inputs: Left/Mono, Right. Microphone stereo input. Gain control. Level, Pan/pot, Echo, Reverb, Pitch Shift +/- 12, Dry.
MIDI MIDI In 1, In 2, Out, Thru.
Outputs Left/Mono (1), Right (2), 3, 4. Sustain Pedal. Volume Pedal. Footswitch. Computer interface.
Standard accessories Power supply cord.
Optional accessories Flash Card 8Mbyte. Sound Bank (from 1 to 8 Mbytes). Pattern Flash expansion 2Mbyte. Sequencer SIMM expansion 4 Mbytes. Volume Pedal. Footswitch FS 6 / FS 13. Vocalizer kit. Sustain Pedal. Sustain Pedal Piano type. Midi Pedalboard. Volume Pedal 4 switches. 9 effect Manual switch. Hard Case. Video Interface. Computer Interface kit for PC ( Cable & Software ) Computer Interface kit for Mac (Cable & Software)
Dimensions 17 x 40,5 x 15,5 Cm.
Weight Kg.16 approx.

UTILISATION

La configuration générale reste asser simple, mais suis sur ketron depuis pas mal d'années
l'editions des sons reste simple, il y a asser de doc fournit avec dans le manuel

AVIS GLOBAL

Je l'utilise depuis sa sortie il doit y avoir 7 ans...
j'adore le parametrage total de tout, il est tres detaillé le XD8 et XD9 onr été une version simplifié du X8, ce qui m'a fait garder mon X8
tres tres bon clavier, (son, pattern,arrangeur) il vaut son prix !
je ne regrette pas mon achat, je fait du baloche et des annimations en formation avec mon X8 sans le moindre souci! je l'ai fait acheter par d'autre collegue, dommage qu'il ne ce produise plus ...
