Lab Gruppen ACN 2S

• Fabricant : Lab Gruppen
• Modèle : ACN 2S
• Catégorie : Filtres actifs
• Fiche créée le : 20/02/2006

Filter type: 4-pole, state variable

Slope: 24 dB/octave (12 and 18 dB/octave optional)

Crossover Frequencies: 40, 50, 60, 65, 75, 82, 90, 100, 110, 115, 125, 135, 140, 150, 160 and 165 Hz.

Subsonic speaker protection: High-pass Filter at 40Hz 18dB/octave

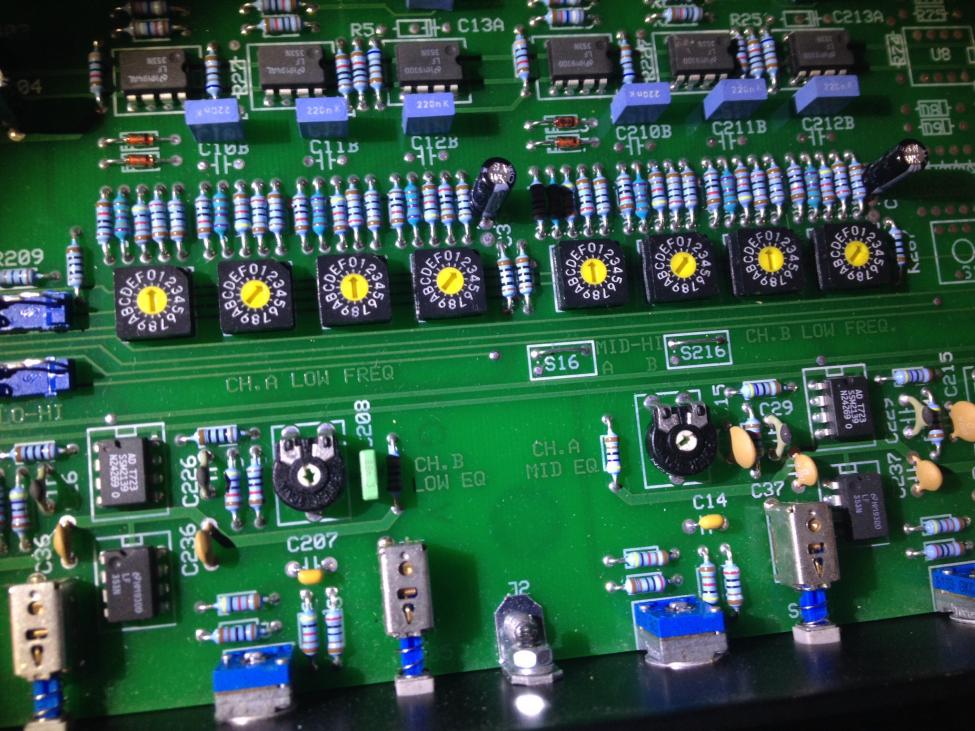

EQ: Low, Mid, High Shelving Equalisation with boost at +12 dB max; adjustable on PC-board.

Input:

Max Input Level: 0dBu ref. 0,775 Vrms 20dBu

Input Impedance;

Active balanced: 20 kohms

transformer balanced: optional

Output:

Max Output Level;

in 5 kohms: 20 dBu

600 ohms: 17 dBu

Gain, adjustable: ±8 dBu

Distortion:

TDH @ 0 dBu,

summed outputs 0,02% typically

Dynamic Range: 110 dB

Front Panel:

Gain Controls: (4) Low - High

Mute Controls: 4

On Indicator: Green Led

Rear Panel:

Input Connectors: (2) XLR type, 3 pin female (pin 2+)

Output Connectors: (4) XLR type, 3 pin male, pin 2 output

Power Supply 220 V - 110 V, 50-60 Hz

Overall Dimensions:

483 mm (19") W

x44 mm (1¾") H

x135 mm (5,3") D

Approvals: CE                                 Emission EN- 55 103-1, E3

SEMKO, DEMKO, NEMKO, FEMKO

Immunity EN 55 103-2, E3, with S/N below 1% at normal operation Level.

Normal operation level 1/8 of full power or -9dB below clip point.

Safety EN 60 065, class I
