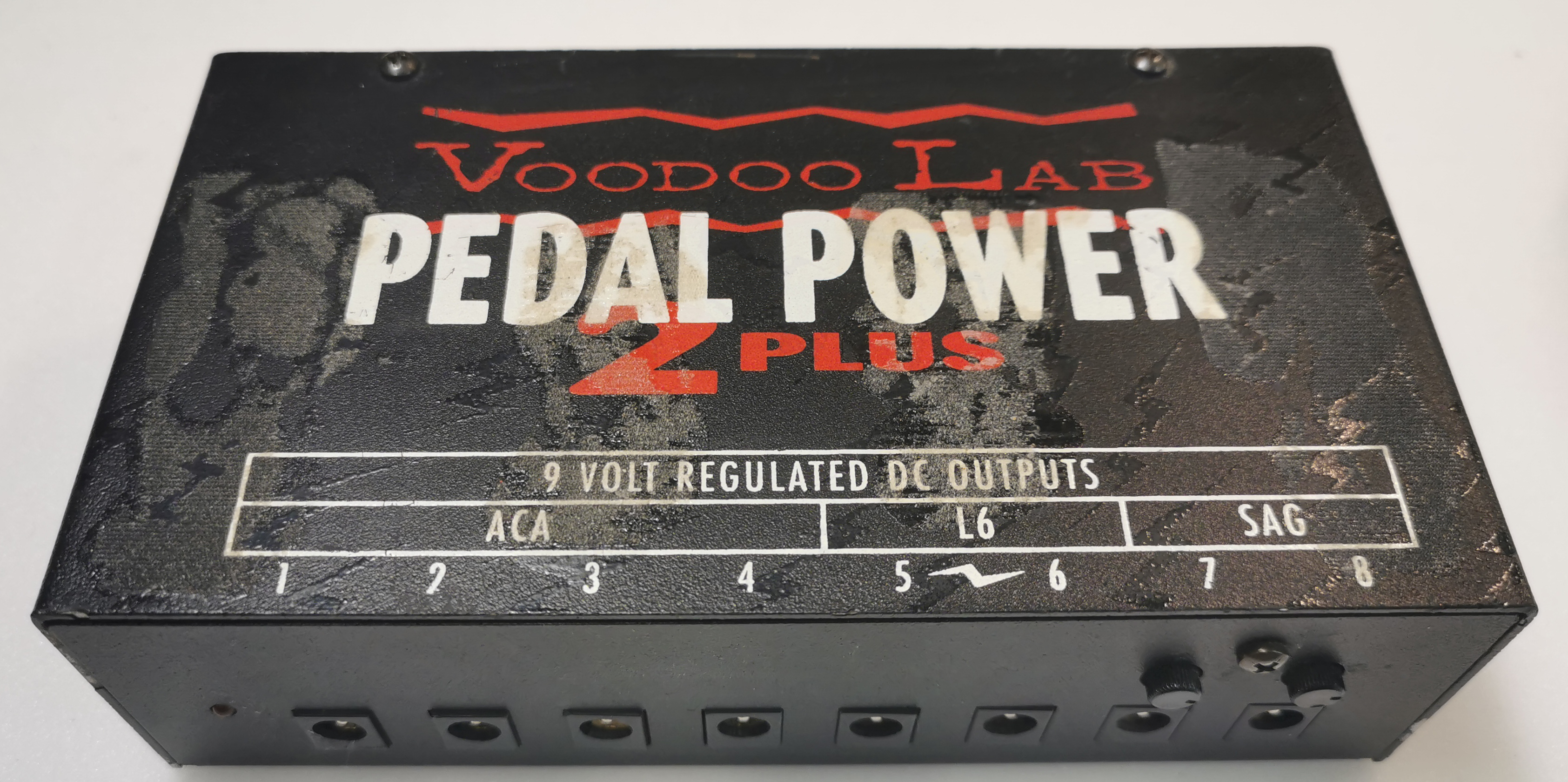

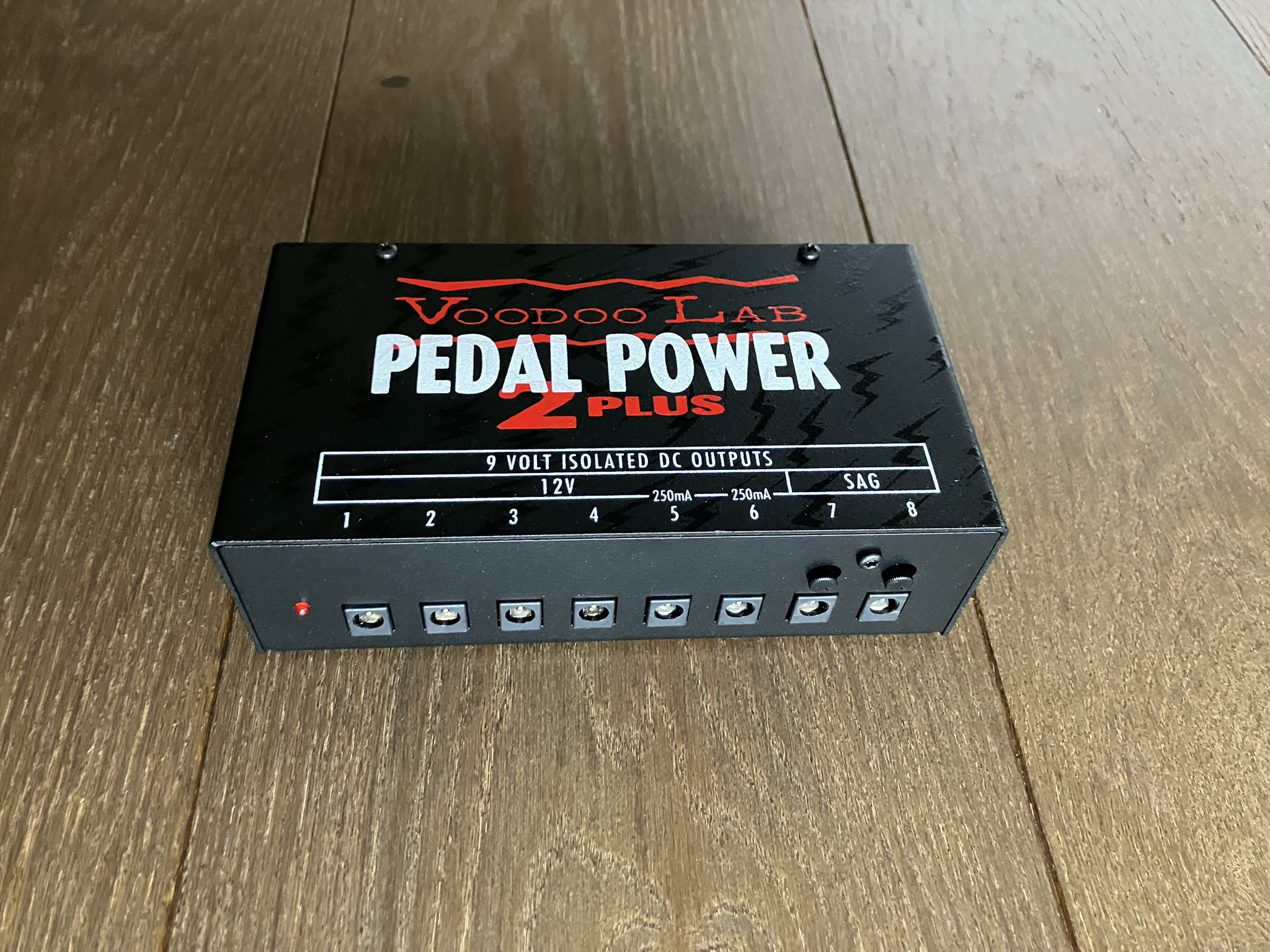

Voodoo Lab Pedal Power 2 Plus

• Fabricant : Voodoo Lab
• Modèle : Pedal Power 2 Plus
• Série : Pedal Power
• Catégorie : Alimentations pour pédales
• Poids du colis : 1.4 kg
• Fiche créée le : 28/11/2005

La Pedal Power 2 Plus (pp2+ pour les intimes) est La Référence des alimentations à sorties isolées.

Features

9/12V (x4) – Standard 9V and 12V Boss ACA
With each one of these four outputs delivering 100mA, you can easily power any 9V battery-operated pedals. Boss pedals that specify the PSA adapter operate at 9V like most other pedals. Boss pedals that require the ACA adapter operate at 12V which can be selected via switches underneath the Pedal Power 2 Plus. Any one of these outputs can be individually selected to run at 9V or 12V.

9V (x2) – High Current 9V and Line 6 Modelers
These two outputs each deliver 250mA allowing you to run high current draw effects like the Boss DD-20 Giga Delay or Line 6 DL4 Delay Modeler. Via switches underneath the Pedal Power 2 Plus, these two outputs can be separately configured for regulated (Boss Twin Pedals) or unregulated (Line 6 Modelers) power allowing you to run both units if so desired. These outputs can also power any standard 9V effects as well.

9V (x2) – Standard 9V With Battery Sag Control
These outputs each have an available 100mA of power, but also allow you to SAG the voltage from roughly 4V to 9V. This feature can be enabled via the bottom panel switches. The SAG control is mostly useful for transistor-based fuzz, octavia, and distortion circuits, as most modern opamp designs are minimally affected by variations in supply voltage. We recommend turning SAG off if you’re going to run digital pedals like delay, chorus, and reverb.

18V/24V – Using Custom Cables
All of the outputs on the Pedal Power 2 Plus (and the original Pedal Power) are completely isolated allowing you to create different voltages. You can run effects like the current MXR Flanger by combining two 9V outputs to create a single 18V supply. By switching two outputs into 12V ACA mode, you can join them together to create a 24V output for powering numerous Electro-Harmonix stompboxes including the Deluxe Memory Man.

Specifications

Input

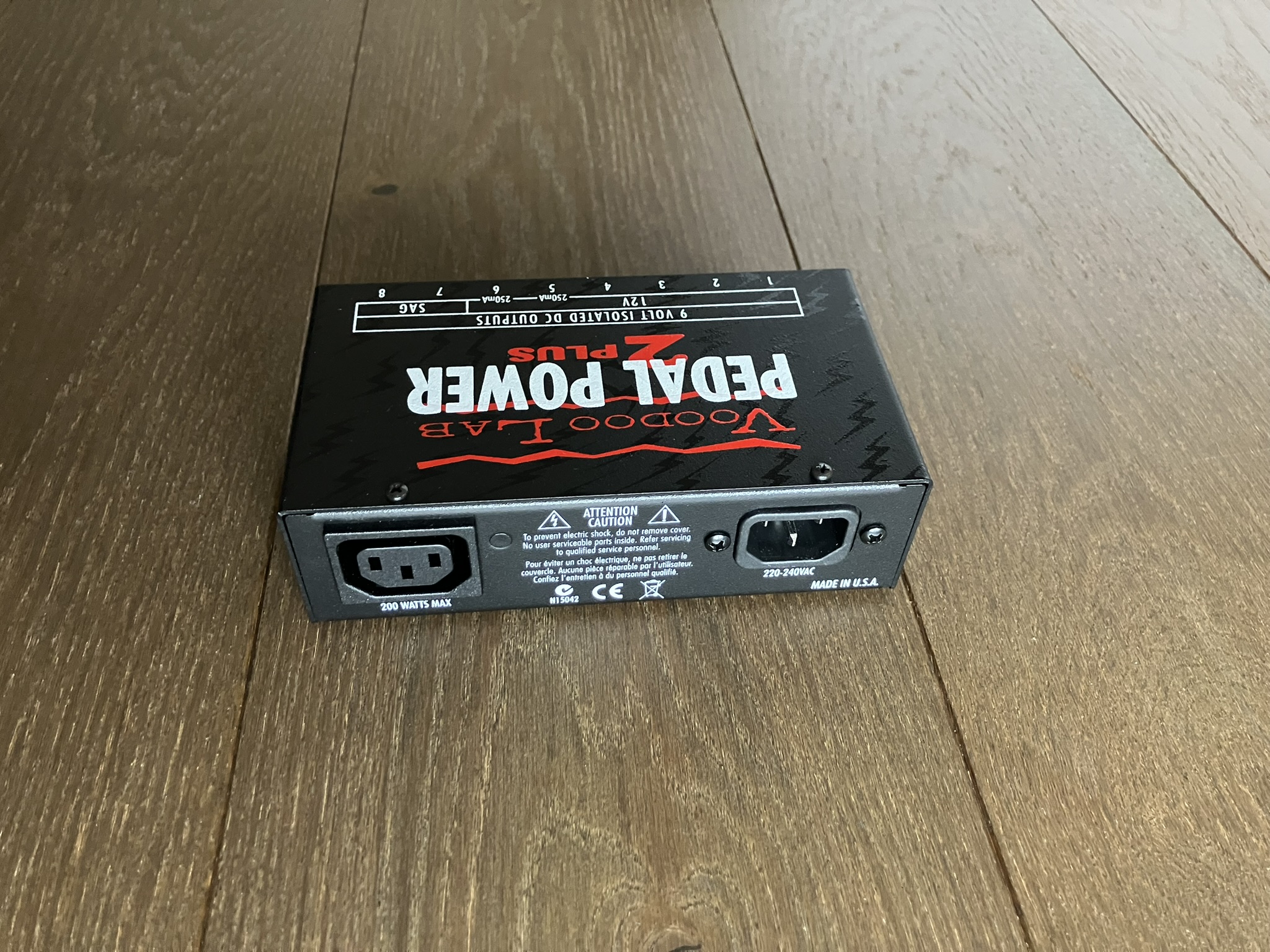

IEC connector:
120V 50/60Hz (North America model)
100V 60Hz (Japan model)
230V 50/60Hz (Europe/Australia model)

Model and input power are marked on the bottom of unit.

Output

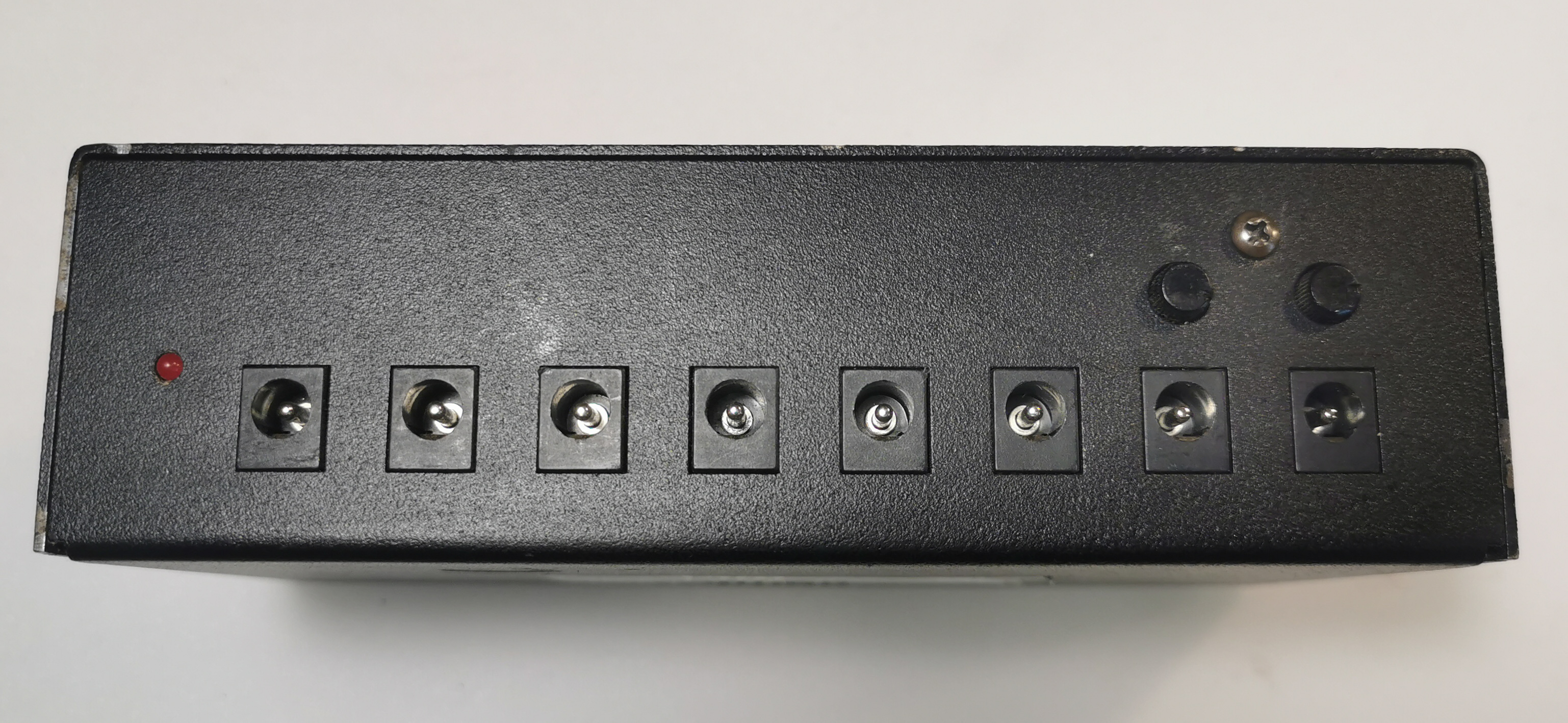

5.5x2.1mm barrel connectors - center negative
Short circuit protected

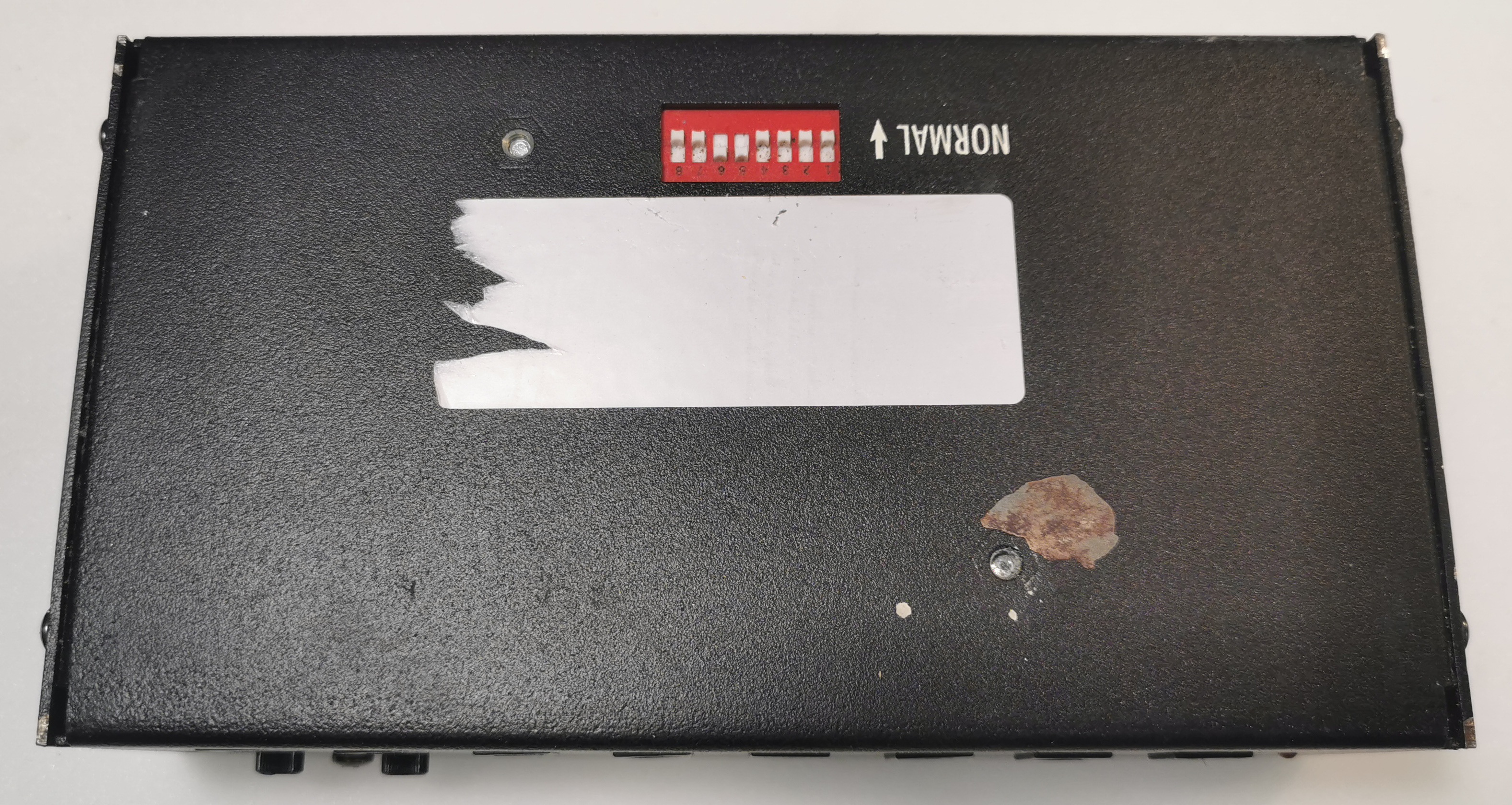

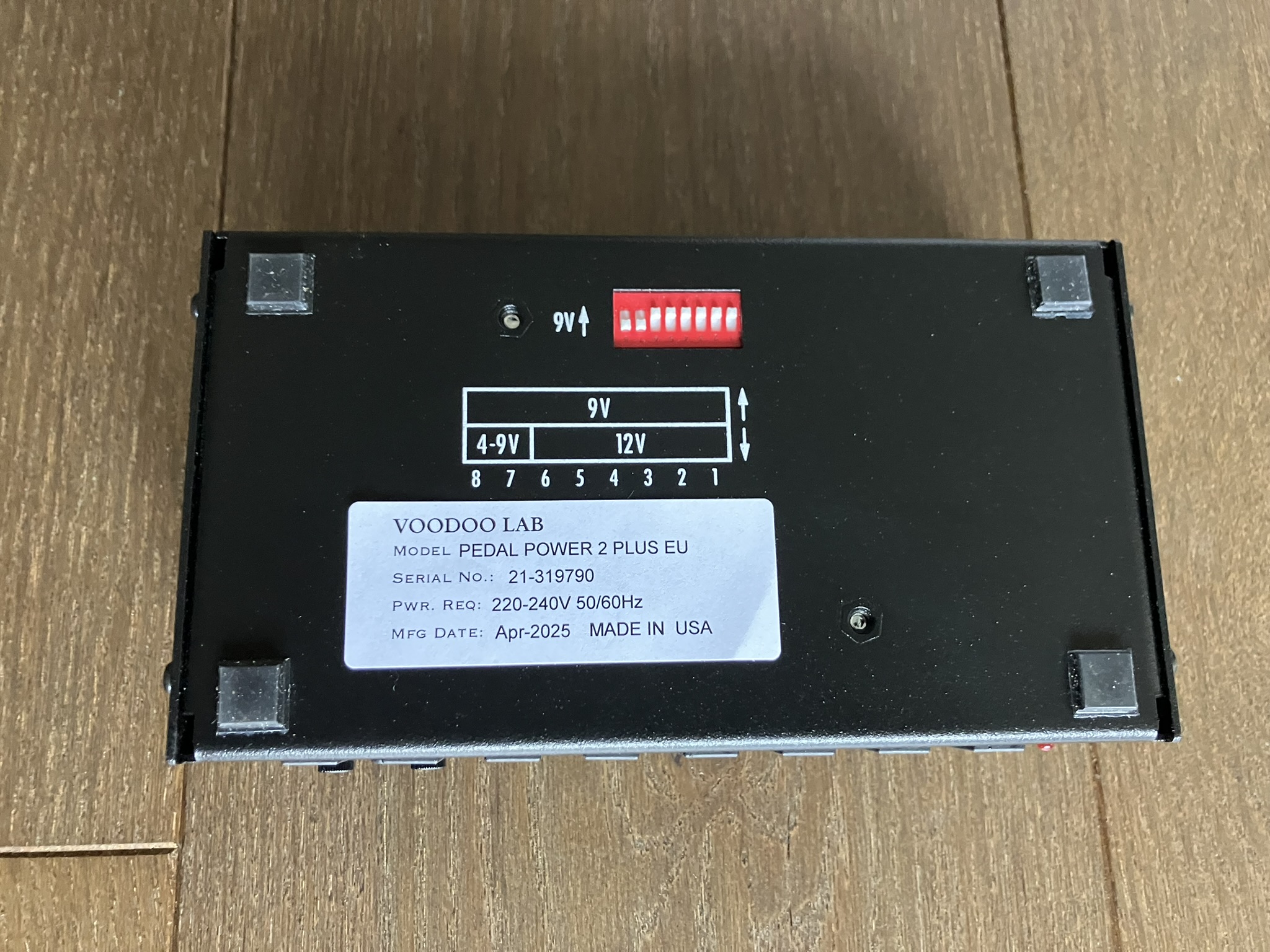

DIP Switch: NORMAL :
1-4 (ACA): 9V 100mA

5-6 (L6): 9V 250mA

7-8 (SAG): 9V 100mA

DIP Switch: ON:
1-4 (ACA): 12.3V 60mA

5-6 (L6): 14.5V / 12V (unregulated) 50mA / 200mA+

7-8 (SAG): Adjustable 4V - 9V 100mA

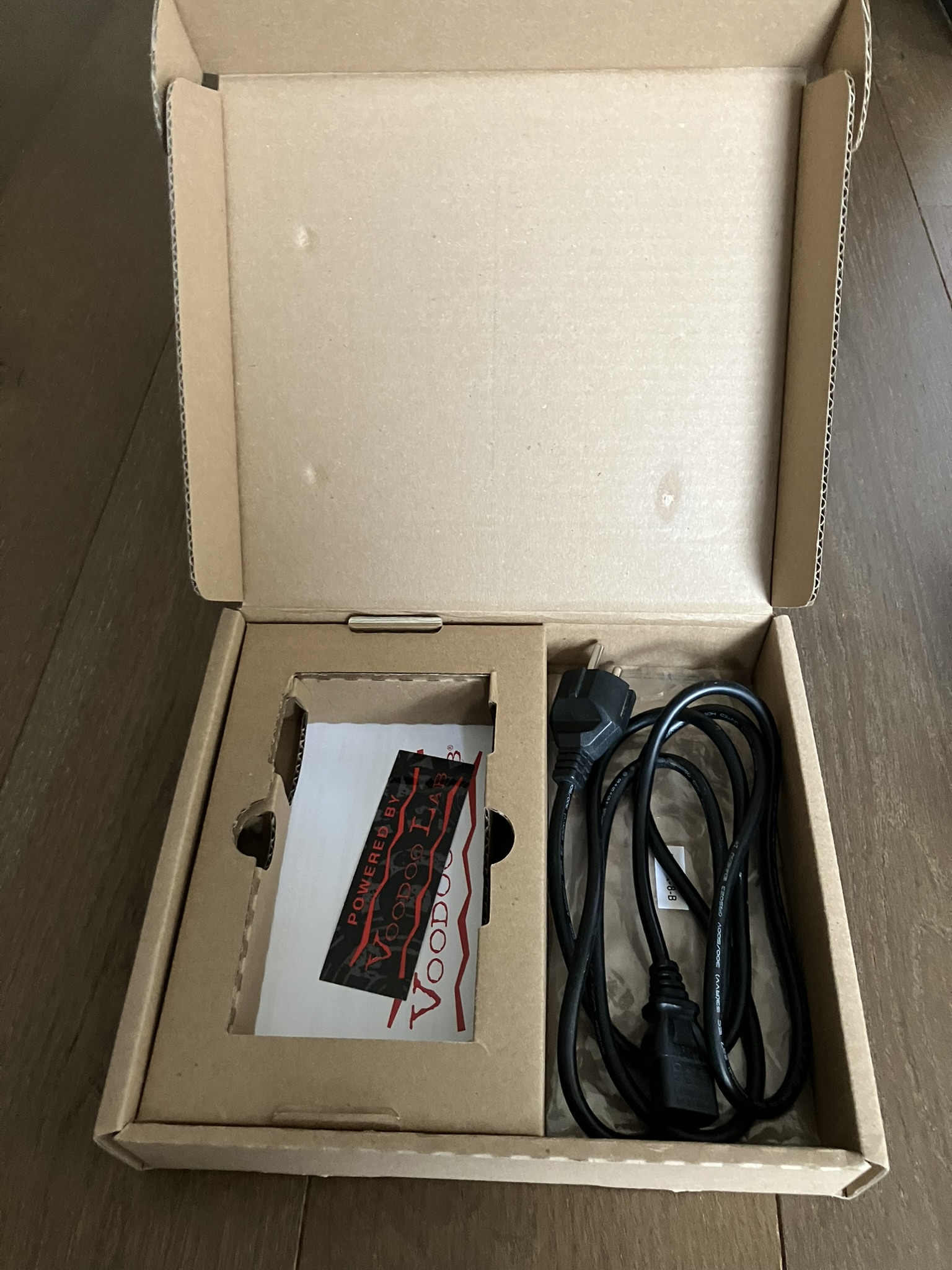

Included Cables:

5.5x2.1mm right angle barrel connectors (6)
5.5x2.1mm straight barrel connectors (2)
5.5x2.5mm “red” barrel for L6 (1)
3.5mm mini plug for vintage MXR or Electro-Harmonix (1)
9V battery snap for pedals without a power jack (1)

Physical:

6" wide x 3.4" deep x 1.8" tall (152 x 86 x 44 mm)
Weight: 2 lbs. (0.9 kg)

Special:

Toroidal power transformer
Rear Courtesy Auxiliary AC outlet, 200 watts max

Warranty:

5 years

Distribué par Filling Distribution
